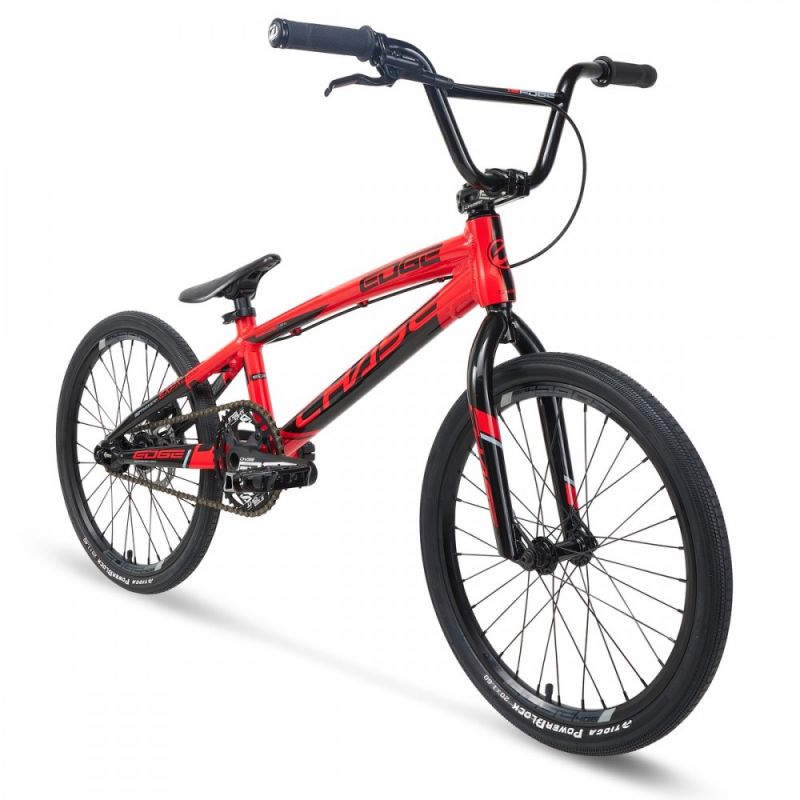

CHASE EDGE EXPERT XL 2025

The all new CHASE Edge is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

  • FRAME: Chase Edge Expert XL 20″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
  • FORK: Chase Edge Expert, Full Cr-mo, 1-1/8″ Steer Tube
  • STEM: Chase Edge 50mm
  • HANDLEBAR: Chase Edge 6.5″
  • HEADSET: Integrated Sealed Bearing
  • CHAINRING: Insight 41T 4 Bolts BCD 104mm
  • CRANKSET: Chase Edge 2 Pieces Alloy 170mm
  • HUBS: Chase Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
  • RIMS: Chase Edge 150 Double Wall 20″x1.50″, 32H Front and Rear
  • TIRES: Tioga PowerBlock 20″x1.60″ Front and 20″x1.40″ Rear
  • BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
  • SEAT: Chase Edge Pro Pivotal
  • RECOMMENDED SIZE: 1m44 – 1m55

WEIGHT: 8.85Kg without pedal

SIZES CHART

More details

799,99 € Tax incl.

Recommended retail price : 799,99 € TTC

CHASE

Availability:

Buy in local shop

Reference Bar Code Colors Unit price Avail. Quantity
CHACOBI236 764333099925 Black-grey
799,99 €
CHACOBI237 CHACOBI237 Red-Black
799,99 €

SPECIFICATIONS :

FRAME
 CHASE Edge Expert XL 20" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system
FORK
 CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades
HEADSET
 Integrated IS 42/42 1-1/8", Sealed Bearing
HANDLEBAR
 Chase Edge Cr-mo 6.5" Rise, 26" Wide, 8° Back Sweep & 2° Up Sweep
GRIPS
 INSIGHT C.O.G.S 130mm Lock-on
STEM
 CHASE Edge 50mm 6061 T6 Alloy
BB
 Euro External BSA 24mm Sealed Bearing
CHAINRING
 Insight 41 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK
 Chase Edge 2 Pieces 24mm Axle Crank 170mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts
PEDAL
 Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN
 KMC Z1  narrow 1/2"x3/32"
COG
 16T steel
FRONT HUB
 Mini 32H, Sealed Bearing, 10mm Axle, M6 bolts
REAR HUB
 Pro ISO 32H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES
 Front 181mm, Rear 173/174mm, 14 Gauge, Steel
NIPPLES
 16mm, 14 Gauge, Brass
FRONT RIM
 CHASE Edge 150 Double Wall 32H 20"x1.50" Schrader Valve
REAR RIM
 CHASE Edge 150 Double Wall 32H 20"x1.50" Schrader Valve
FRONT TIRE
 TIOGA PowerBlock 20"x1.60" Wire Bead
REAR TIRE
 TIOGA PowerBlock 24"x1.40" Wire Bead
TUBES
 20''x1.5"-1.75" Schrader Valve
BRAKE LEVER
 Shimano Disc Brake BL-MT200(R) Hydraulic
BRAKE CALIPER
 Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE
 Pro Pivotal
SEAT POST
 Pivotal 27.2x250mm Alloy
SEAT CLAMP
 CHASE Edge QR Alloy 31.8mm
CHAIN TENSIONNER
 Integrated Built-In With New Lock Disc Adaptor


GEOMETRIES :

Sizes TT CS min LR HA SA HT SPL BBH WB Wheels
Micro 16.25"
412.75 mm		 10.85"
275.6 mm		 1.8"
46 mm		 71° 69° 4"
100 mm		 8"
203.5 mm		 10.25"
254 mm		 732 mm 18x1"
Mini 17.25"
438.15 mm		 12.25"
312 mm		 1.8"
46 mm		 72° 70° 4.33"
110 mm		 8.8"
225 mm		 10.6"
269.2 mm		 800 mm 20x1-1/8"
Junior 18.75"
476.25 mm		 12.5"
317.5 mm		 1.8"
46 mm		 73° 72° 4.33"
110 mm		 8.8"
225 mm		 10.6"
269.2 mm		 859.9 mm 20x1-1/8"
Expert 19.75"
501.65 mm		 13"
330.2 mm		 1.8"
46 mm		 73° 72° 4.33"
110 mm		 8.8"
225 mm		 11"
279.4 mm		 883.8 mm 20x1-3/8"
Expert XL 20"
508 mm		 13.5"
353 mm		 1.8"
46 mm		 73° 72° 4.7"
120 mm		 8.8"
225 mm		 11.5"
292.1 mm		 903 mm 20x1.50"
Pro 20.5"
520.7 mm		 14"
355.6 mm		 1.8"
46 mm		 74° 72° 4.7"
120 mm		 9.4"
238 mm		 11"
279.4 mm		 938 mm 20x1.75"
Pro XL 21"
533.4 mm		 14.15"
359.4 mm		 1.8"
46 mm		 74° 72° 4.7"
120 mm		 9.3"
238 mm		 11.5"
292.1 mm		 945.2 mm 20x1.75"
Pro XXL 21.5"
546.1 mm		 14.15"
359.4 mm		 1.8"
46 mm		 74° 72° 4.7"
120 mm		 9.3"
238 mm		 11.5"
292.1 mm		 969.5 mm 20x1.75"
Cruiser 21.5"
546.1 mm		 14.5"
368.3 mm		 1.8"
46 mm		 74° 71° 4.7"
120 mm		 10.6"
270 mm		 12"
304.8 mm		 964.5 mm 24x1.75"


Complete Bike specs are subject to change throughout the year due to parts upgrades or parts shortages and changes that are made out through our production cycle to improve the quality of the complete bikes. Photo & listed Specs may slightly differer due to this.
