ELEVN post mount Kit 120/10mm w/o v-brake covers bolts

ELEVN offers a kit specially designed for pilots wishing to adapt a Post Mount mechanical or hydraulic rear disc brake on their CHASE RSP 5.0 and 4.0 frames, as well as CHASE Element and Edge bikes equipped with disc brakes.

COMPATIBILITY:
• CHASE RSP 5.0 and 4.0 Frames
• CHASE Element 2020/21/22/23 bikes
• CHASE Edge 2022/23 bikes

FEATURES :
• CNC machined 6061-T6 Aluminum adapter
• Brake Caliper Standard: Post Mount
• Rear hub axle diameter: 10mm only
• Optimized for 120mm disc diameter or 140mm disc diameter using Post Mount 20mm riser

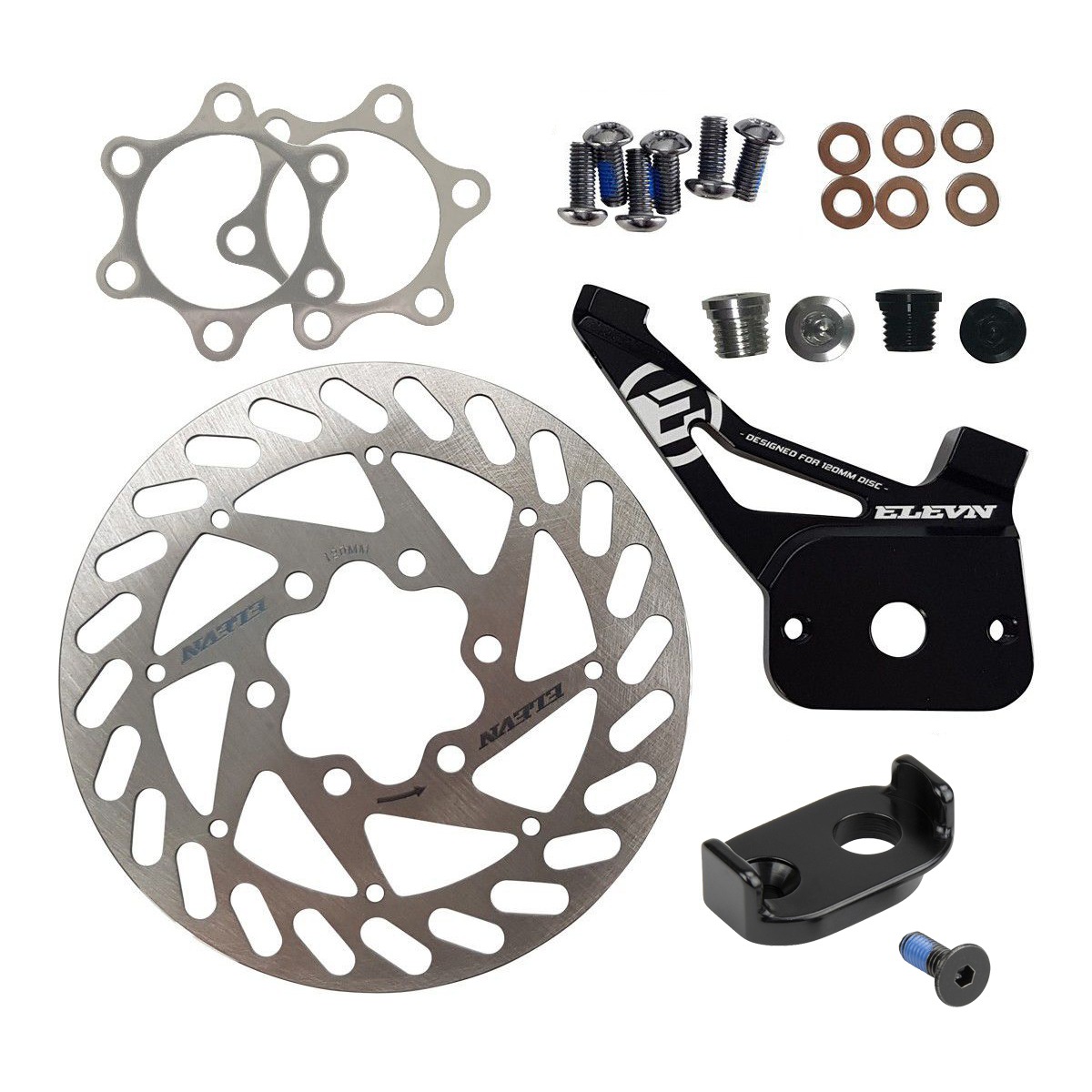

INCLUDING :
• Post Mount caliper adapter for 10mm axle
• 120mm Disc rotor diameter ISO mount system 6 screws
• Chain tensioner with anti-rotation system
• 2X Adapter bolts
• 6X Disc bolts
• 2X Disc spacers (thickness 0.5mm - only needed depending on type of rear disc ready hub used)
• 2X V-Brake covers bolts


Requires a rear hub with ISO 6 bolt mounting but also works on Center Lock hubs with the Center Lock / ISO adapter.
Sold without disc braking system
