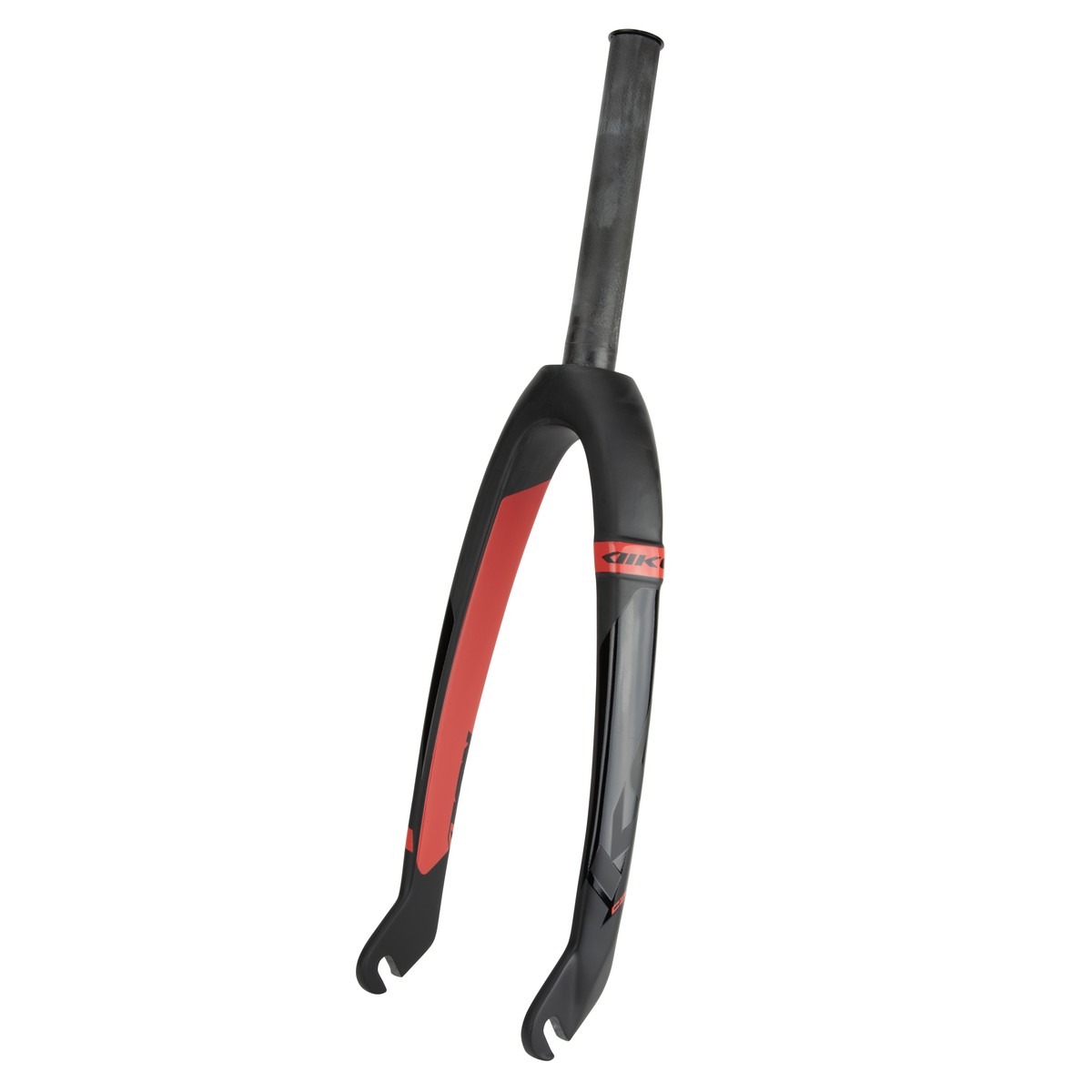

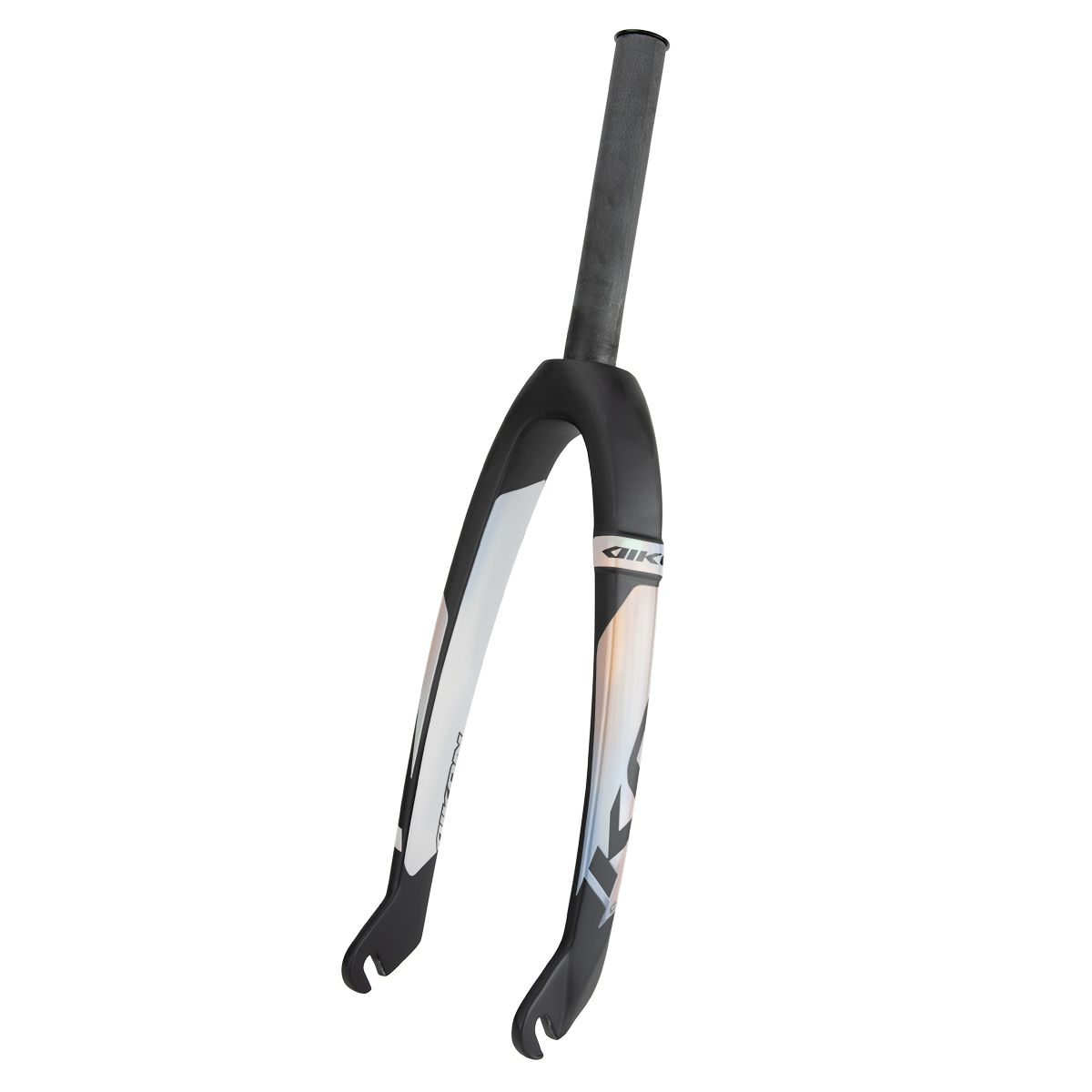

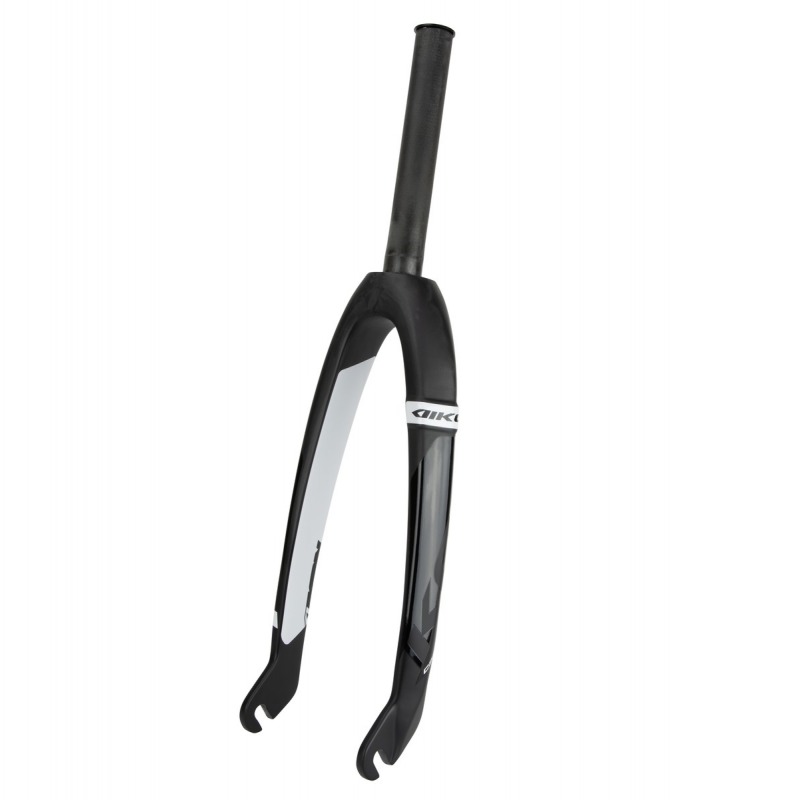

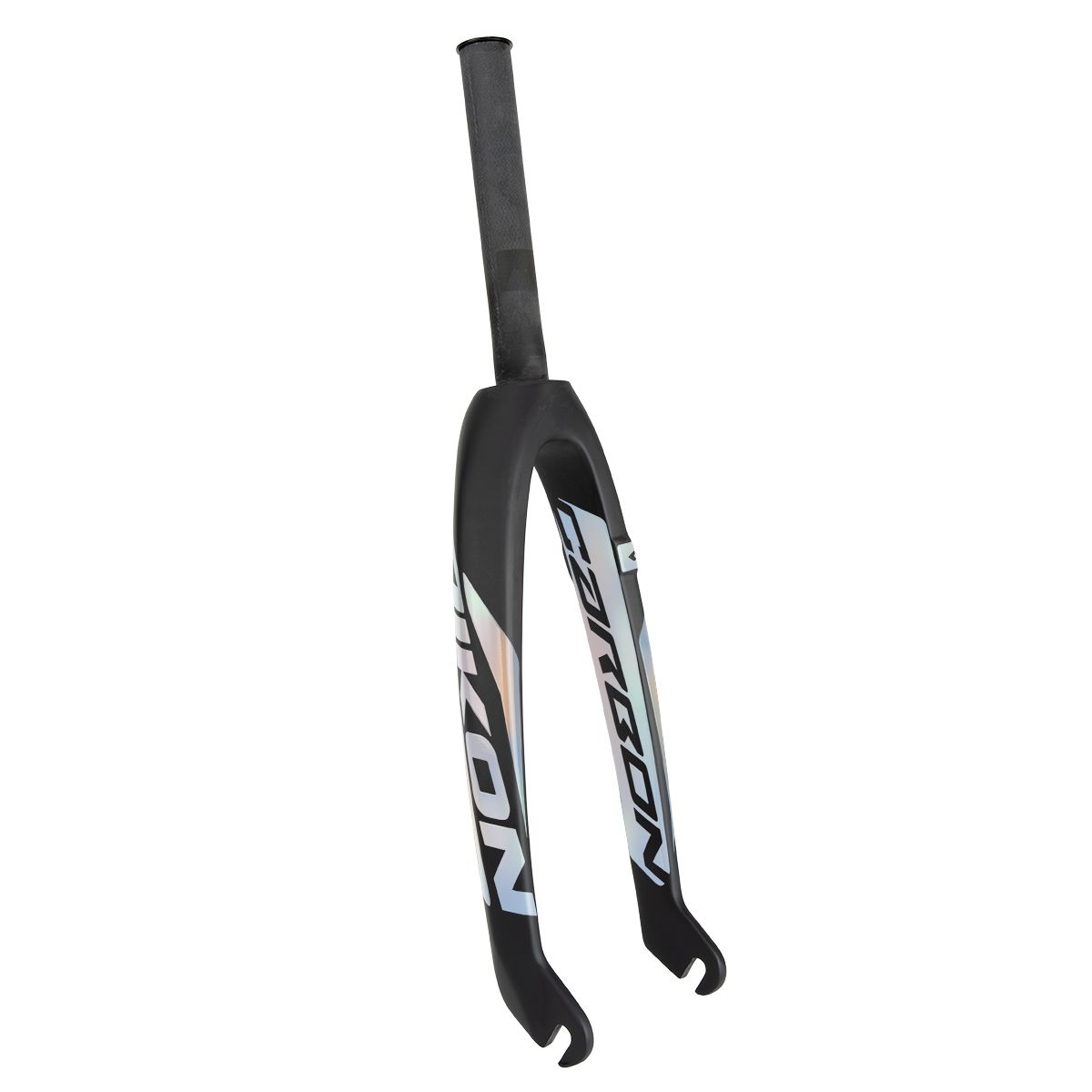

IKON Mini/Junior 10mm Mini/Junior Fork

The IKON Mini/Junior carbon fork is designed for young BMX riders who want to benefit from all the aerodynamic advantages of the Pro version thanks to a small rear wing under the head tube and its profiled arms. Constructed from Toray UD carbon, it features a Toray UD carbon reinforced steerer and dropouts. It is available in 1" steerer for young riders riding on Mini or Junior 20" frames.

FEATURES :

• 20" monocoque UD carbon fork
• 1'' monocoque UD carbon steerer
• Reinforced monocoque UD carbon dropouts
• Axle: 10mm
• Offset: 28mm
• Steered tube height: 165mm
• Axle to crown : 305mm
• Weight: 304g (without top cap)
• Rider weight limit: 45kg
• Maximum axle tightening torque : 6 N.m
• Sold with top cap

COMPATIBILITY :

• 20" frames with 1" headset tube
• 20" wheels with 10mm axle
