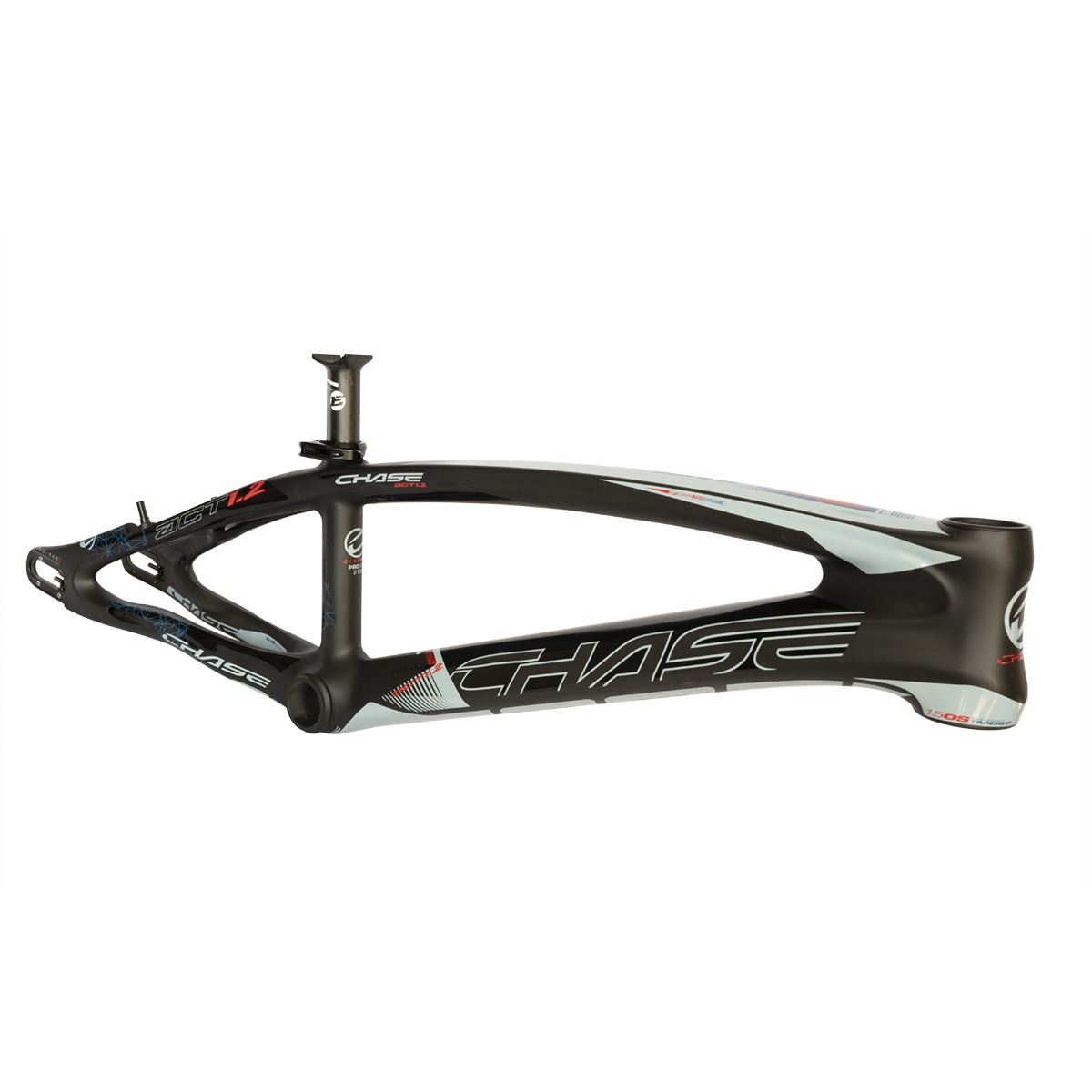

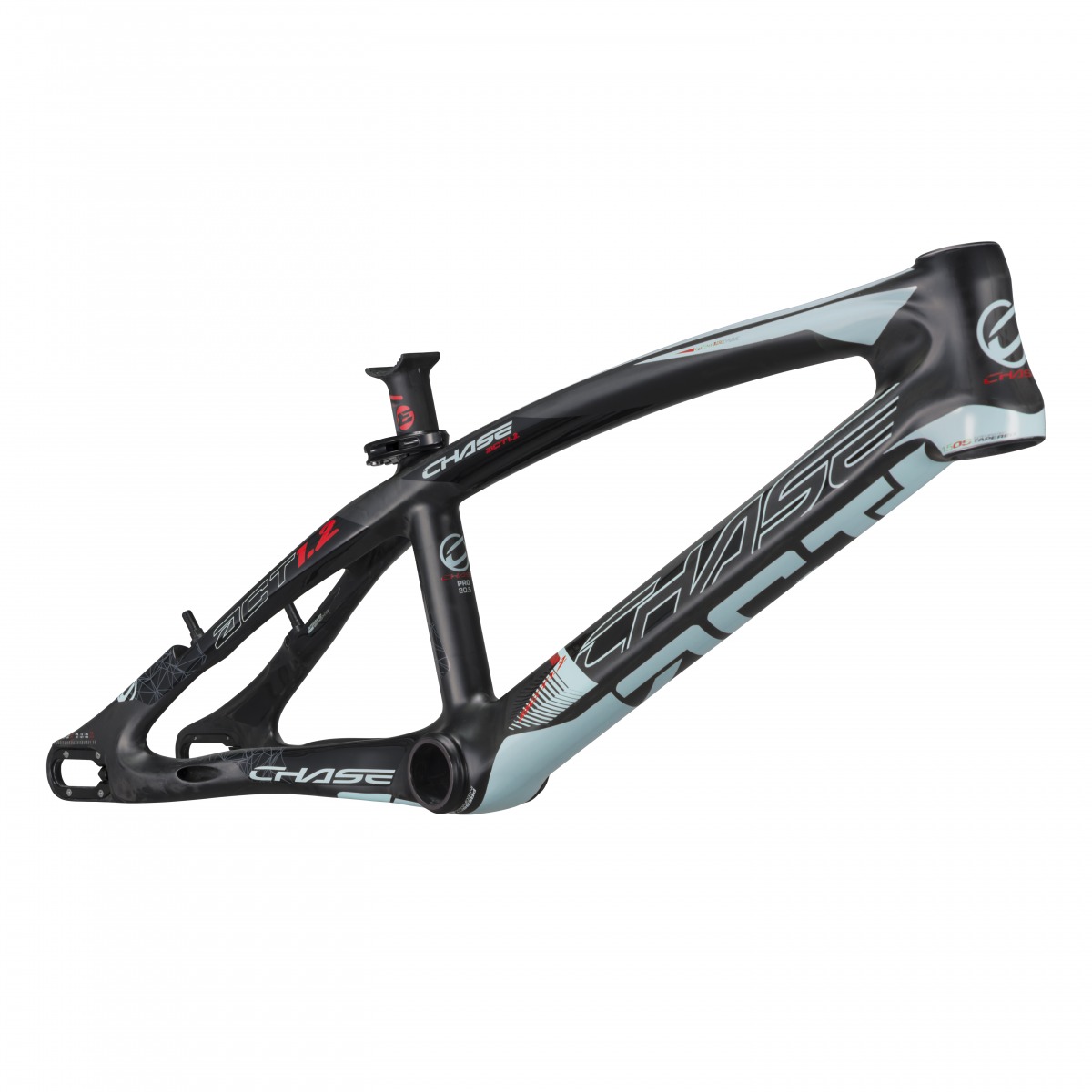

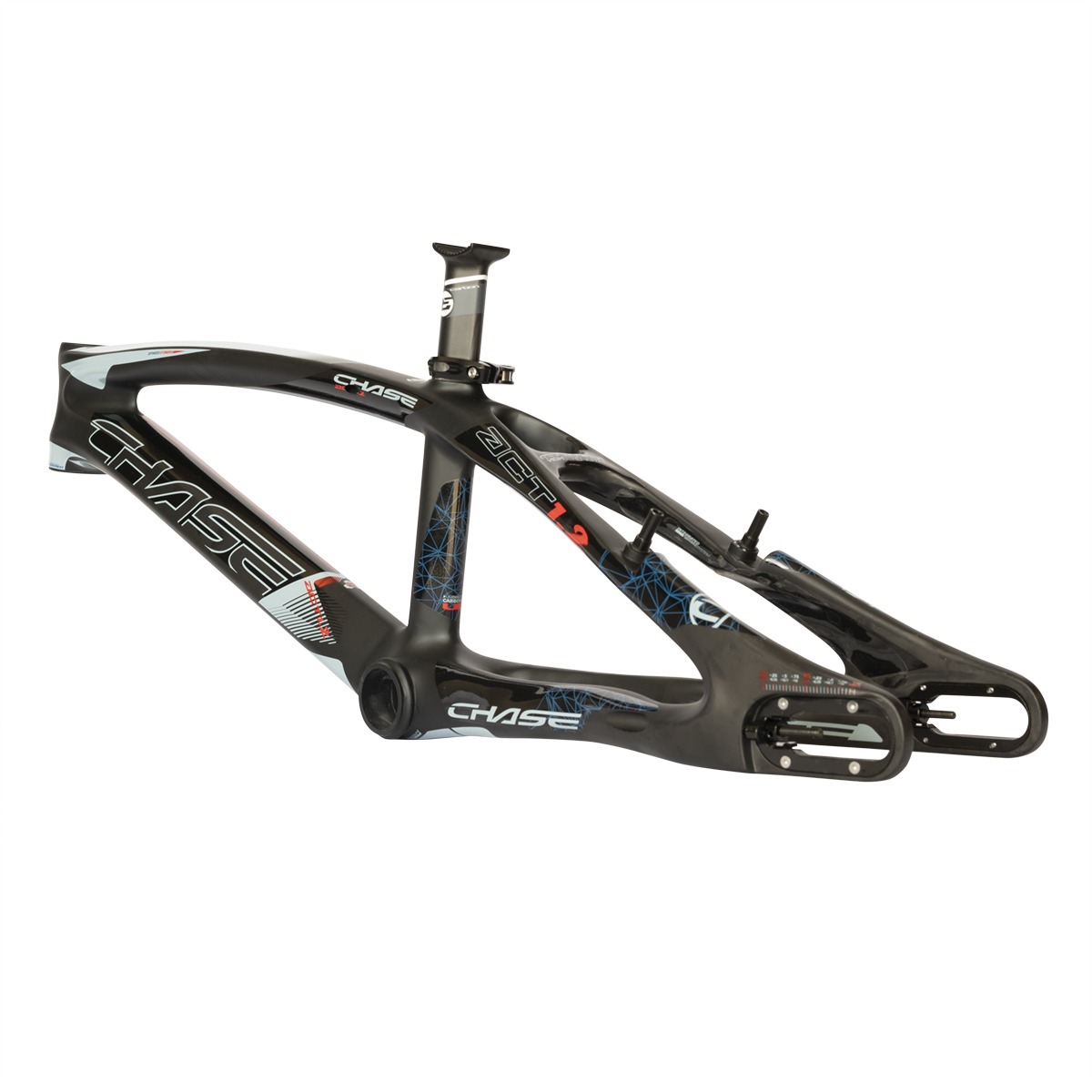

CHASE ACT 1.2 frame black/slate

Winning UCI World Cup Championships & the USA BMX #1 Pro Title has given credibility to the Chase ACT line of Carbon racing frames. Over the past 2 years, the ACT frame has won more UCI and USA BMX Elite Mens Pro races than any other frame, but we don’t rest on past results. Over the past year, we have been hard at work trying to do the impossible, make the ACT 1.2 even better. After tweaking the design, building samples, testing, modifying, testing some more, we feel we have been able to do just that! Connor Fields and Joris Daudet had been riding the ACT 1.2 for over 10 months before we felt it was truly improved and ready for sale.

A few key improvements include: Adjusting the Chain Clearance for larger gear ratios, improving the clearance for more styles of disc brake calibers to be used with the optional Elevn Disc adapter, and designing a new look of the ACT 1.2, with a Matte Finish and Gloss Graphics.

The ACT 1.2 is designed with the highest quality Carbon Fiber know as UD (uni-direction) carbon fiber. UD has one of the highest tensile strength of Carbon Fiber and is at this time the ultimate type of Carbon Fiber to be used for a BMX frame. Tensile strength is the amount of force needed to cause the fibers to breakdown, while the tensile modulus is a measure of the carbon fiber’s stiffness. We exclusively use the UD Carbon when building the Chase ACT 1.2 Frame to make sure the frames are of the highest quality available. Its not only stronger than most strands of Carbon Fiber, but it is also lighter, but this all comes with a higher cost. But when we designed the ACT frames, we were worried about performance and quality first, price was an afterthought.

Features Include: Aero Seat Post and Seat Clamp system, Tapered 1-1/8″-1.5″ tapered head, Internal Brake cable routing, Press Fit BB86 Bottom Bracket, 20mm Plated enclosed plated dropouts with integrated chain tensioner system with included 10mm Plate, and 2 Chain Tensioers systems - Internal and External to give you the needed adjusted to let you utilize the entire length of the rear dropout, when using the optional Elevn Disc Brake Adapter.

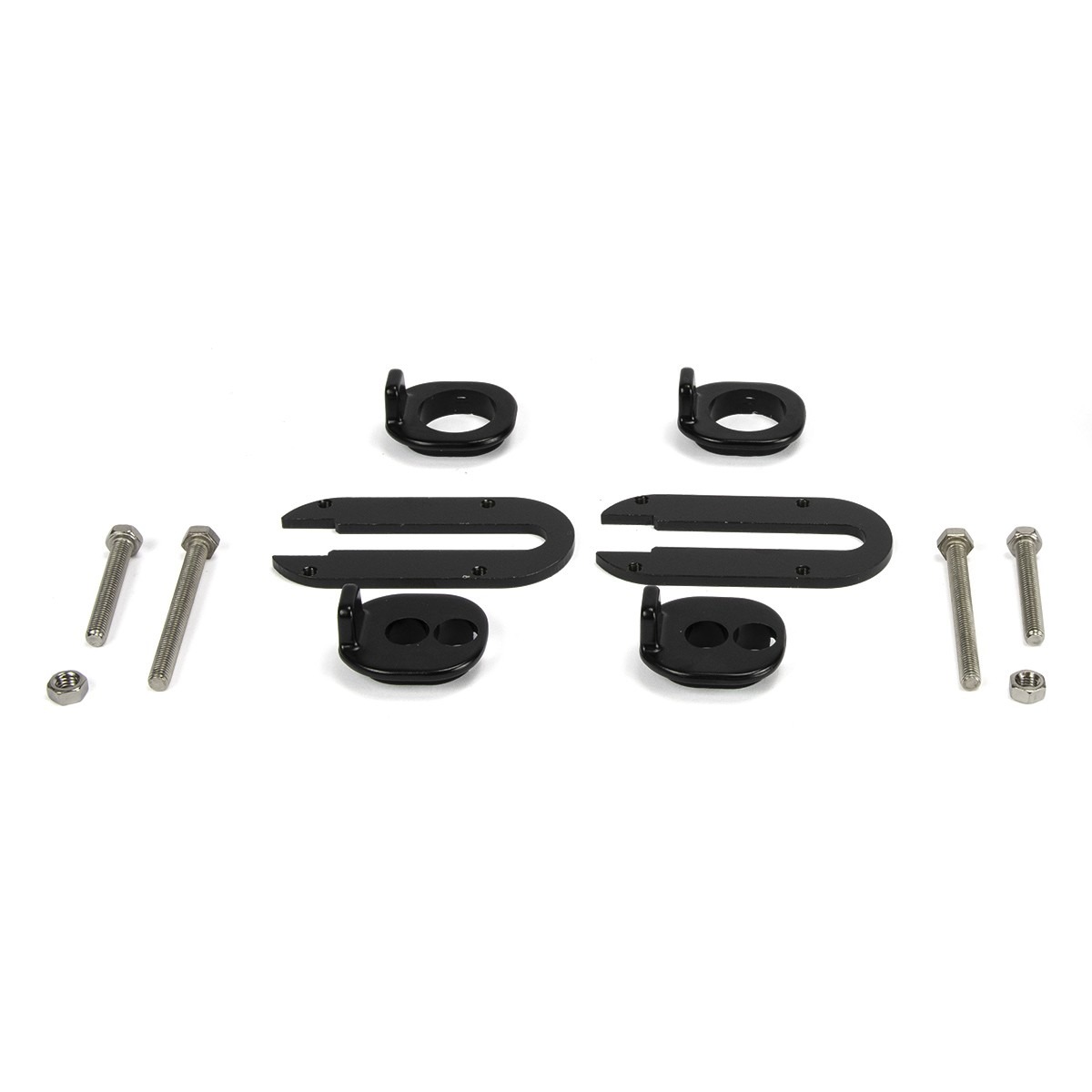

Delivered with ELEVN Monocoque Carbon Aero Seat Post (Length : 110mm, Weight : 60 g /  2.12 oz), has a Integrated Quick Release Seat Clamp, and 2 sets of Chain Tensioner 20mm and 10mm (Weight : 32 g) , letting you choose the type of rear hub to use with the frame.

GEOMETRIES :

weights are without seat clamp and chain tensioner

Please note:
Brake fluid on paint that is not silicone-based can act like a paint thinner and eat away at the coating of your paint, causing it to peel.
Due to different types of paints/decals/materials used for BMX parts, do not let the Brake Fluid touch any part of the bike, as there can be significant self infliced damage due to this.
