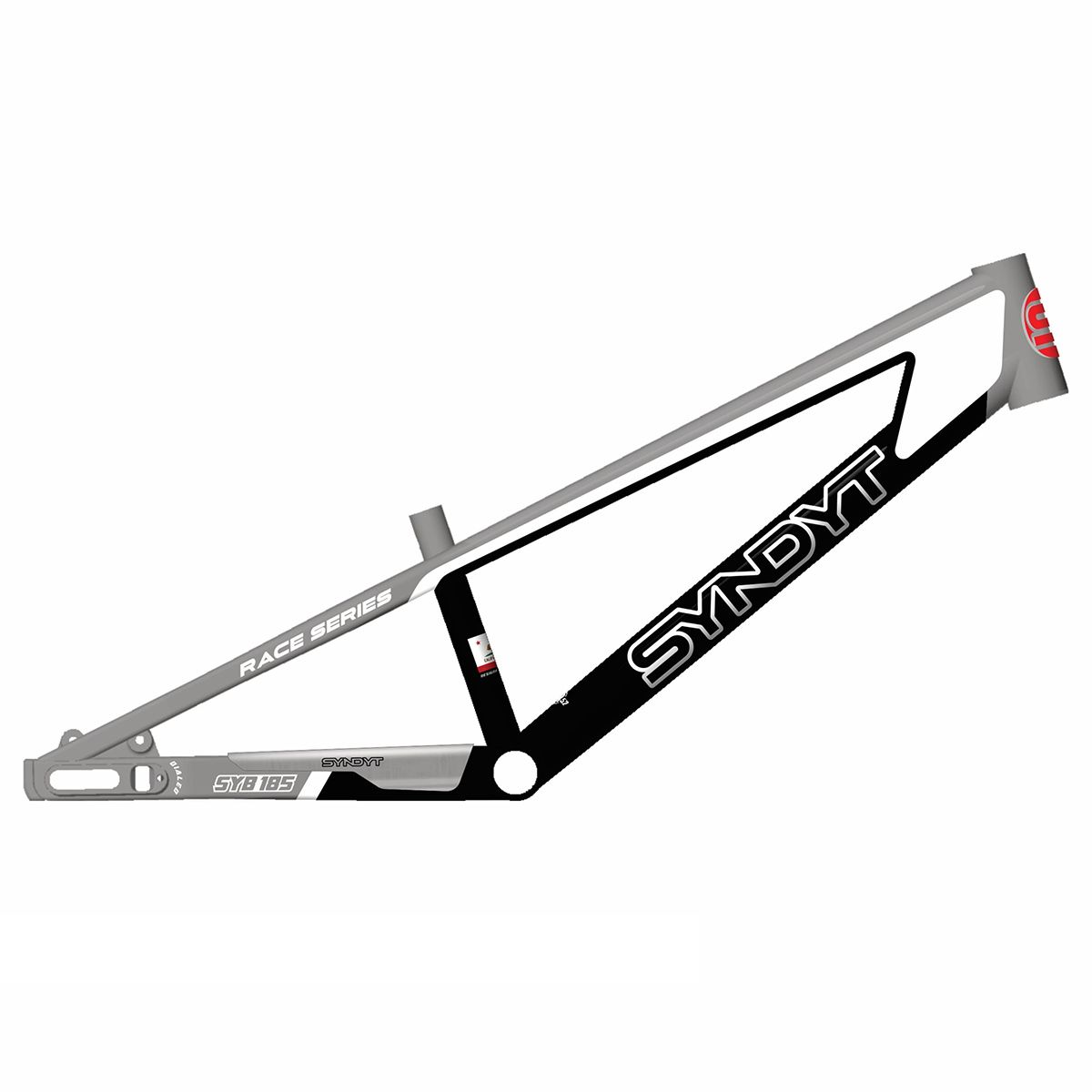

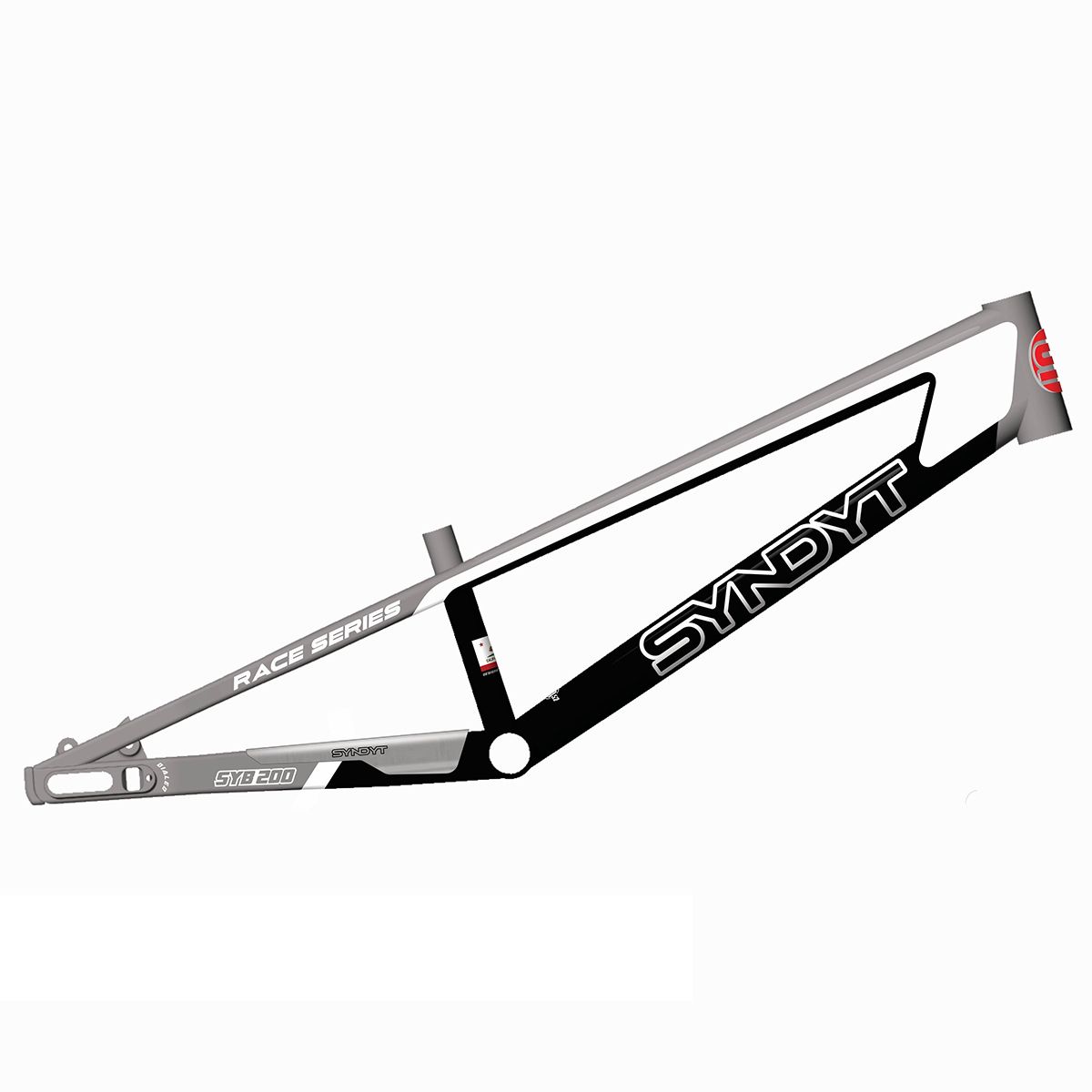

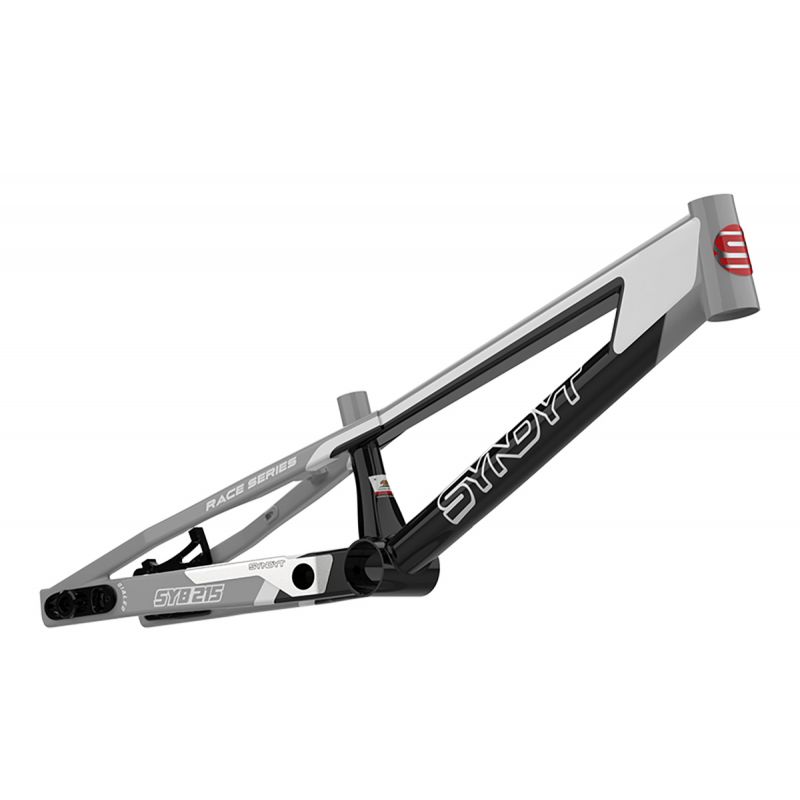

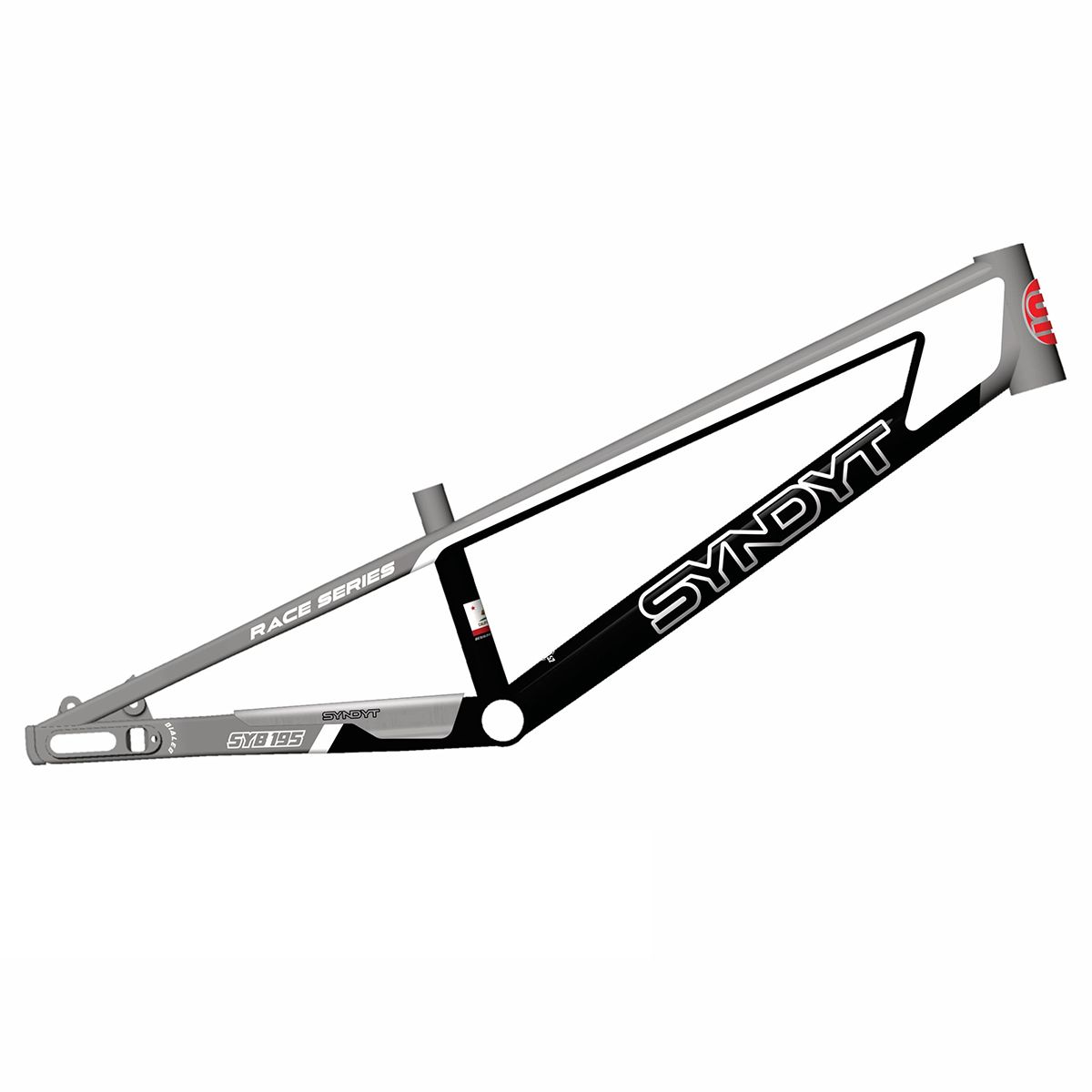

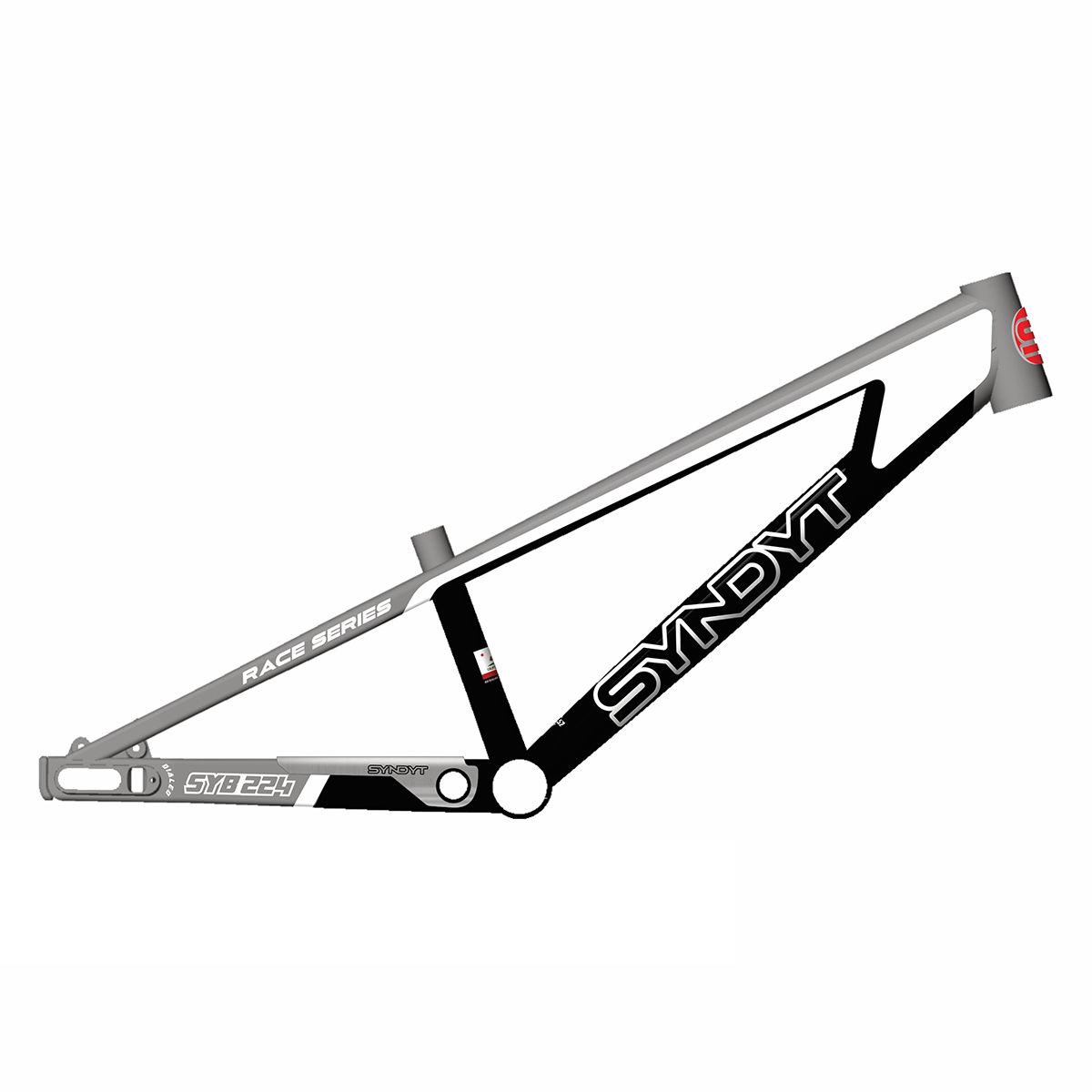

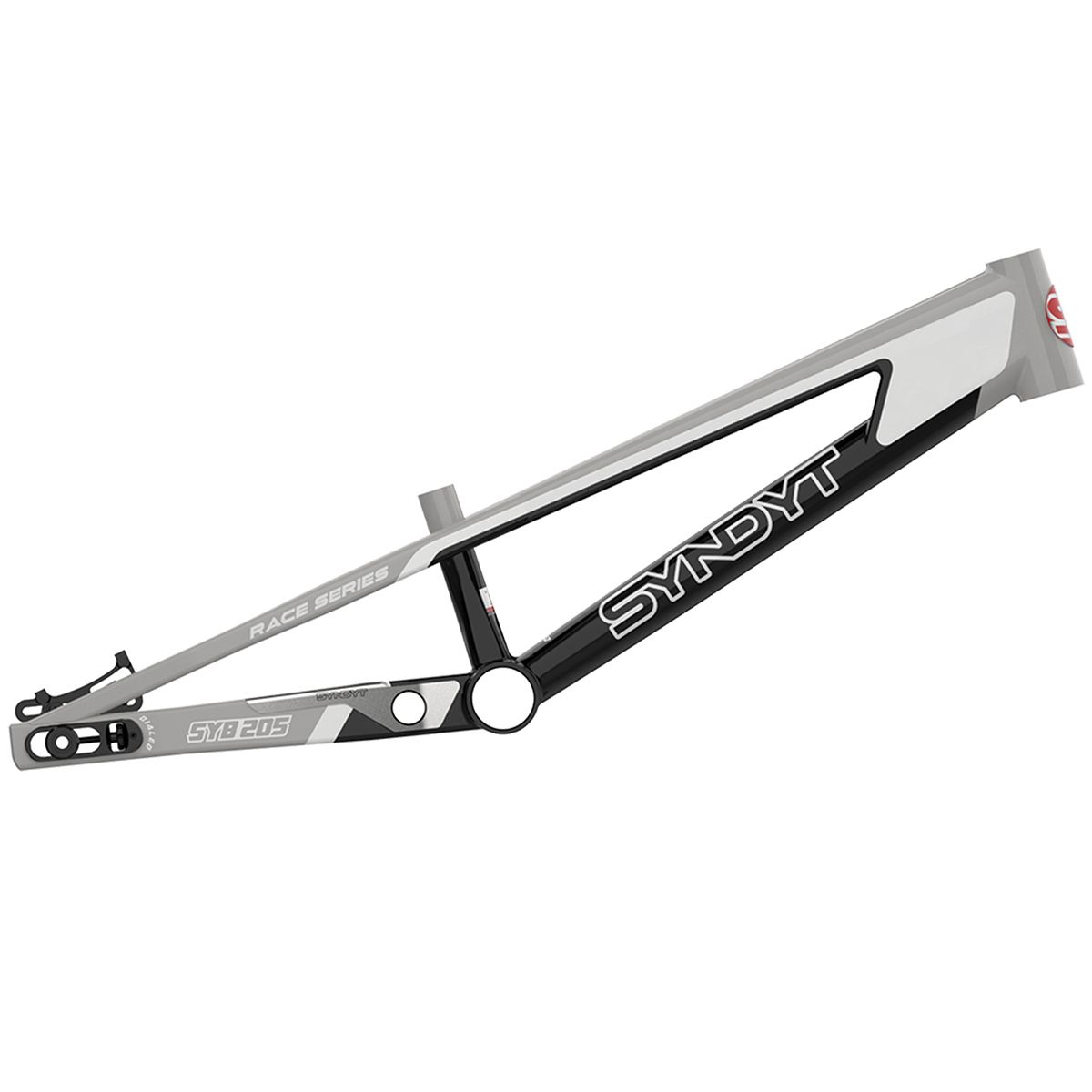

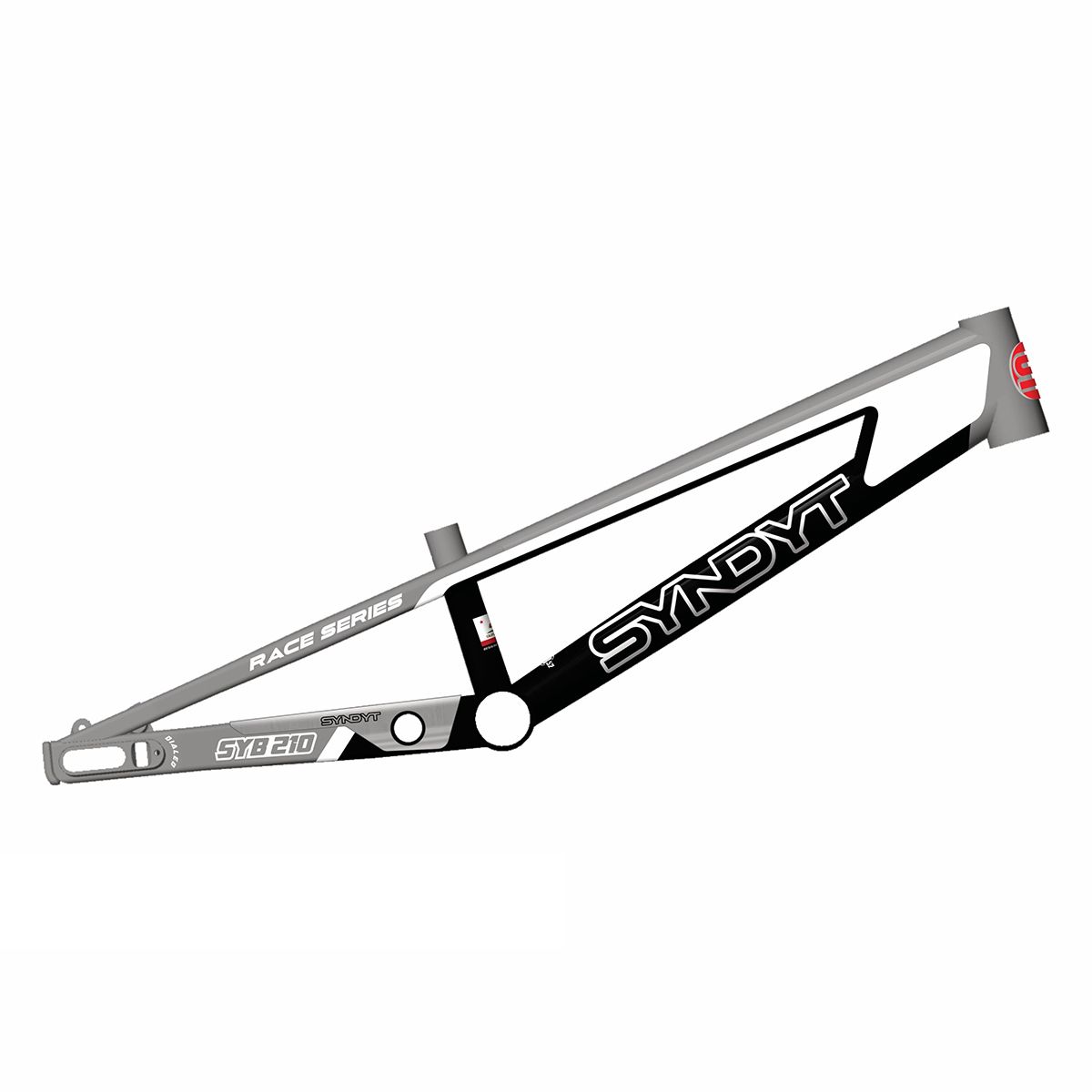

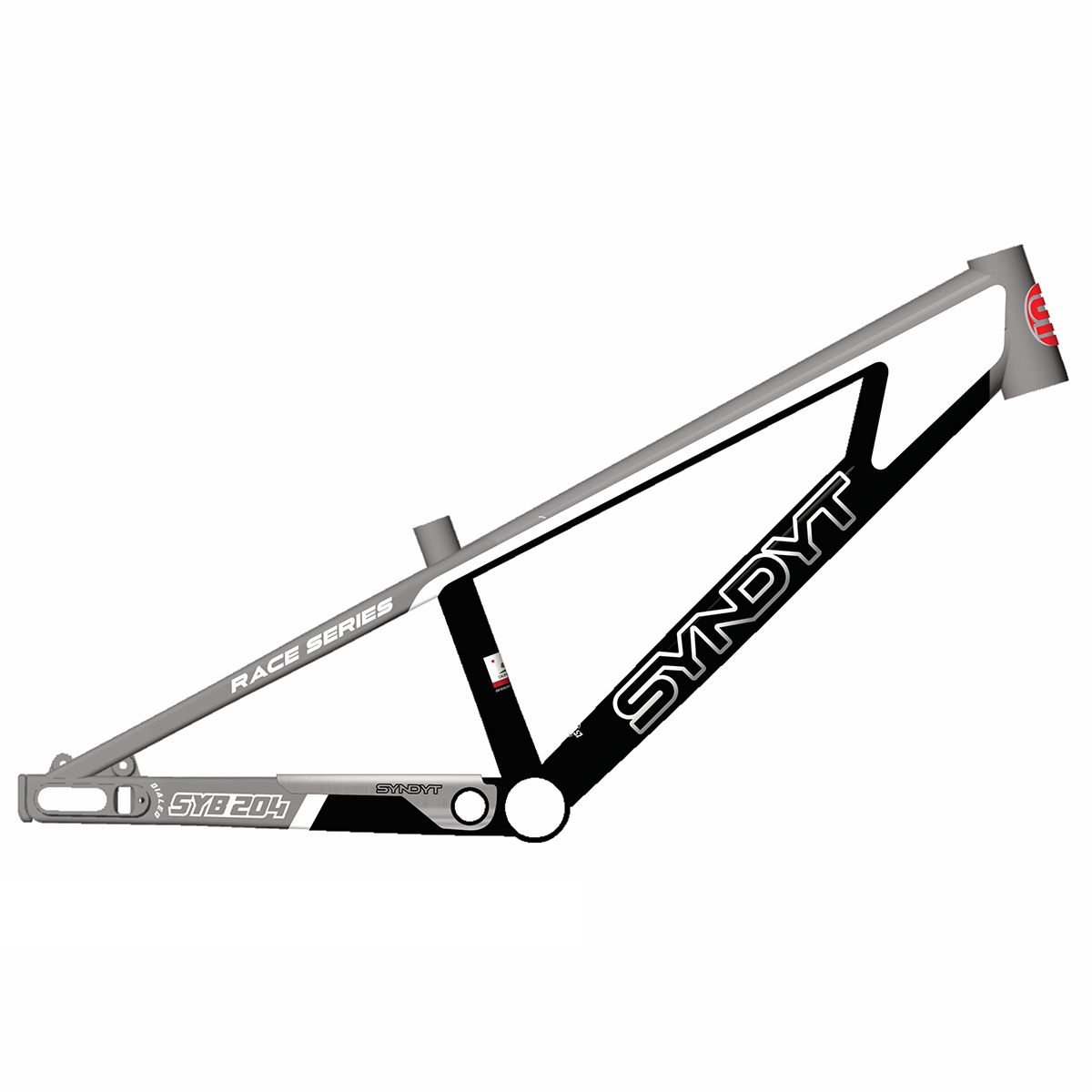

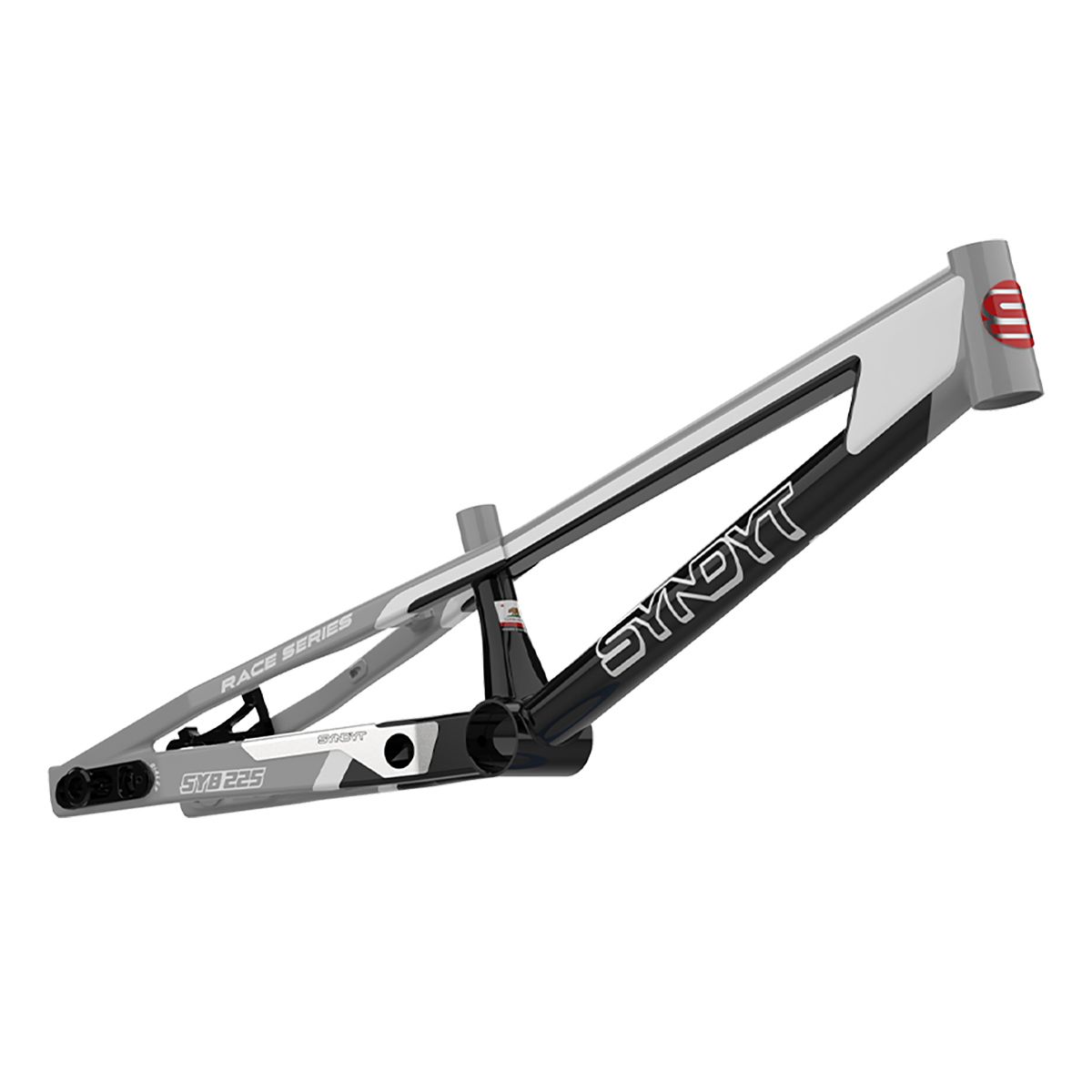

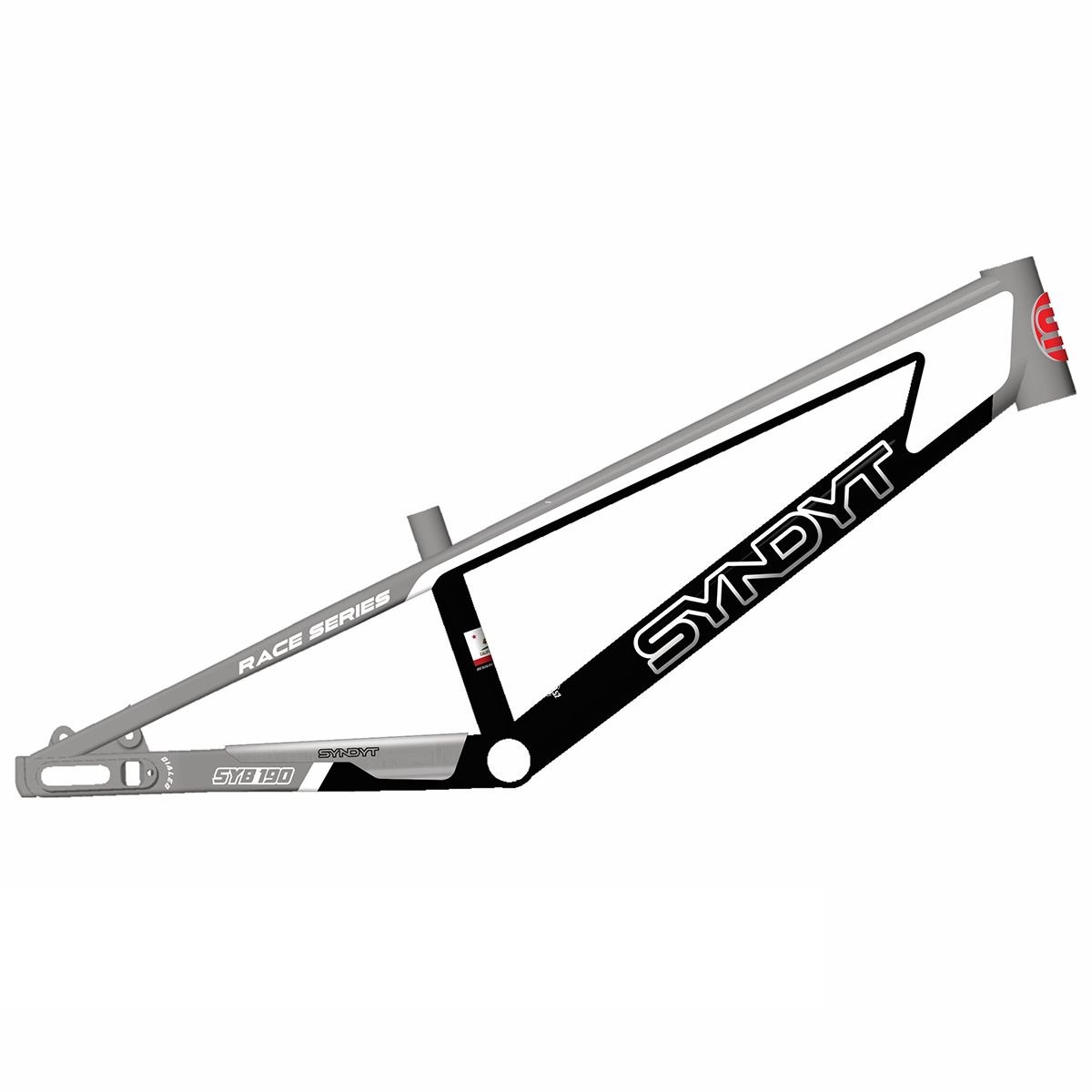

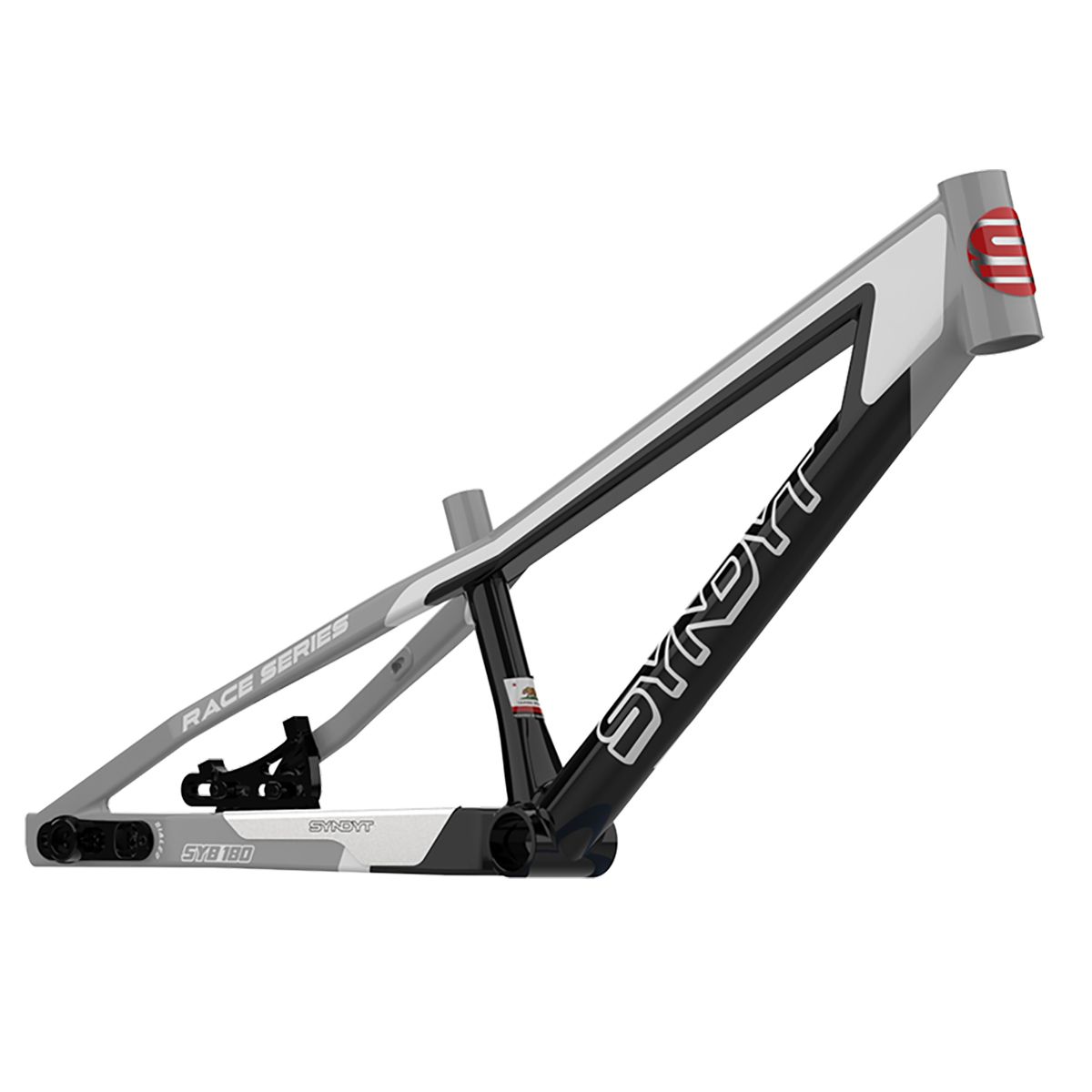

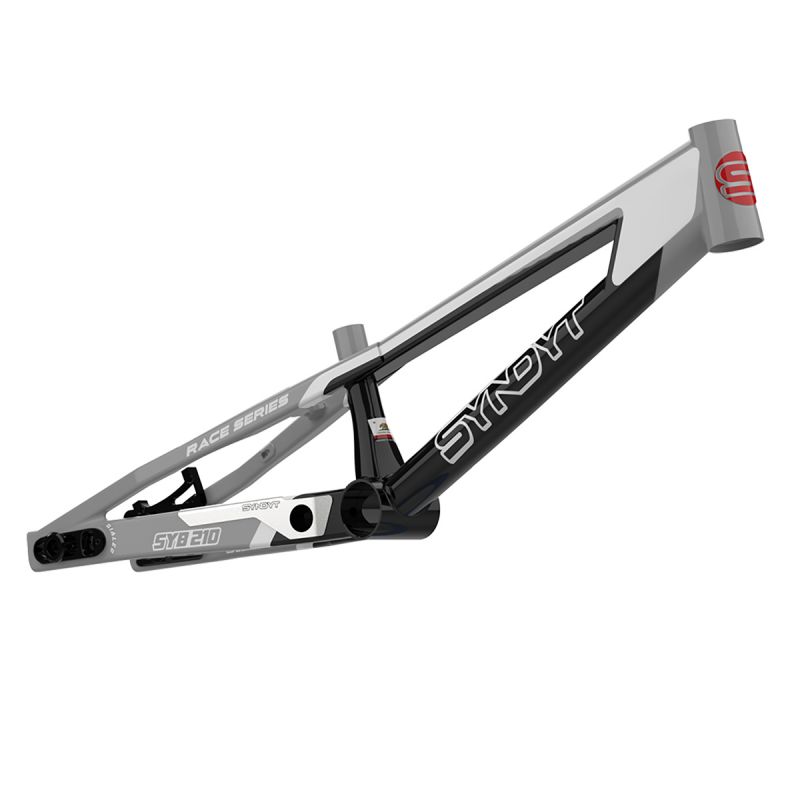

SYNDYT SYB FRAME GREY

SYB BMX Racing frames, a revolutionary evolution in BMX frame design. Made from premium hand-crafted 6061 alloy, these frames embody the perfect balance of durability, precision, lightweight and unmatched ride quality. Using cutting-edge hydroforming technology and featuring triple-butted tubing, these frames provide optimum power transfer and responsiveness, enhancing your overall riding experience.

FEATURES:

  • 6061-T6 Aluminum Frame
  • Triple Butted Hydroformed Tubes

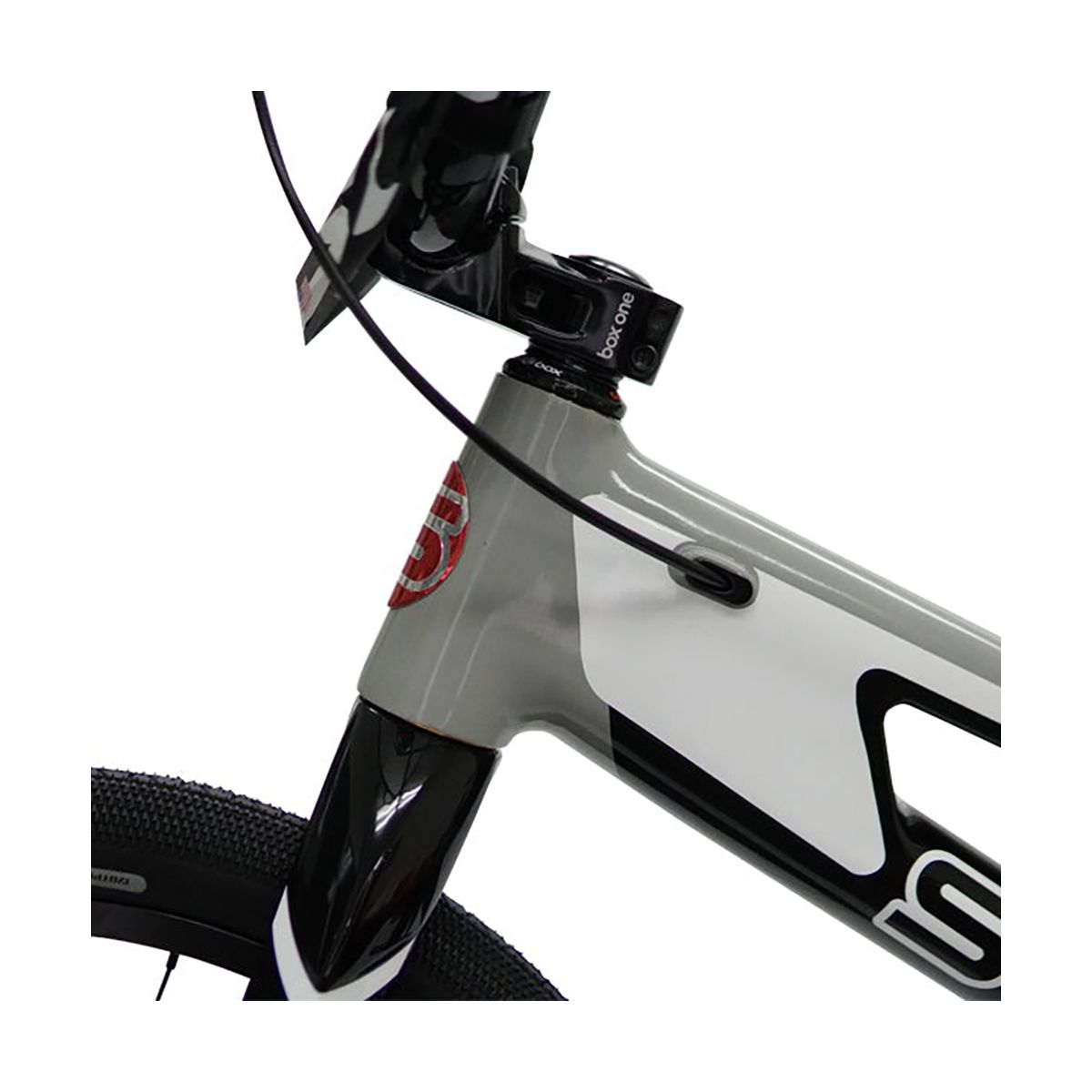

  • Tapered Head Tube
  • Integrated Hydraulic Brake Dropouts
  • Internal Cable Routing
  • Integrated Chain Tensioners with 38mm of Adjustment
  • 10 and 15mm Axle Adapters
  • Supplied with Integrated Headset
  • Weight : 1.83 Kg (Pro XL)

From Mini to Expert XL

  • Integrated Head Tube IS 38/42
  • Euro BSA 68x73mm Bottom Bracket
  • Compatible with 22.2mm Seat Post and 25.4mm Clamp

From Pro to Cruiser ProXL

  • Integrated Tapered Head Tube IS 42/52
  • Press Fit B52 Bottom Bracket
  • Compatible with 27.2mm Seat Post and 31.8mm Clamp

COMPATIBILITY:

  • Integrated Tapered Headset Top 1" - Bottom 1-1/8’’ (from Mini to Expert XL)
  • Integrated Tapered Headset Top 1-1/8’’ - Bottom 1.5’’ (from Pro)
  • Euro BSC/BSA bottom bracket (from Mini to Expert XL)
  • Press Fit B52 bottom bracket (from Pro)



More details

699,99 € Tax incl.

Recommended retail price : 699,99 € TTC

Availability:

Reference Bar Code Colors Frame Sizes Unit price Avail. Quantity
SYNFRAM001 8944513600512 Grey Mini XL
699,99 €
SYNFRAM002 8944513600505 Grey Junior
699,99 €
SYNFRAM003 8944513600499 Grey Junior XL
699,99 €
SYNFRAM004 8944513600482 Grey Expert
699,99 €
SYNFRAM005 8944513600475 Grey Expert XL
699,99 €
SYNFRAM006 8944513600468 Grey Pro
699,99 €
SYNFRAM007 8944513600451 Grey Pro XL
699,99 €
SYNFRAM008 8944513600444 Grey Pro XXL
699,99 €
SYNFRAM009 8944513600437 Grey Pro XXXL
699,99 €
SYNFRAM010 8944513600420 Grey Pro XXXXL
699,99 €
SYNFRAM011 8944513600543 Grey Pro Cruiser
699,99 €
SYNFRAM012 8944513600536 Grey Pro XXXL Cruiser
699,99 €

GEOMETRY :

cadre

Size Top Tube Rider Area Chain Stay BB Height Seat Tube Angle Head Tube Angle Head Tube Weight
Mini 17.5" 18.98" 12.25" 10" 70° 73° 100mm
Mini XL 18" 19.25" 12.5" 10.25" 70° 73° 100mm NC
Junior 18.5" 19.57" 12.75" 10.50" 71° 73.5° 110mm NC
Junior XL 19" 19.92" 13" 10.75" 71° 73.5° 110mm NC
Expert 19.5" 20.35" 13.25" 11" 72° 73.5° 115mm NC
Expert XL 20" 20.75" 14" 11.25" 72° 74° 120mm NC
Pro 20.5" 21.18" 14.5" 11.25" 72° 74° 120mm 1.8 Kg
Pro XL 21" 21.61" 14.8" 11.25" 72° 74° 120mm 1.83 Kg
Pro XXL 21.5" 22.09" 15" 11.25" 72° 74° 120mm 1.85 Kg
Pro XXXL 22" 22.52" 15.2" 11.25" 72° 74° 120mm 1.88 Kg
Pro XXXXL 22.5" 22.95" 15.5" 11.25" 72° 74° 120mm 1.9 Kg
Cruiser Junior 24 19" 20.91" 14" 11" 69° 72.5° 115mm NC
Cruiser Pro 24 20.5" 22.4" 15.25" 11.5" 70° 73° 120mm 1.92 Kg
Cruiser Pro XXXL 24 22" 23.58" 15.5" 11.5" 70° 73° 120mm 1.95 Kg

YOU MIGHT ALSO LIKE

FEATURES

Materials Aluminium
Headset Types Tapered Integrated - IS
Braking types Disc
