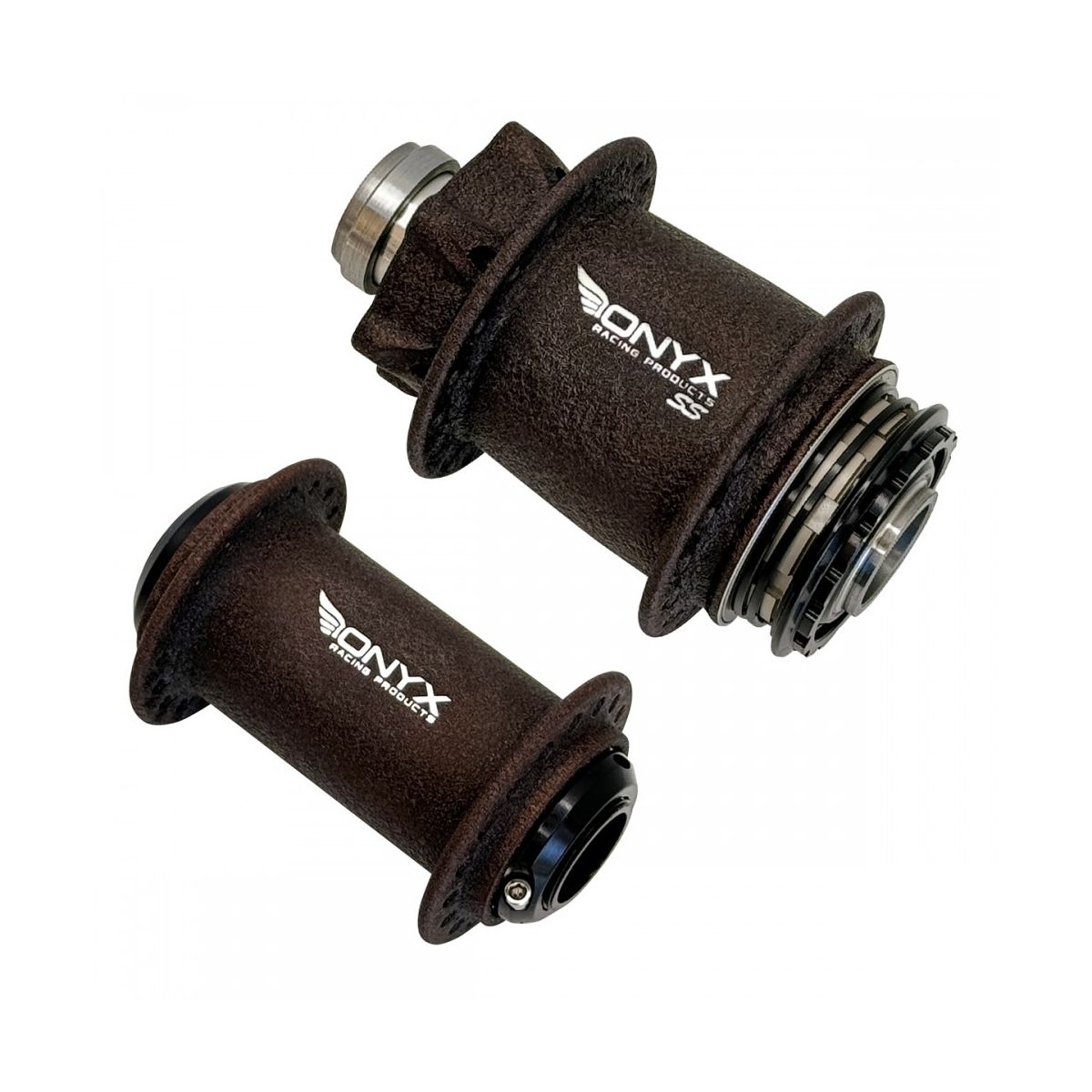

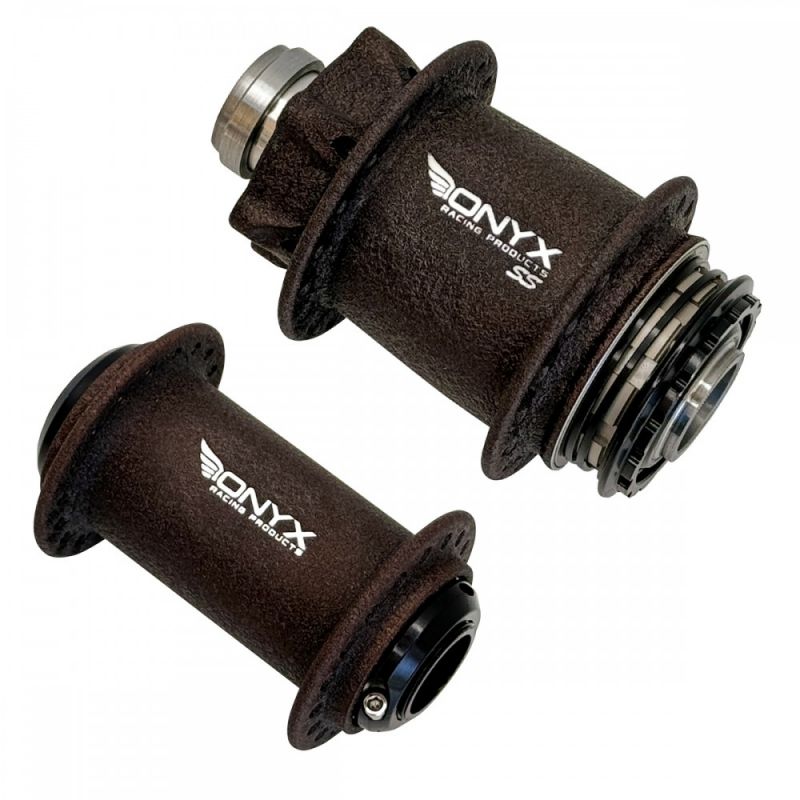

ONYX FRONT SOLID 20MM - REAR ULTRA SS ISO OX 20MM 36H COFFEE GROUNDS HUBSET

These are a limited edition color-way from ONYX.
Each set of hubs are sold exactly as shown.

Onyx Racing Products Limited Edition COFFEE GROUNDS.
The top of the range of BMX Racing hubs.
Hybrid ceramic bearings reduce front wheel rolling resistance to the point of disbelief.
Onyx hubs transfer power from your pedals to your rear bike wheel instantly for faster acceleration and more control.

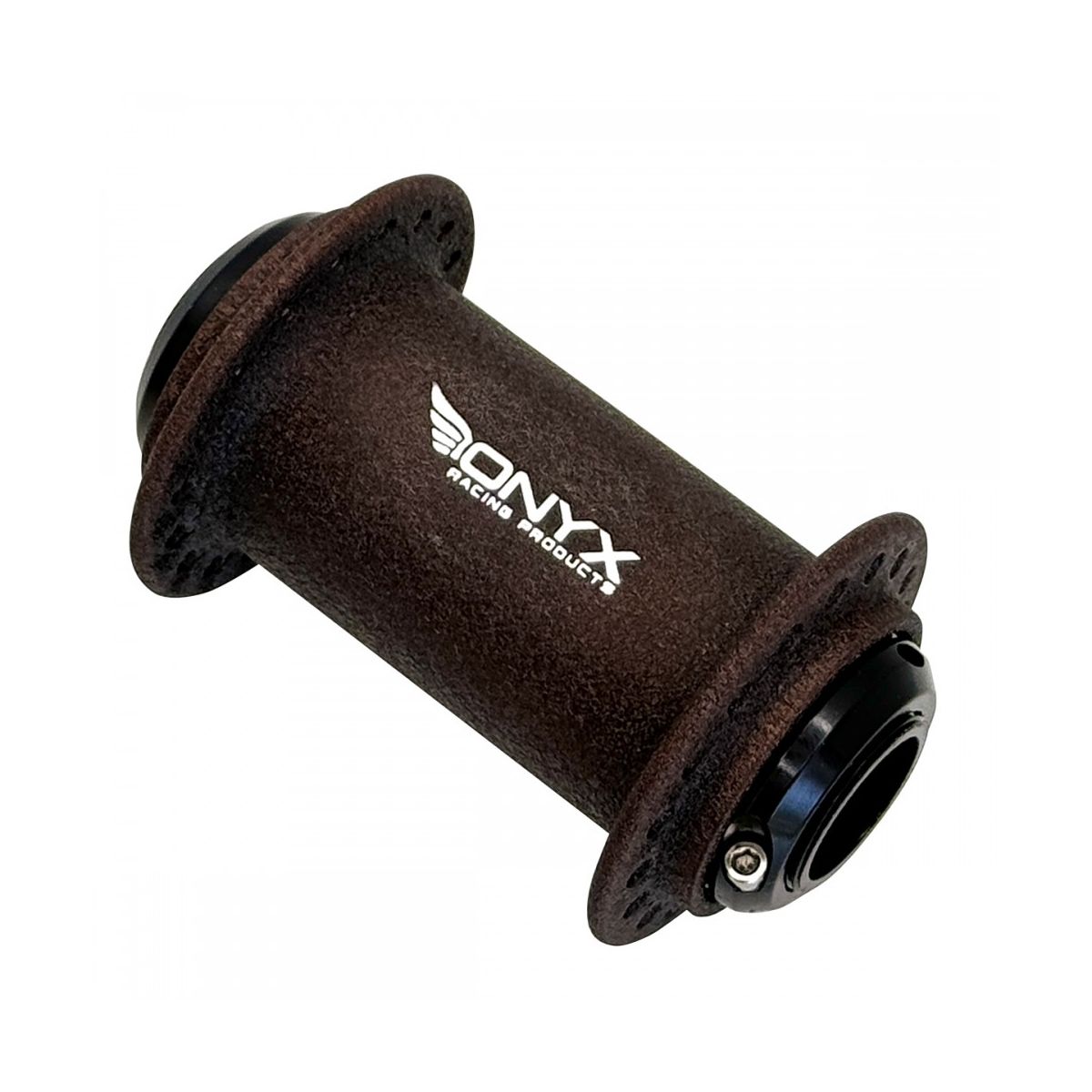

FRONT: ONYX SOLID 100/20mm thru 36 SP

  • CNC machined aluminum 7075 body
  • Big shape body
  • Hybrid-Ceramic bearings
  • Drilling: 36 spokes
  • For 20mm axle
  • Weight: 252g

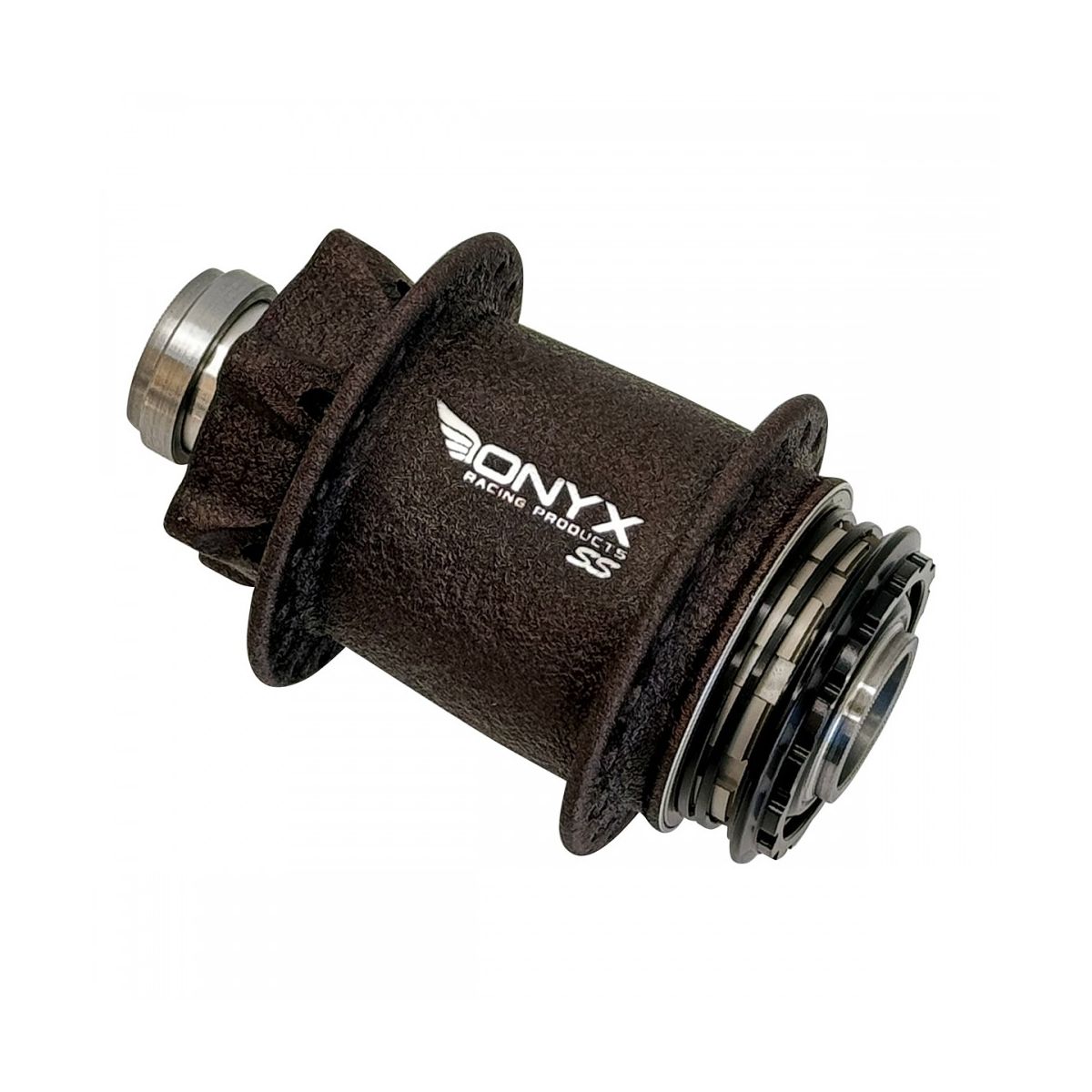

REAR: ONYX ULTRA SS ISO OX 110/20MM THRU 36 SP

  • Instant engagement, silent coasting
  • Disc Brake Rotor Mount: ISO 6-Bolt Flange
  • CNC machined aluminum 7075 body, reinforced
  • Small flanges
  • Hybrid-Ceramic bearings
  • For 20mm Axle
  • Drilling: 36 spokes
  • Weight: 493g


SOLD WITHOUT COG!

SOLD WITHOUT THRU-BOLT AXLE

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos

ONYX WARRANTY

More details

949,99 € Tax incl.

Recommended retail price : 949,99 € TTC

Availability:

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS336 151424423361 Coffee Ground - Black
949,99 €



A - Hub Center To Flange Center, Non-Drive Side 34.8mm
B - Hub Center To Flange Center, Drive Side 34.8mm
C - Axle Width 100mm
Spoke Hole Circle Diameter, Drive Side 50mm
Spoke Hole Circle Diameter, Non-Drive Side 50mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max


A - Hub Center To Flange Center, Non-Drive Side 28mm
B - Hub Center To Flange Center, Drive Side 28mm
C - Axle Width 110mm
Spoke Hole Circle Diameter, Drive Side 60mm
Spoke Hole Circle Diameter, Non-Drive Side 60mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max

YOU MIGHT ALSO LIKE

FEATURES

Wheel types Wheelset
Axle Diameters 20mm
Spokes 36
