ONYX helix 10mm Front hub 36H
Previous Next

ONYX helix 10mm Front hub 36H

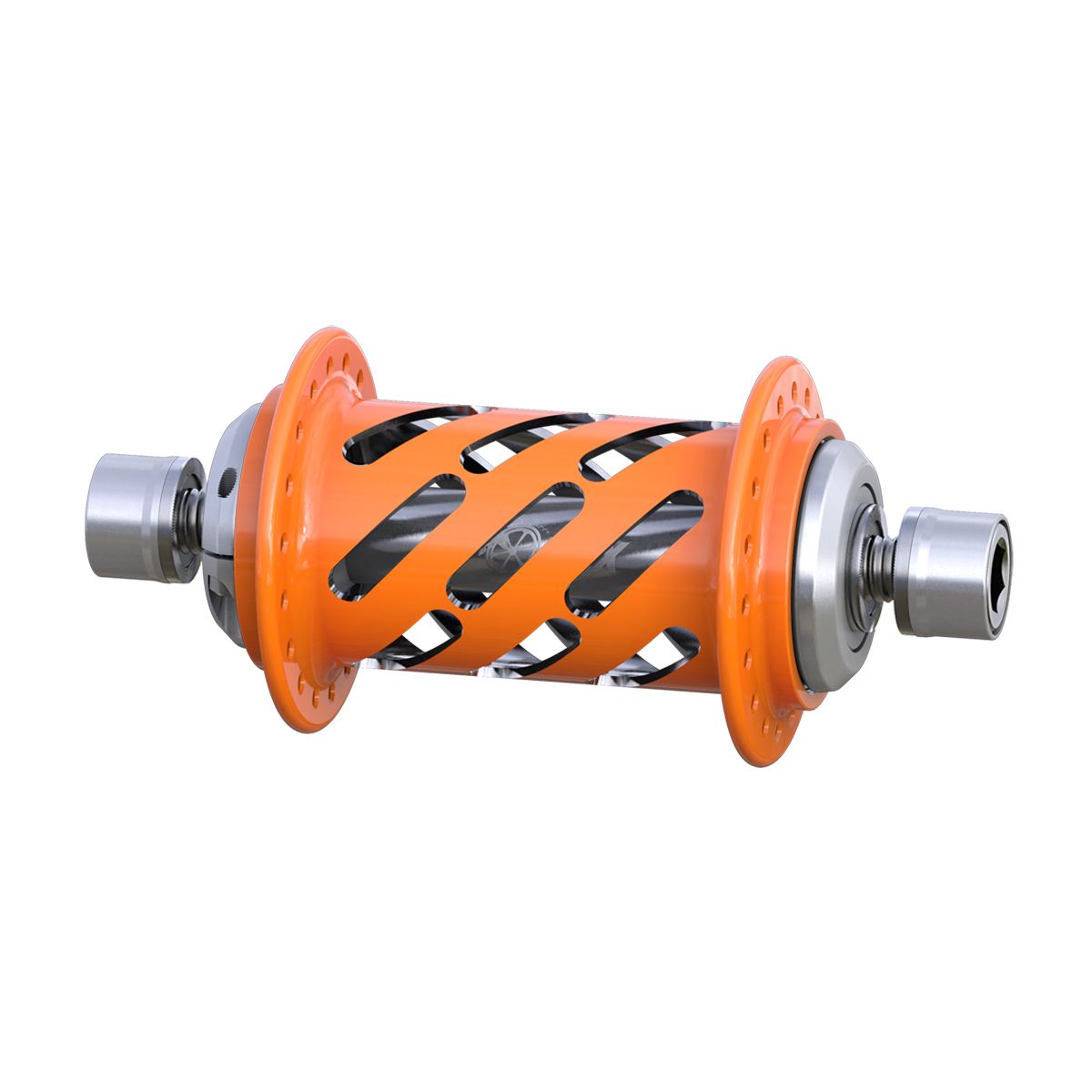

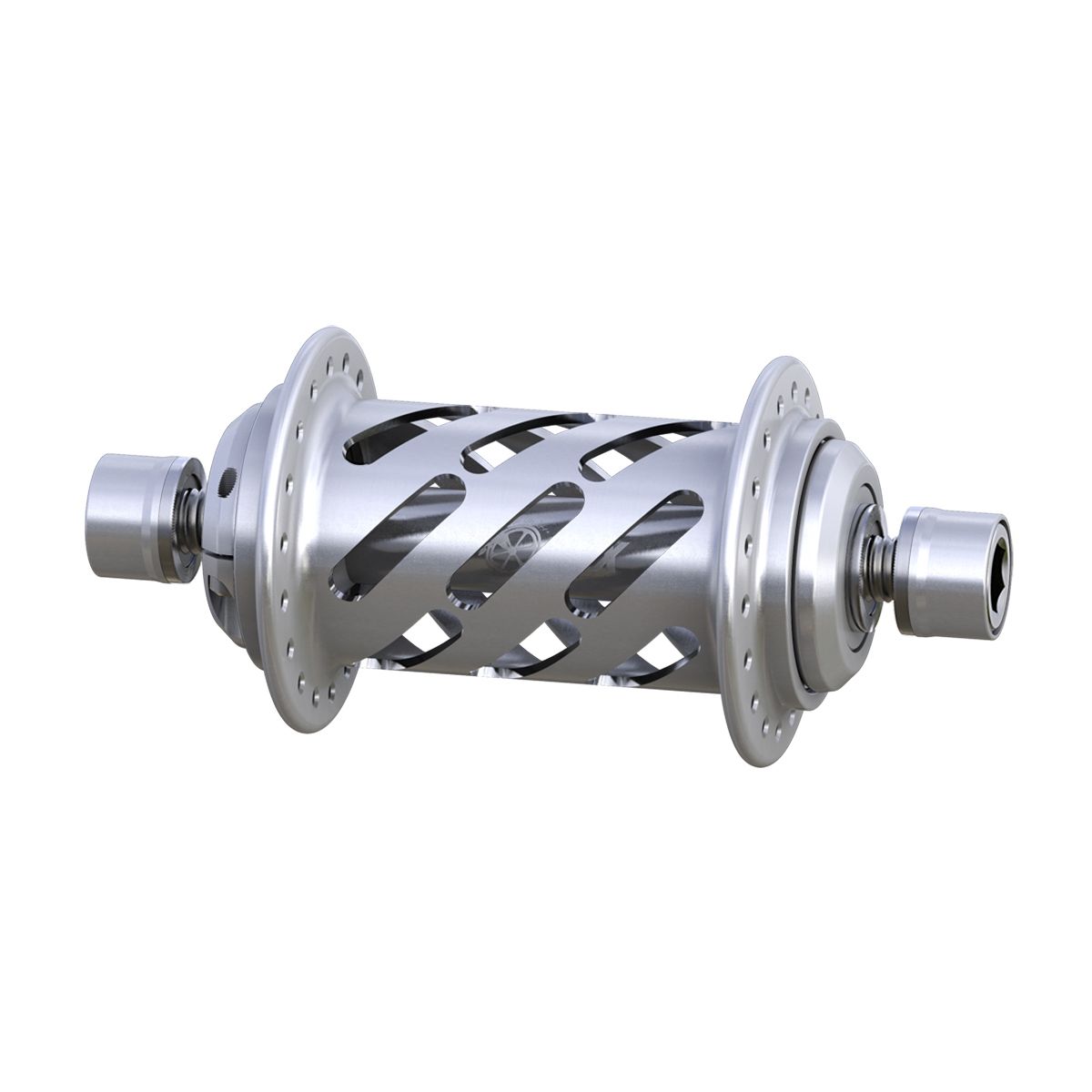

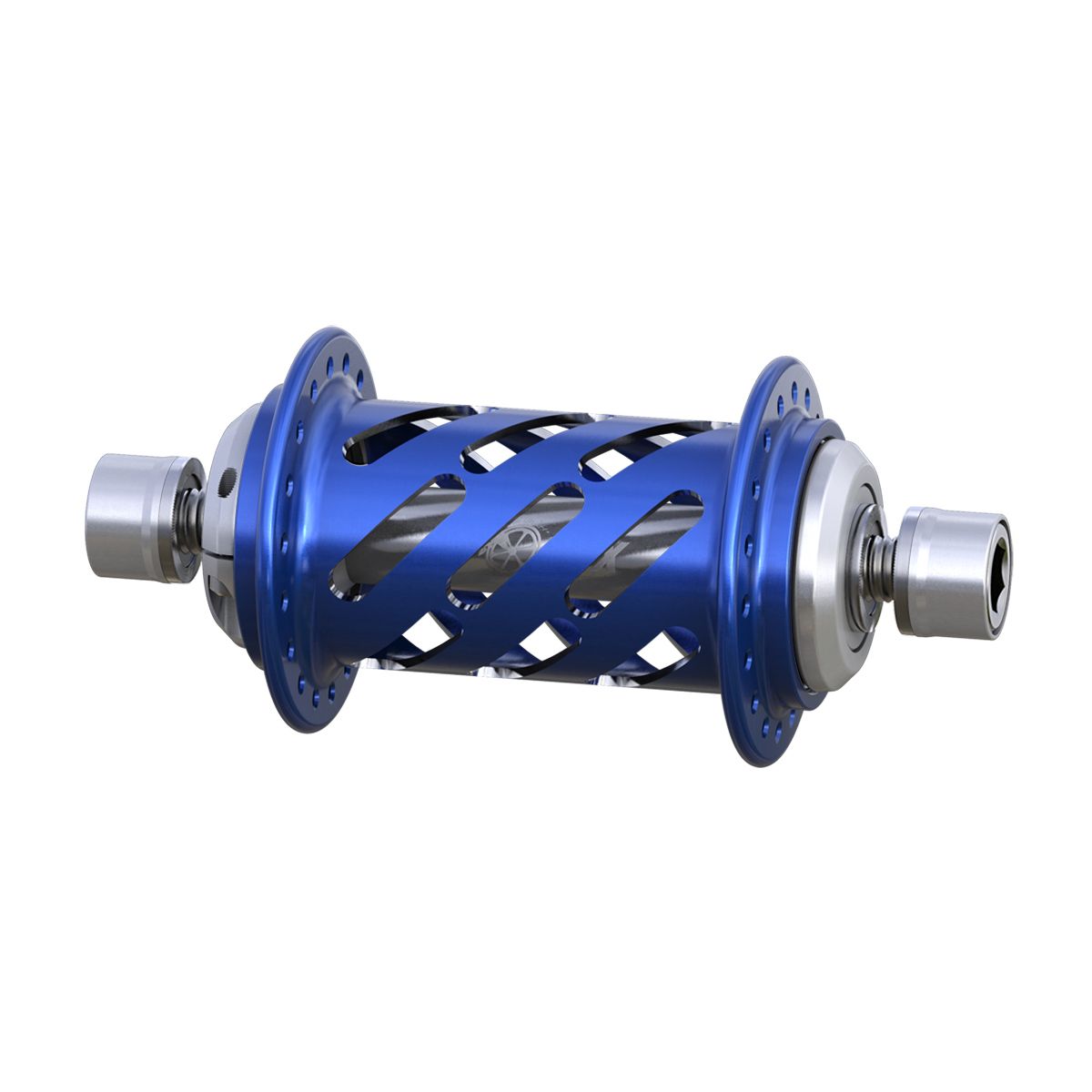

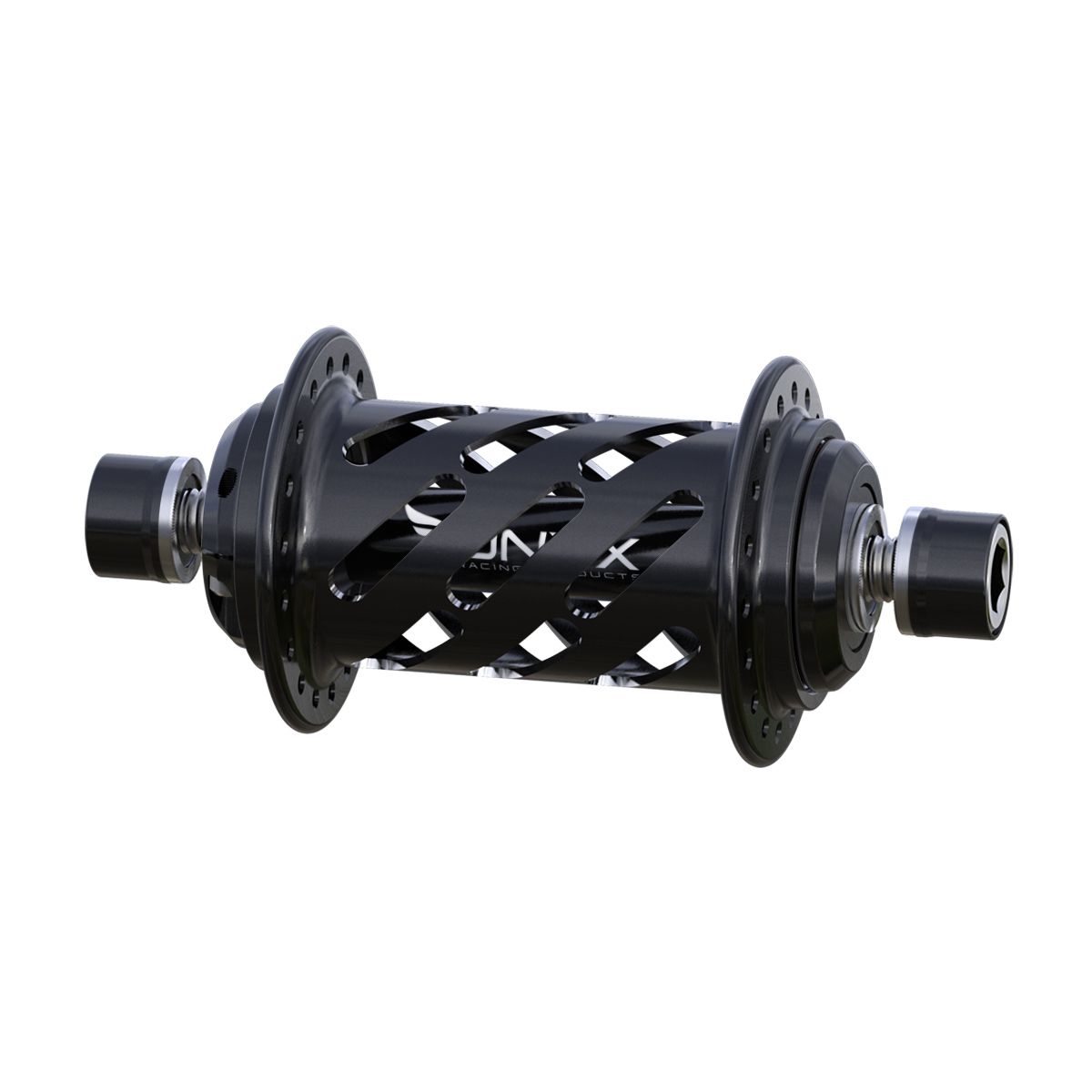

The ONYX Helix front hub offers BMX riders the famous quality of ONYX products made in the USA: high-end machined aluminum and hybrid-ceramic bearings that feature a very low coefficient of friction and excellent power transfer.

FEATURES :
• CNC machined and perforated 7075-T6 aluminum body
• Sealed hybrid-ceramic bearings
• Aluminum axle body
• BTR screw tightening
• Axle diameter: 10mm
• Width: 100mm
• Drilling: 36 holes
• Weight: 222g

NOTE: color shade may vary slightly depending on production run

ONYX hubs require regular maintenance to maintain full operation
ONYX Maintenance Videos

ONYX WARRANTY

More details

289,99 € Tax incl.

Recommended retail price : 289,99 € TTC

ONYX

Availability:

Buy in local shop

Reference Bar Code Colors Unit price Avail. Quantity
ONYHUBS001 151424420018 Black-Black
289,99 €
ONYHUBS003 151424420032 White-Silver
289,99 €
ONYHUBS002 151424420025 Silver-Silver
289,99 €
ONYHUBS005 151424420056 Blue-Silver
289,99 €
ONYHUBS004 151424420049 Red-Silver
289,99 €
ONYHUBS021 151424420216 Neon Yellow-Silver
279,00 €
ONYHUBS007 151424420070 Matt Black-Black
289,99 €
ONYHUBS022 151424420223 Neon Orange-Silver
279,00 €



A - Hub Center To Flange Center, Non-Drive Side 34.8mm
B - Hub Center To Flange Center, Drive Side 34.8mm
C - Axle Width 100mm
Spoke Hole Circle Diameter, Drive Side 50mm
Spoke Hole Circle Diameter, Non-Drive Side 50mm
Spoke Hole Counts 36
Spoke Tension 120kgf Max

YOU MIGHT ALSO LIKE

FEATURES

Wheel types Front
Axle Diameters 10mm
Spokes 36
