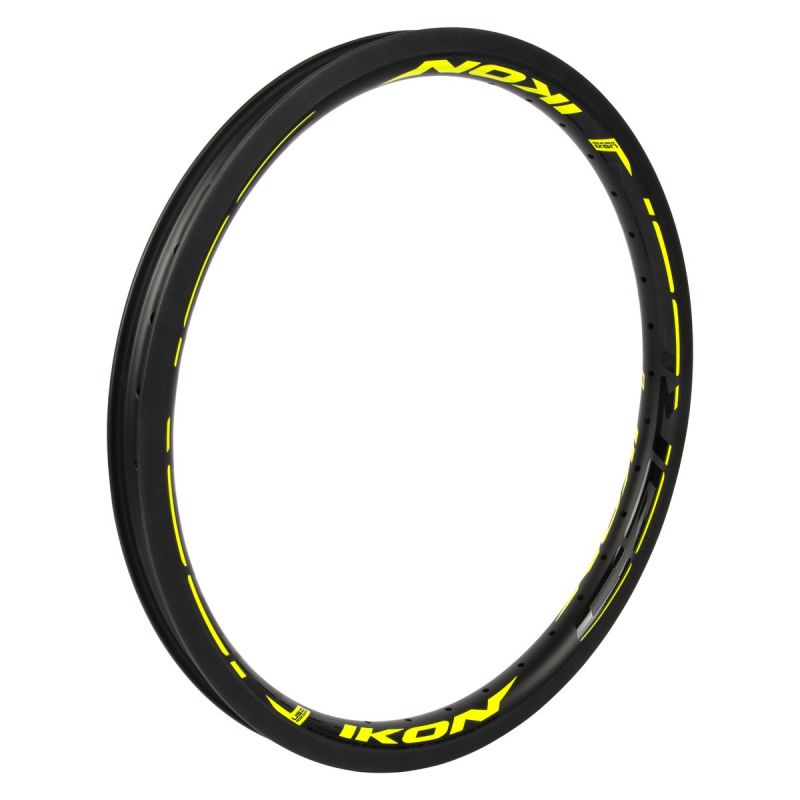

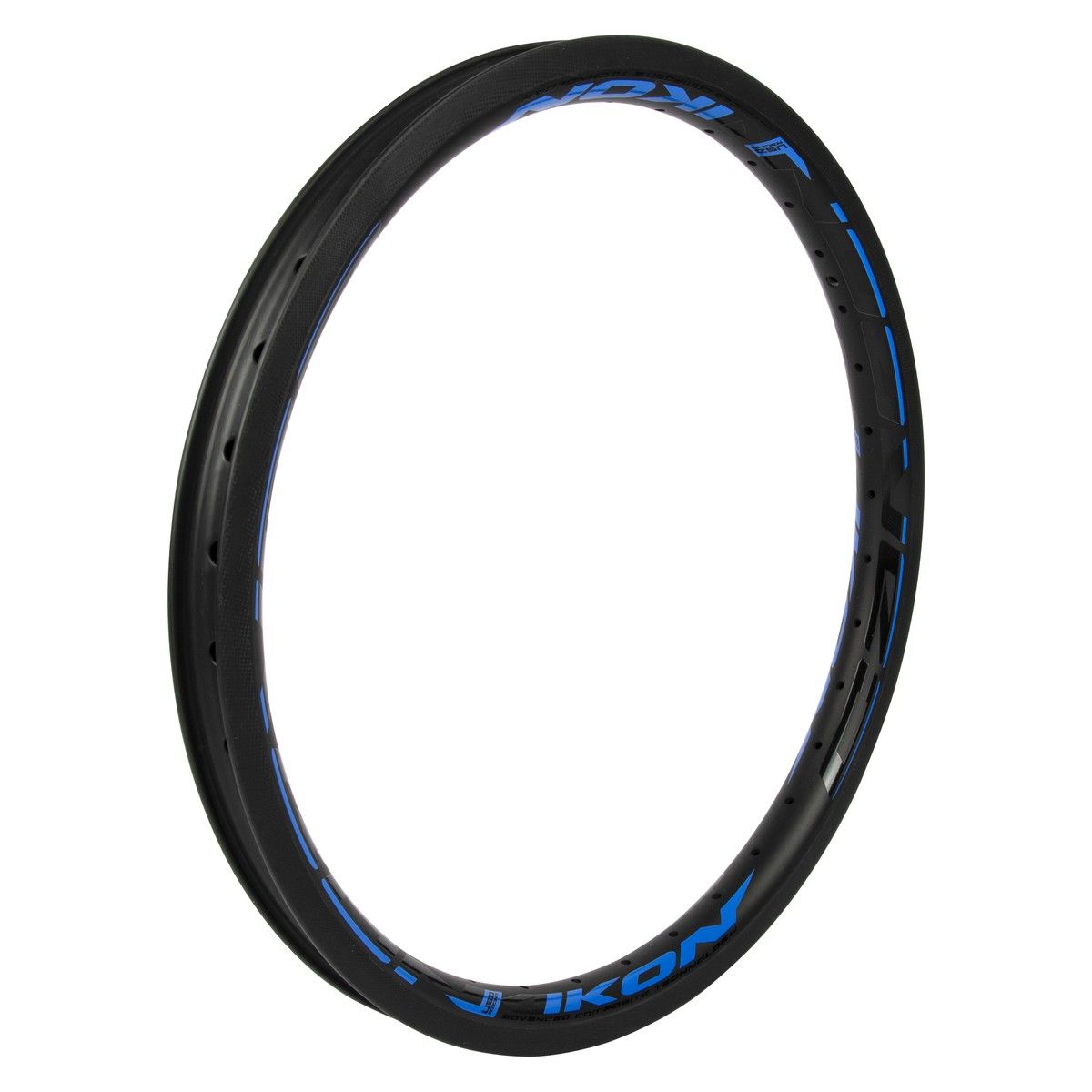

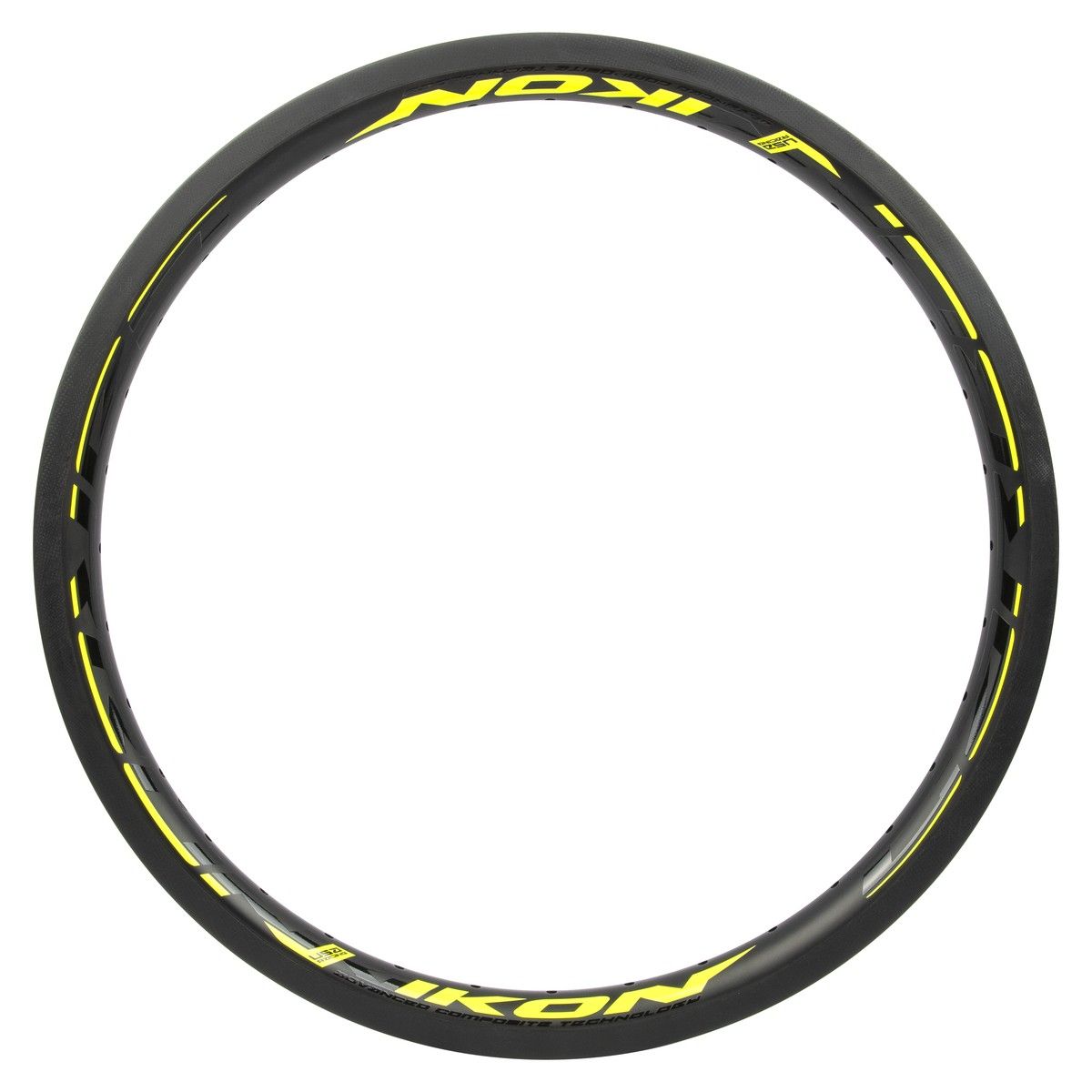

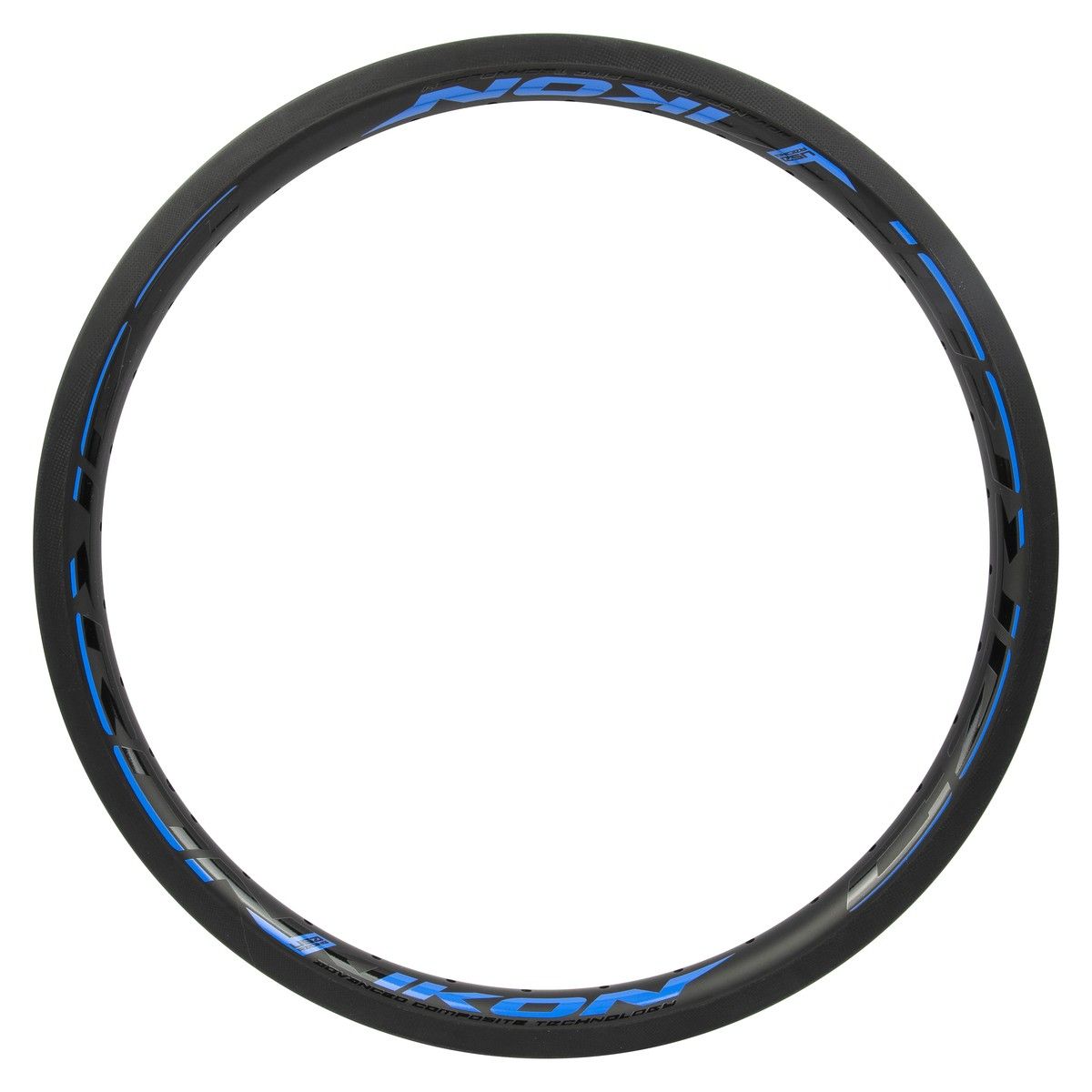

Made from a T700 unidirectional weave manufactured by Toray, the leader in the field, more resistant than other 3K weaves, IKON carbon rims are among the lightest carbon rims on the BMX Race market. They provide considerable weight savings and exceptional rigidity to meet the demands of the fastest riders. They are available with 2 different aero rim profiles for the front or the rear depending on the type of braking used. Tested and approved by the pilots of the CHASE team.
FEATURES :
• Toray T700 UD Carbon Rim
• Dimensions: 406x32mm (20"x1.50"/1.75")
• Rear profile with sidewalls with braking surface
• Tubeless Ready
• Width: 32mm
• Height: 25mm
• ERD: 377.4
• Drilling: 36 holes
• Valve: Presta F/V
• Weight: 300g
V-BRAKE COMPATIBLE WITH ONLY SPECIAL PADS FOR CARBON RIMS
Maximum recommended pressure: 110Psi / 7.58 bar
Recommended spoke tension: ≤115KGF
Warning: Last items in stock!
IKON carbon rims are some of the lightest carbon rims on the market, but strength has not been sacrificed. Made from a T700 unidirectional weave manufactured by Toray, the leader in the field, more resistant than other 3K weaves, all for a featherweight 300g per rim! A comparable alloy rim of the same size / width weighs 390g, which saves you up to 180g for a pair of rims!
Rims without a braking surface can be used as a front rim but also a rear rim when using a disc brake.
Tubeless Ready System : IKON rims feature a Bead Lock System, needed for the rim to be Tubeless Ready. With the installation of additional items needed you can get the rim ready for tubeless set up, along with the usage of a tubeless specific tire. With a tubeless set up, you can lighten up your wheels, saveing rotational weight, as well as have a sealant inside your tubeless ready tire to help automatically repair small punctures. Additional items needed to convert to a Tubeless system include Special Valve, Sealant Rim Tape, and Liquid sealer.
Materials | Carbon |
Sizes | 20 x 1.75 |
Wheel types | Rear |
Spokes | 36 |
Wheel Diameter | 406 |
Brake surface | With |
Tire Types | Tubeless ready |
