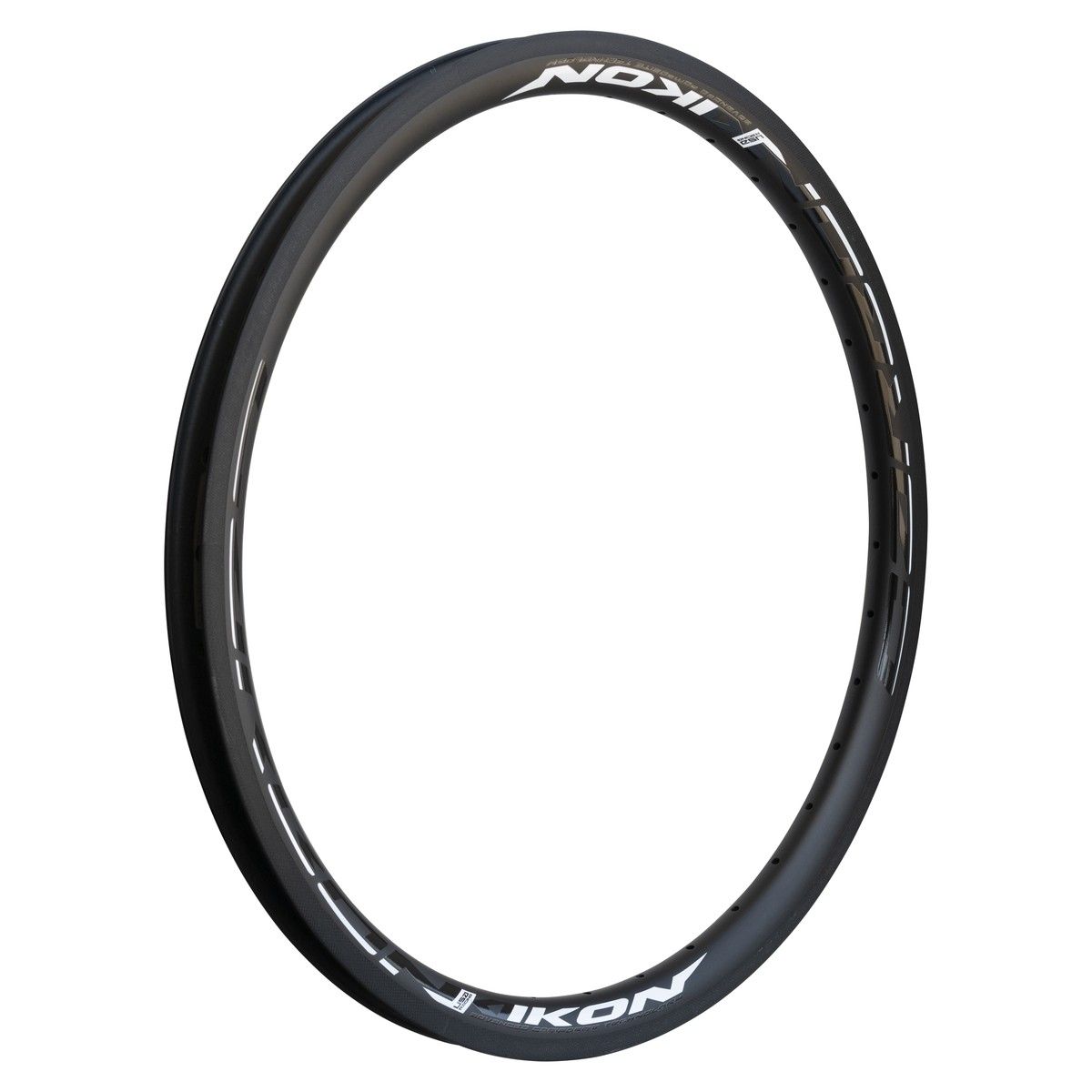

IKON Rear Rim 507x30 36H

Made from a T700 unidirectional weave manufactured by Toray, the leader in the field, more resistant than other 3K weaves, IKON carbon rims are among the lightest carbon rims on the BMX Race market. They provide considerable weight savings and exceptional rigidity to meet the demands of the fastest riders. They are available with 2 different aero rim profiles for the front or the rear depending on the type of braking used. Tested and approved by the pilots of the CHASE team.

FEATURES :
• Toray T700 UD Carbon Rim
• Dimensions: 507x30mm (24"x1.50"/1.75")
• Rear profile with braking surface sidewalls
• Width: 30mm
• Height: 30mm
• ERD: 466.4mm
• Drilling: 36 holes
• Valve: Presta F/V
• Weight: 433g

V-BRAKE COMPATIBLE WITH ONLY SPECIAL PADS FOR CARBON RIMS
Maximum recommended pressure: 110Psi / 7.58 bar
Recommended spoke tension: ≤115KGF

More details

389,99 € Tax incl.

Recommended retail price : 389,99 € TTC

IKON

Availability:

Buy in local shop

Reference Bar Code Colors Unit price Avail. Quantity
IKORIMS081 711484500275 black-white
389,99 €
IKORIMS082 711484500299 Black-Neon Yellow
311,99 €
389,99 €
IKORIMS083 711484500312 black-red
389,99 €
IKORIMS084 711484500336 black-blue
389,99 €

IKON carbon rims are some of the lightest carbon rims on the market, but strength has not been sacrificed. Made from a T700 unidirectional weave manufactured by Toray, the leader in the field, more resistant than other 3K weaves, all for a featherweight 430g per rim! A comparable alloy rim of the same size / width weighs 500g, which saves you up to 140g for a pair of rims!

Rims without braking surfaces can be used as the front rim but also when using a disc brake.

YOU MIGHT ALSO LIKE

FEATURES

Materials Carbon
Sizes 24 x 1.75
Wheel types Rear
Spokes 36
Wheel Diameter 507
Brake surface With
Tire Types Tubetype
