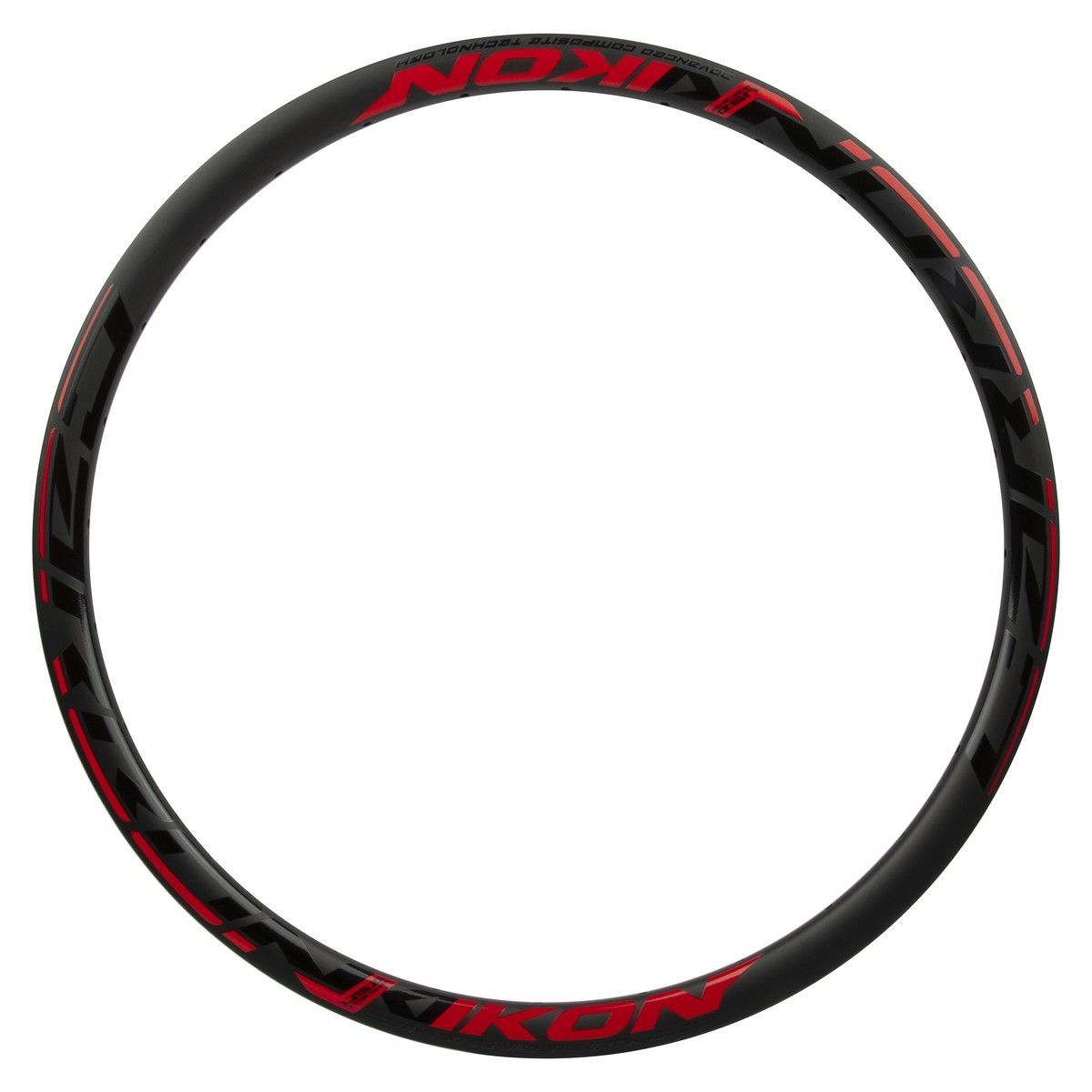

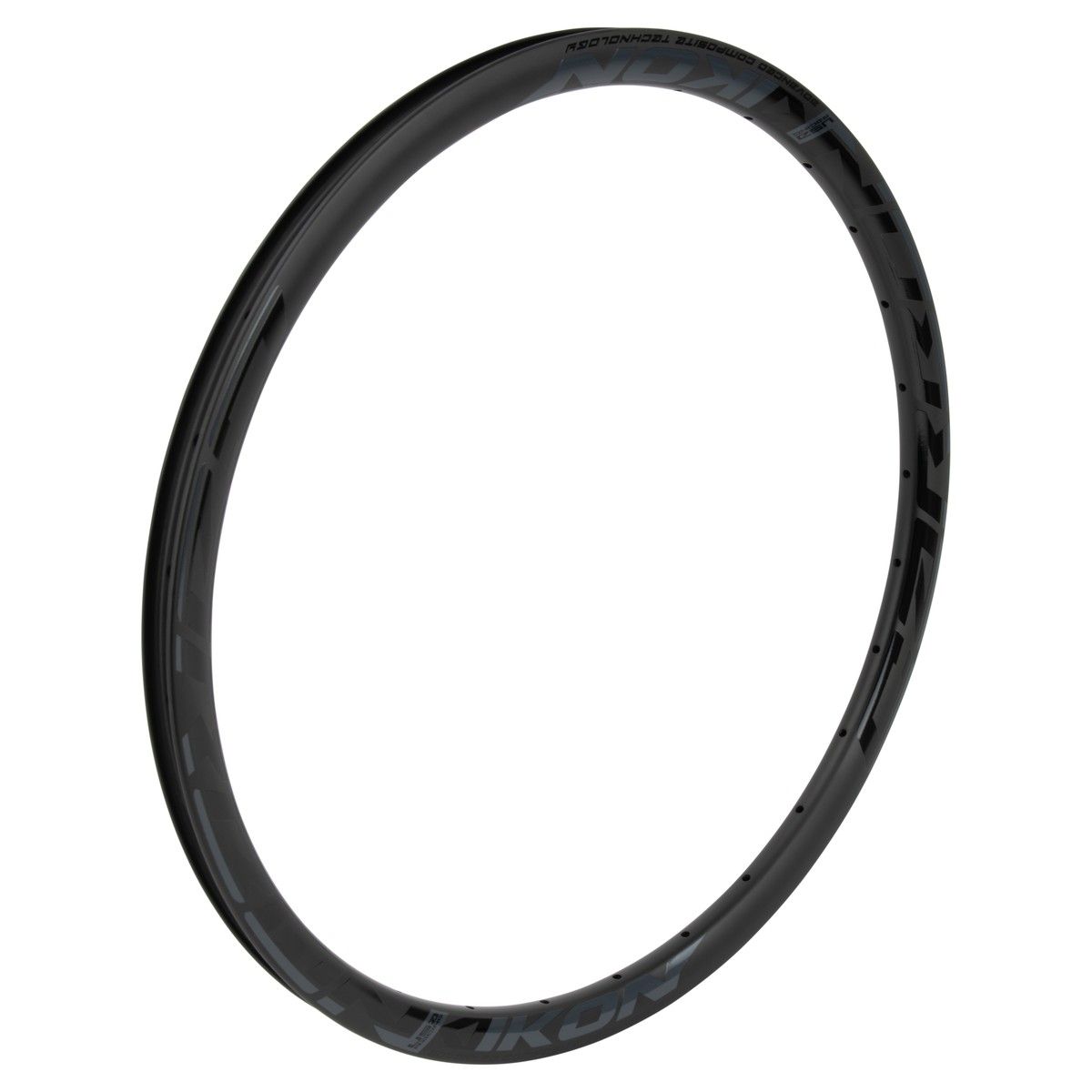

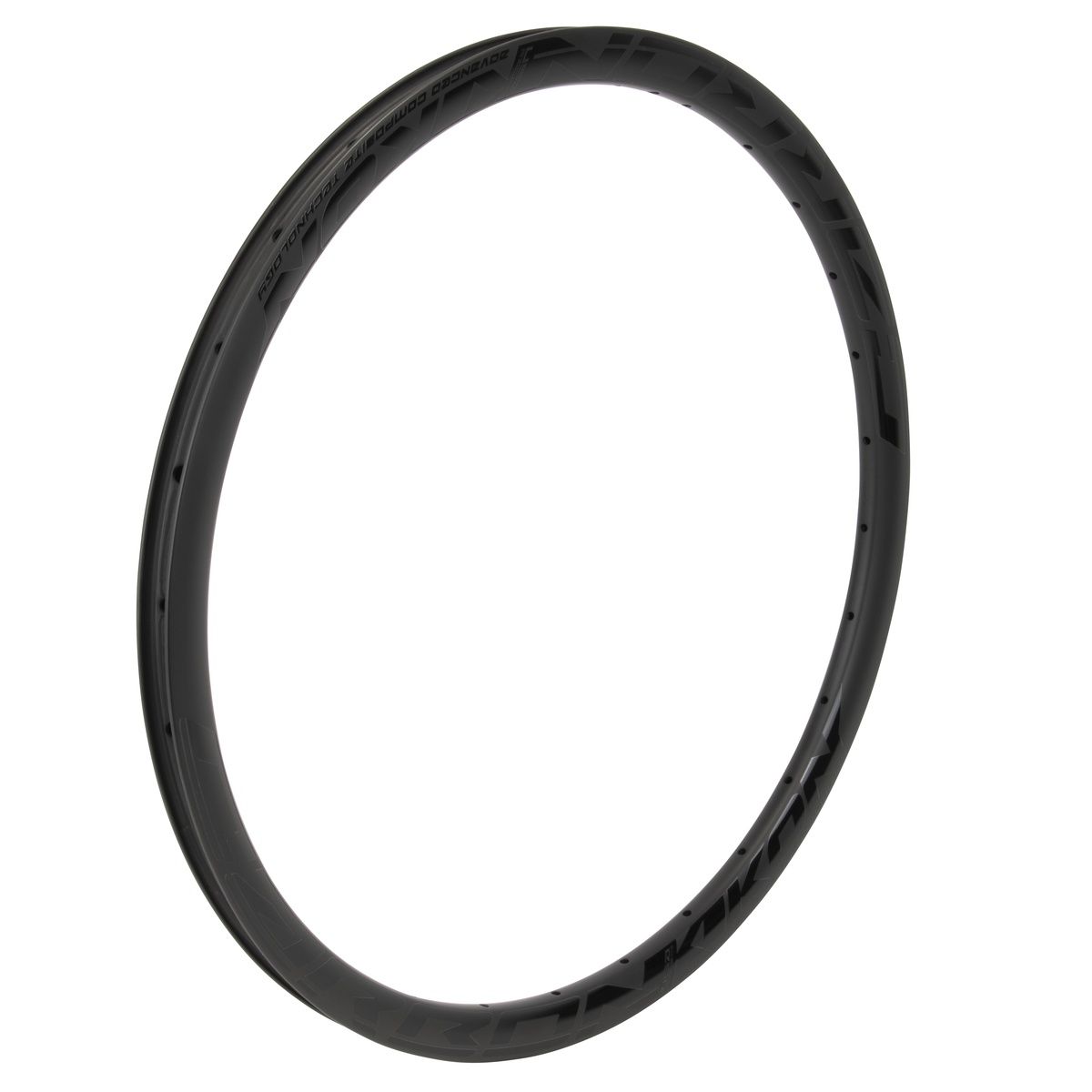

IKON Front Rim 451x22 28H

Made from a T700 unidirectional weave manufactured by Toray, the leader in the field, more resistant than other 3K weaves, IKON carbon rims are among the lightest carbon rims on the BMX Race market. They provide considerable weight savings and exceptional rigidity to meet the demands of the fastest riders. They are available with 2 different aero rim profiles for the front or the rear depending on the type of braking used. Tested and approved by the pilots of the CHASE team.

FEATURES :
• Toray T700 UD Carbon Rim
• Dimensions: 451x22mm (20"x1-1/8" / 1-3/8")
• Front profile without braking surface
• Tubeless Ready
• Width: 22mm
• Height: 23.3mm
• ERD: 423.4
• Drilling: 28 holes
• Valve: Presta F/V
• Weight: 284g

NOT COMPATIBLE FOR V-BRAKE
Maximum recommended pressure: 110Psi / 7.58 bar
Recommended spoke tension: ≤115KGF

More details

389,99 € Tax incl.

Recommended retail price : 389,99 € TTC

Availability:

Reference Bar Code Colors Unit price Avail. Quantity

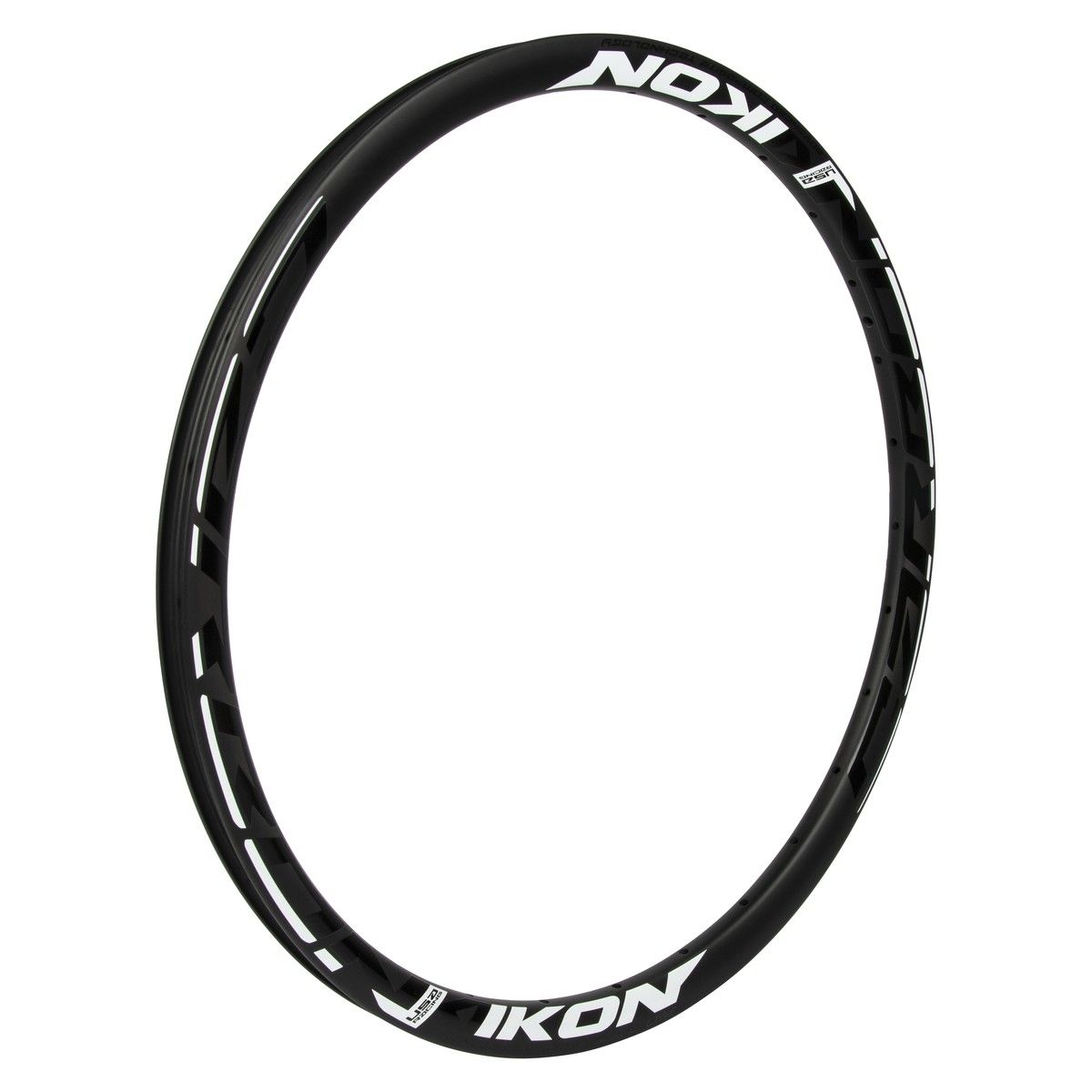

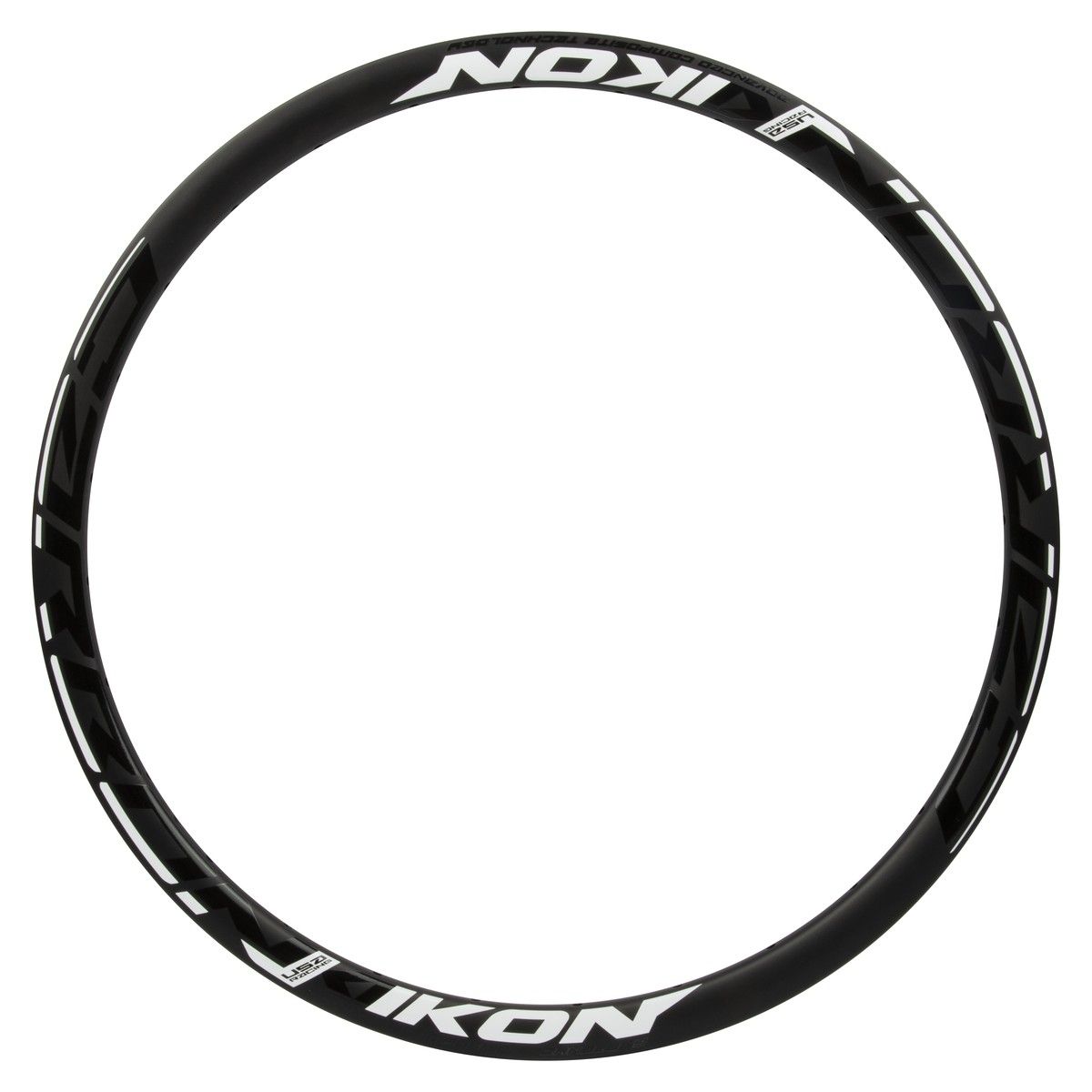

IKORIMS201 711484500466 black-white
389,99 €

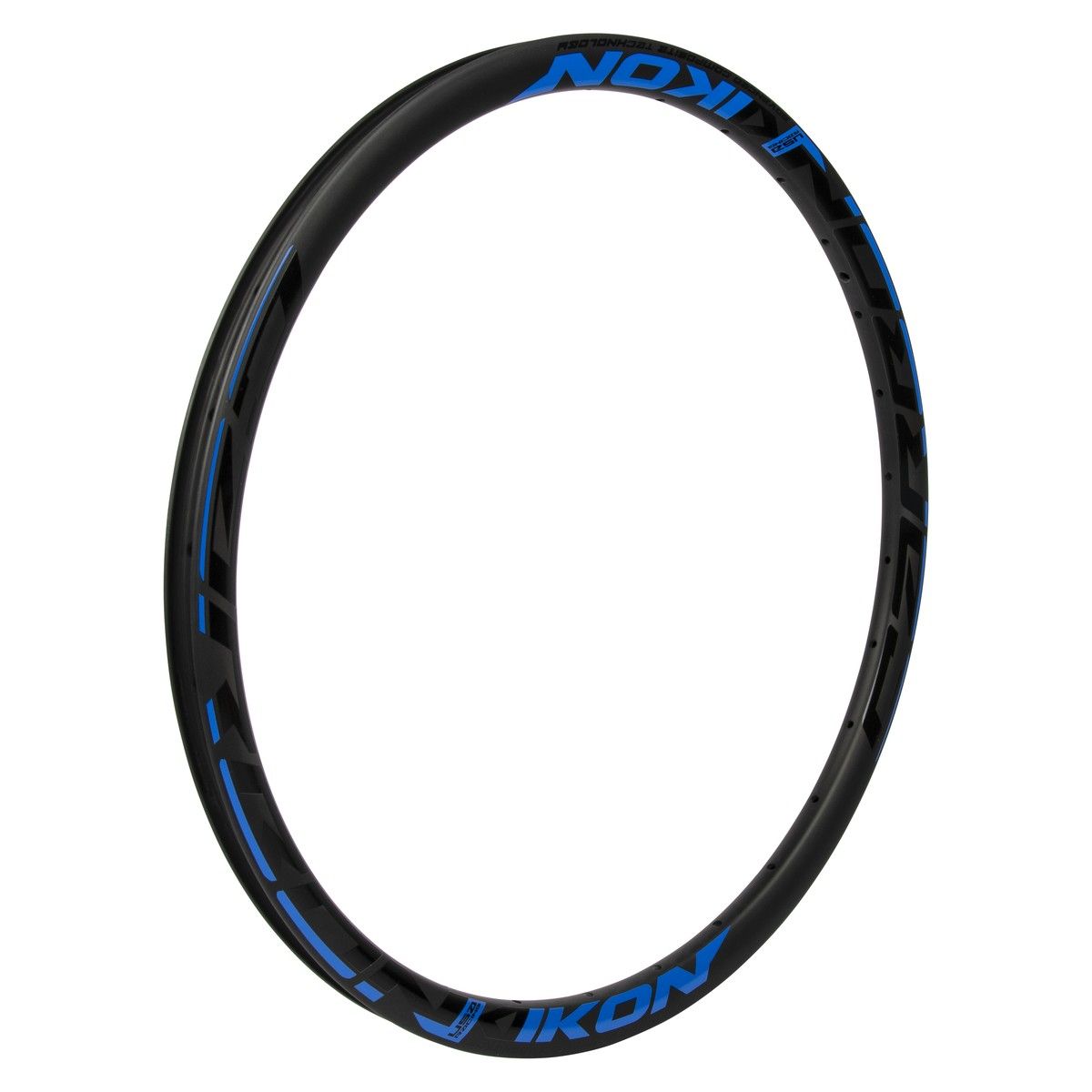

IKORIMS204 711484500527 black-blue
389,99 €
IKORIMS203 711484500503 black-red
389,99 €

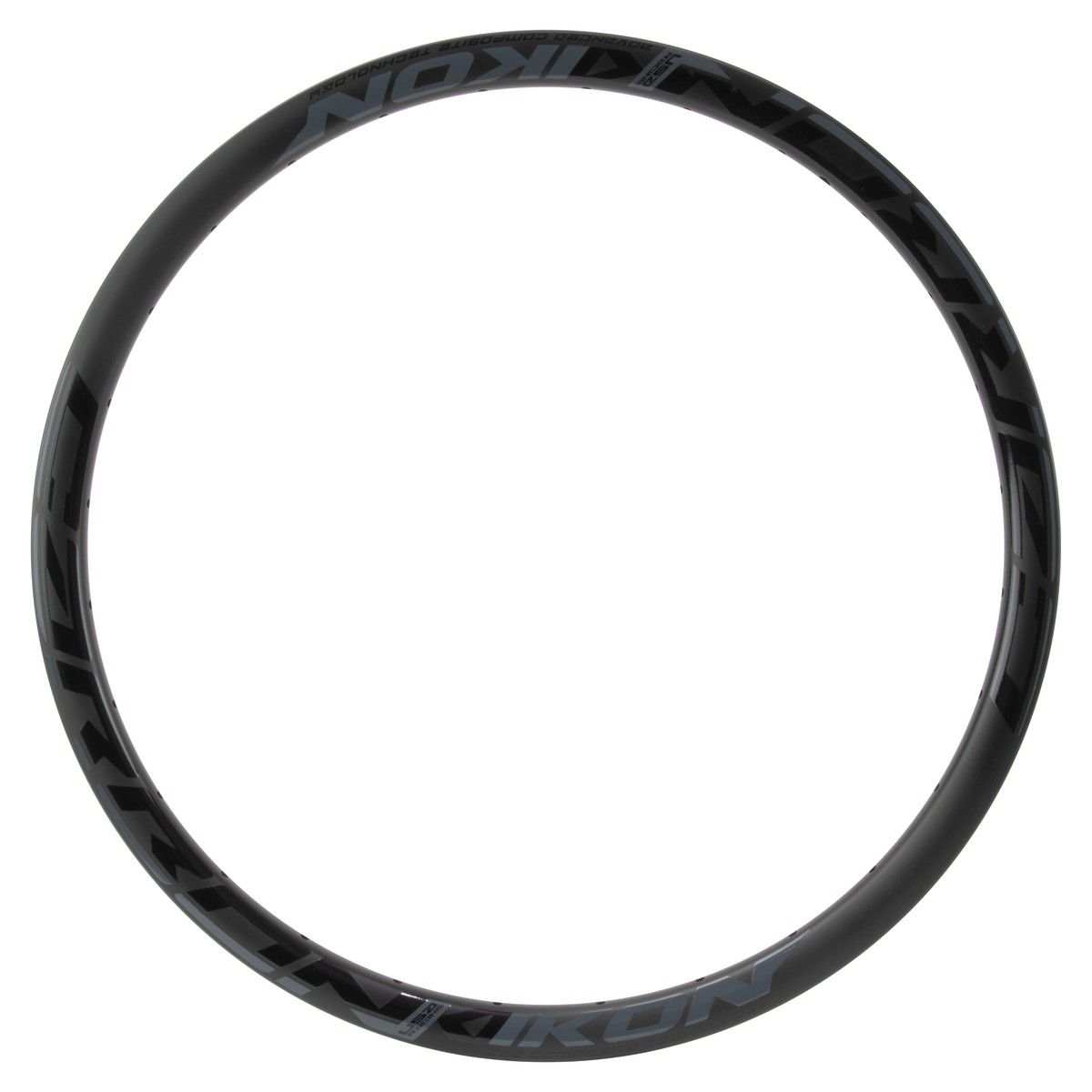

IKORIMS205 711484261244 Black-grey
389,99 €

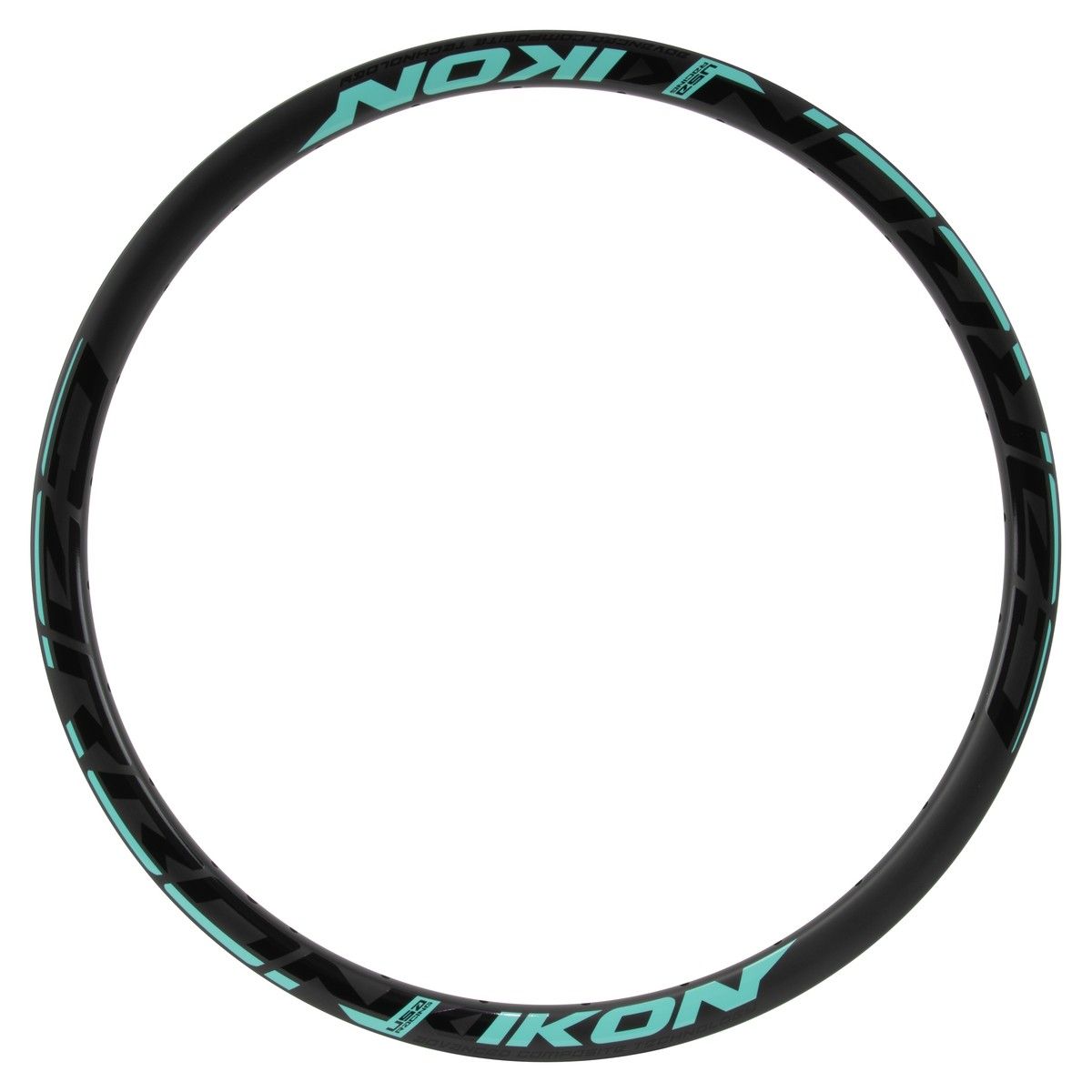

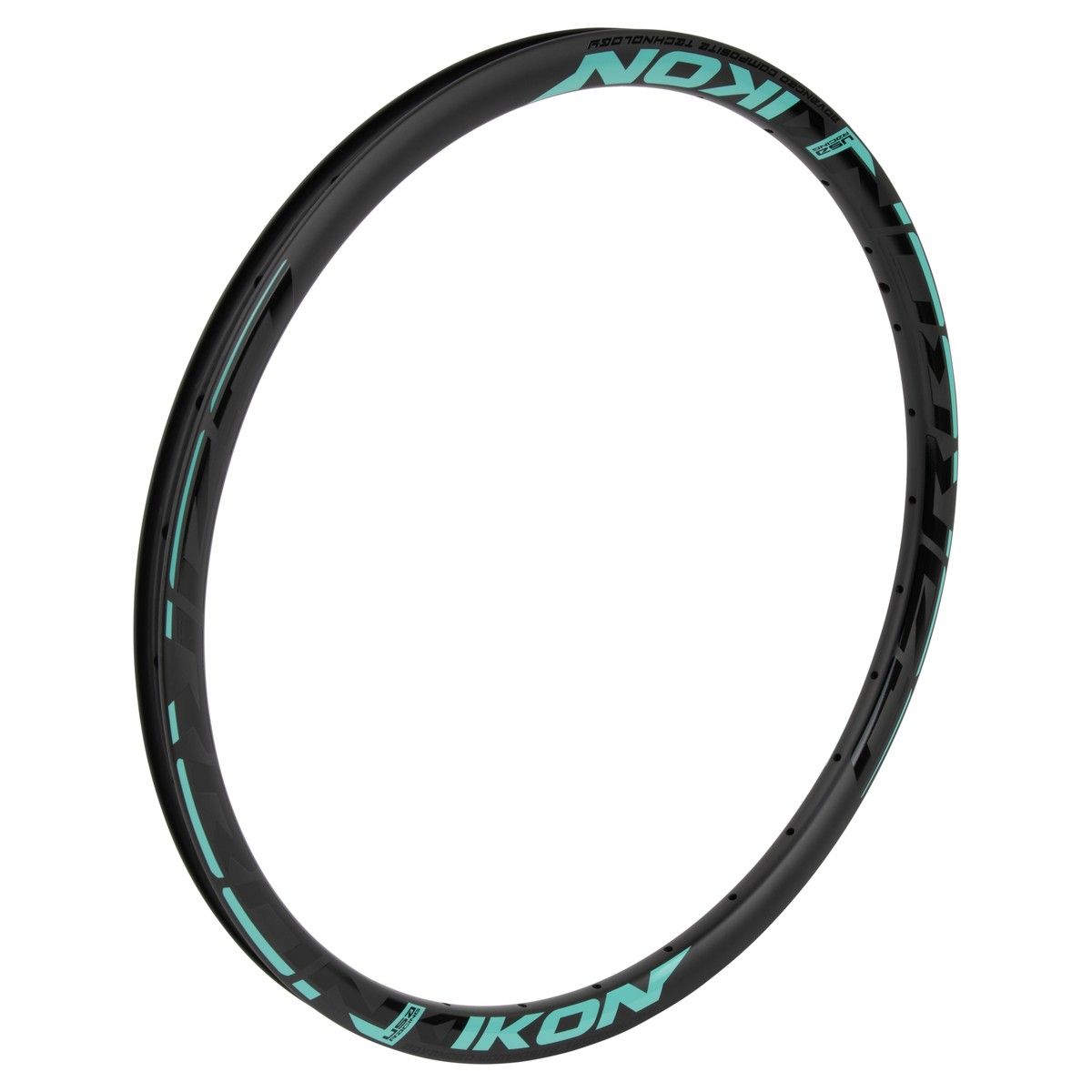

IKORIMS206 711484261251 Black-Teal
389,99 €

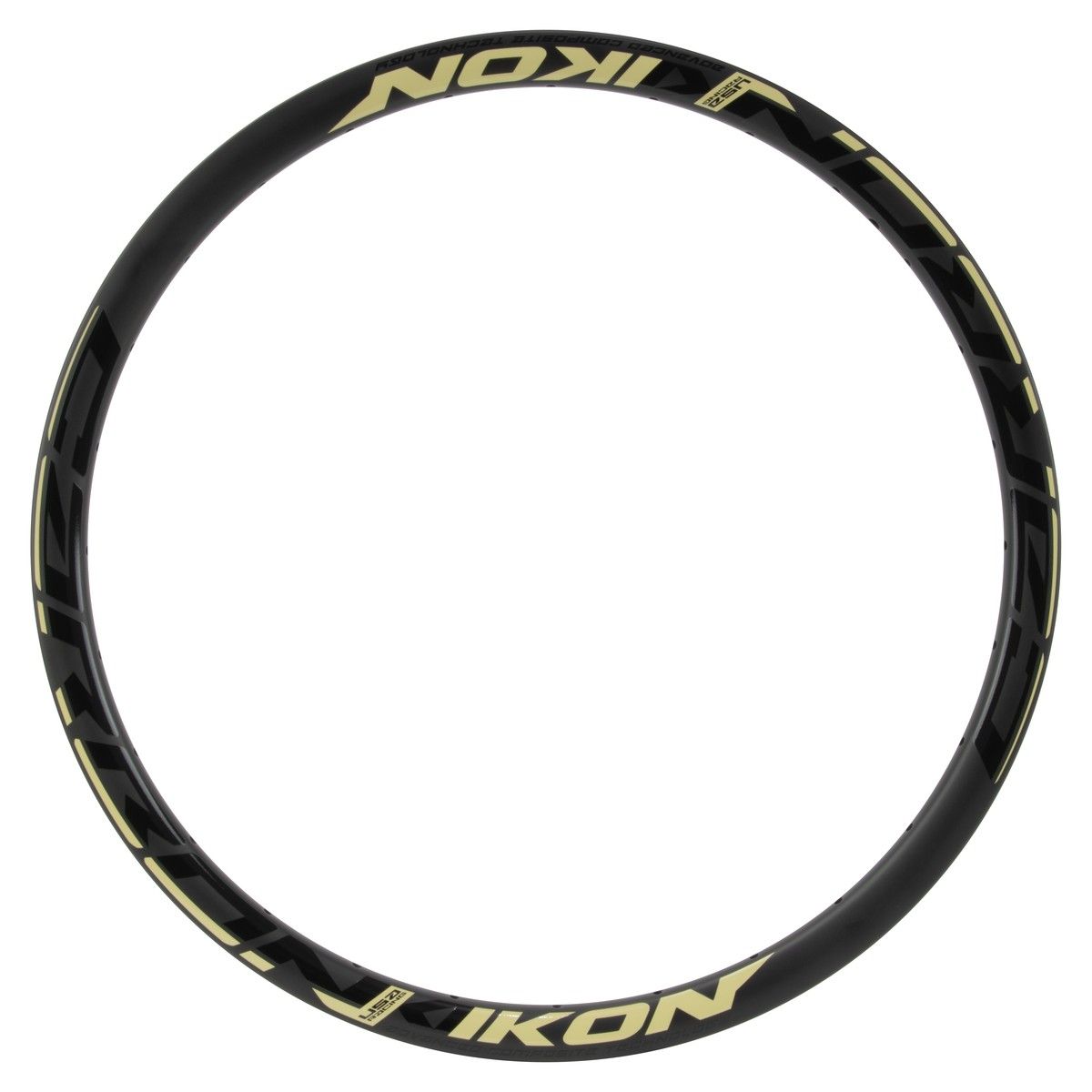

IKORIMS199 711484261268 Black-Sand
389,99 €

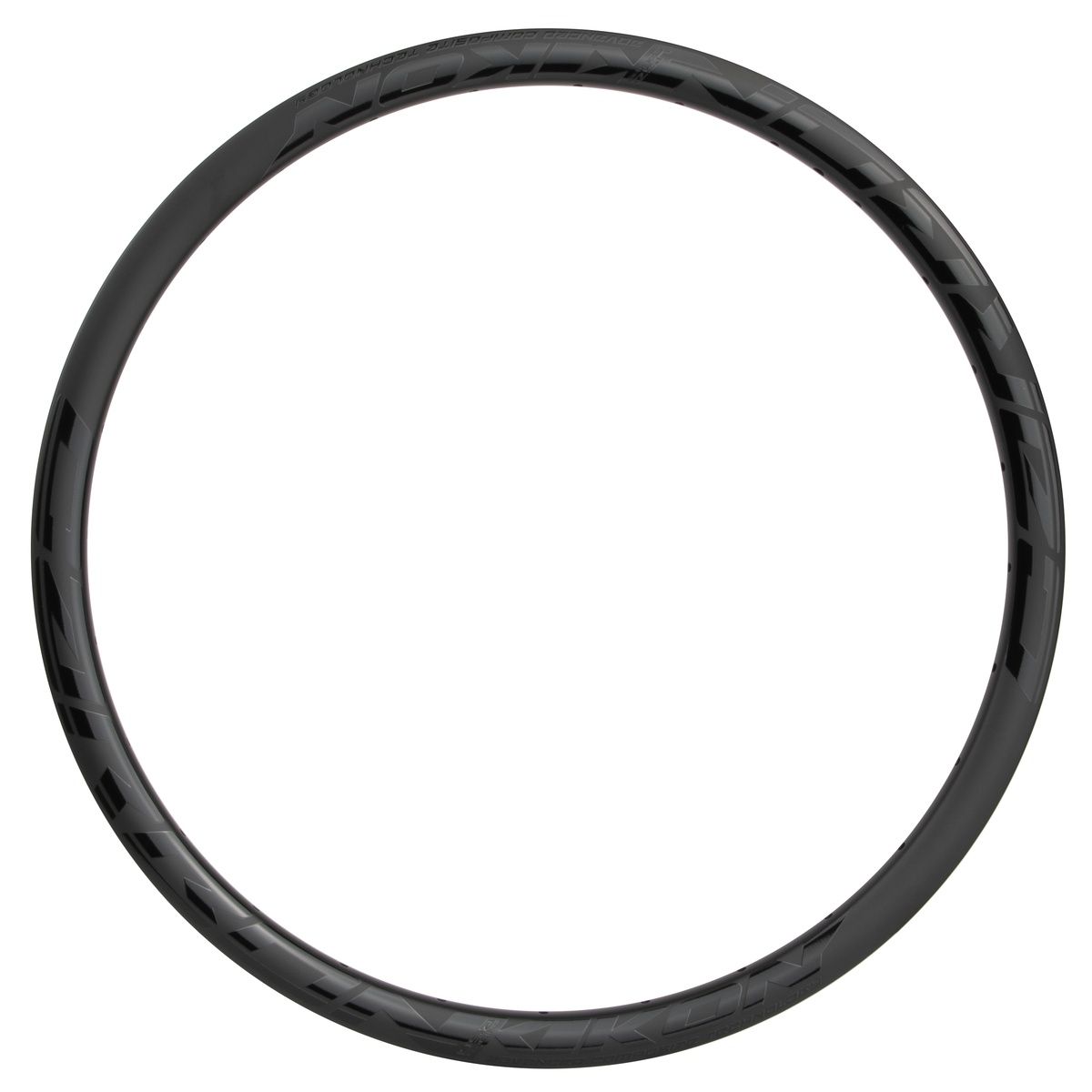

IKORIMS211 764333100041 Black-Black
389,99 €

IKON carbon rims are some of the lightest carbon rims on the market, but strength has not been sacrificed. Made from a T700 unidirectional weave manufactured by Toray, the leader in the field, more resistant than other 3K weaves, all for a featherweight 280g per rim! A comparable alloy rim of the same size / width weighs 350g, which saves you up to 140g for a pair of rims!

Rims without a braking surface can be used as a front rim but also a rear rim when using a disc brake.

Tubeless Ready System : IKON rims feature a Bead Lock System, needed for the rim to be Tubeless Ready. With the installation of additional items needed you can get the rim ready for tubeless set up, along with the usage of a tubeless specific tire. With a tubeless set up, you can lighten up your wheels, saveing rotational weight, as well as have a sealant inside your tubeless ready tire to help automatically repair small punctures. Additional items needed to convert to a Tubeless system include Special Valve, Sealant Rim Tape, and Liquid sealer.

YOU MIGHT ALSO LIKE

FEATURES

Materials Carbon
Sizes 20 x 1-3/8″
Wheel types Front
Spokes 28
Wheel Diameter 451
Brake surface Without
Tire Types Tubeless ready
