BOX Hex Lab front rim 20"x1-1/8" 28H
Previous Next

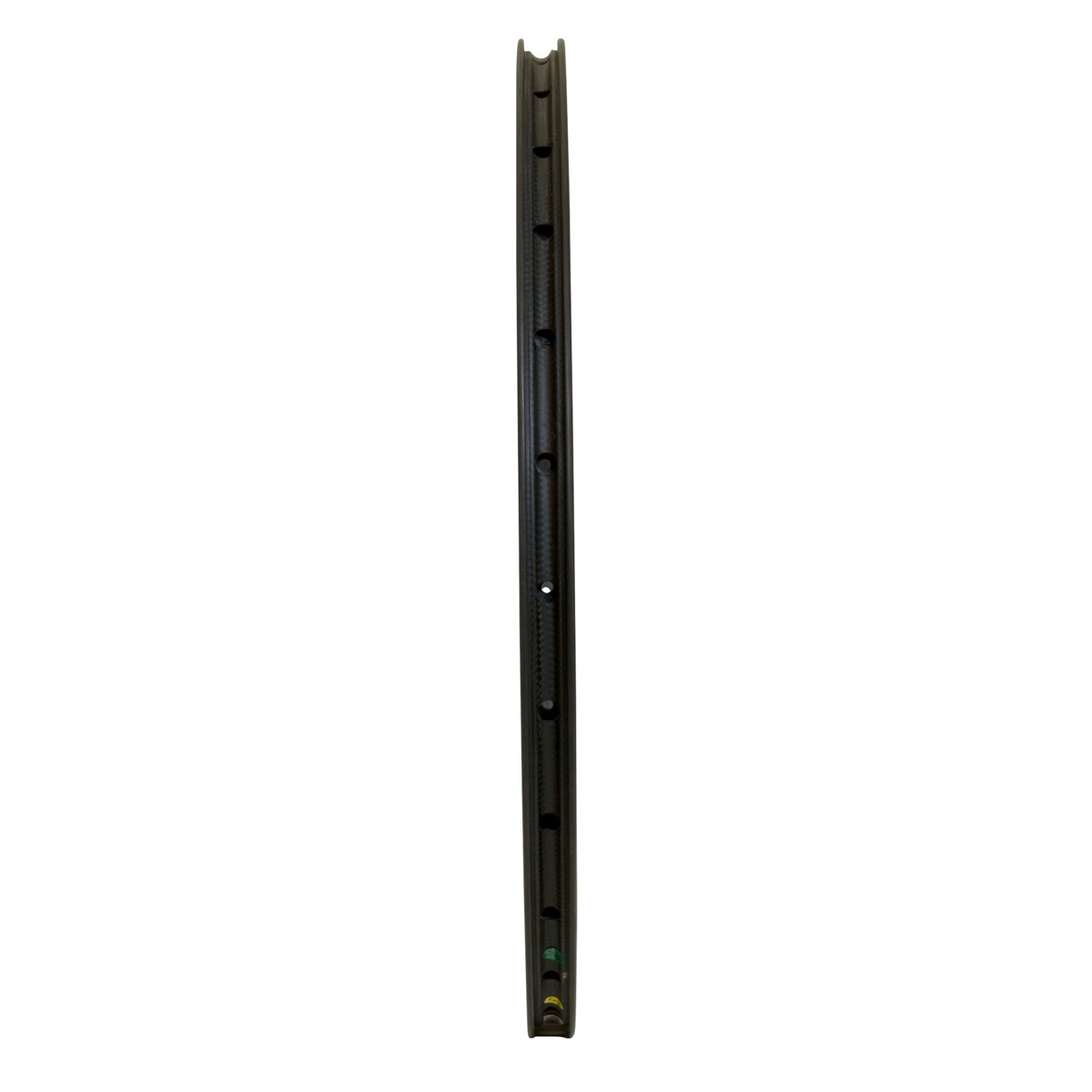

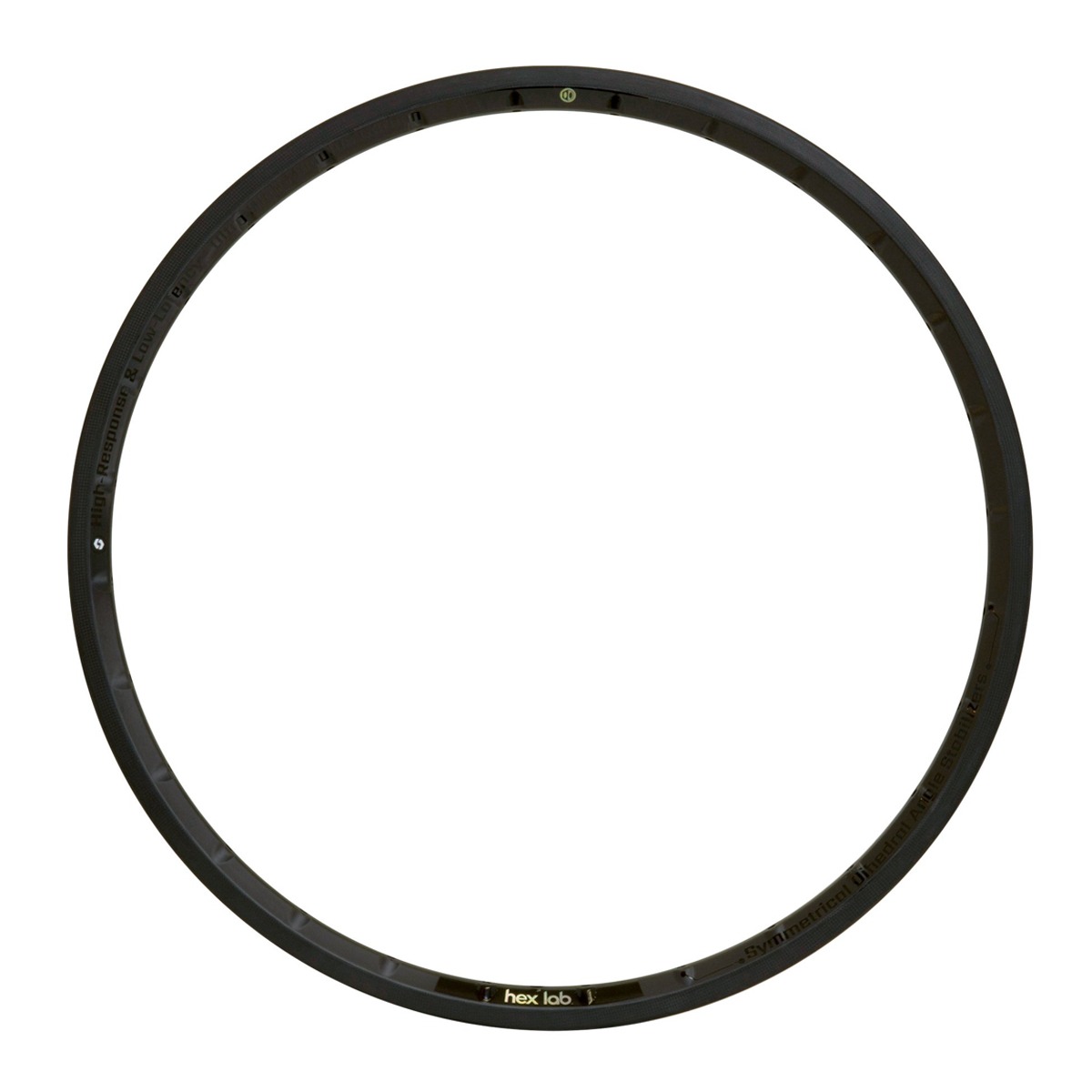

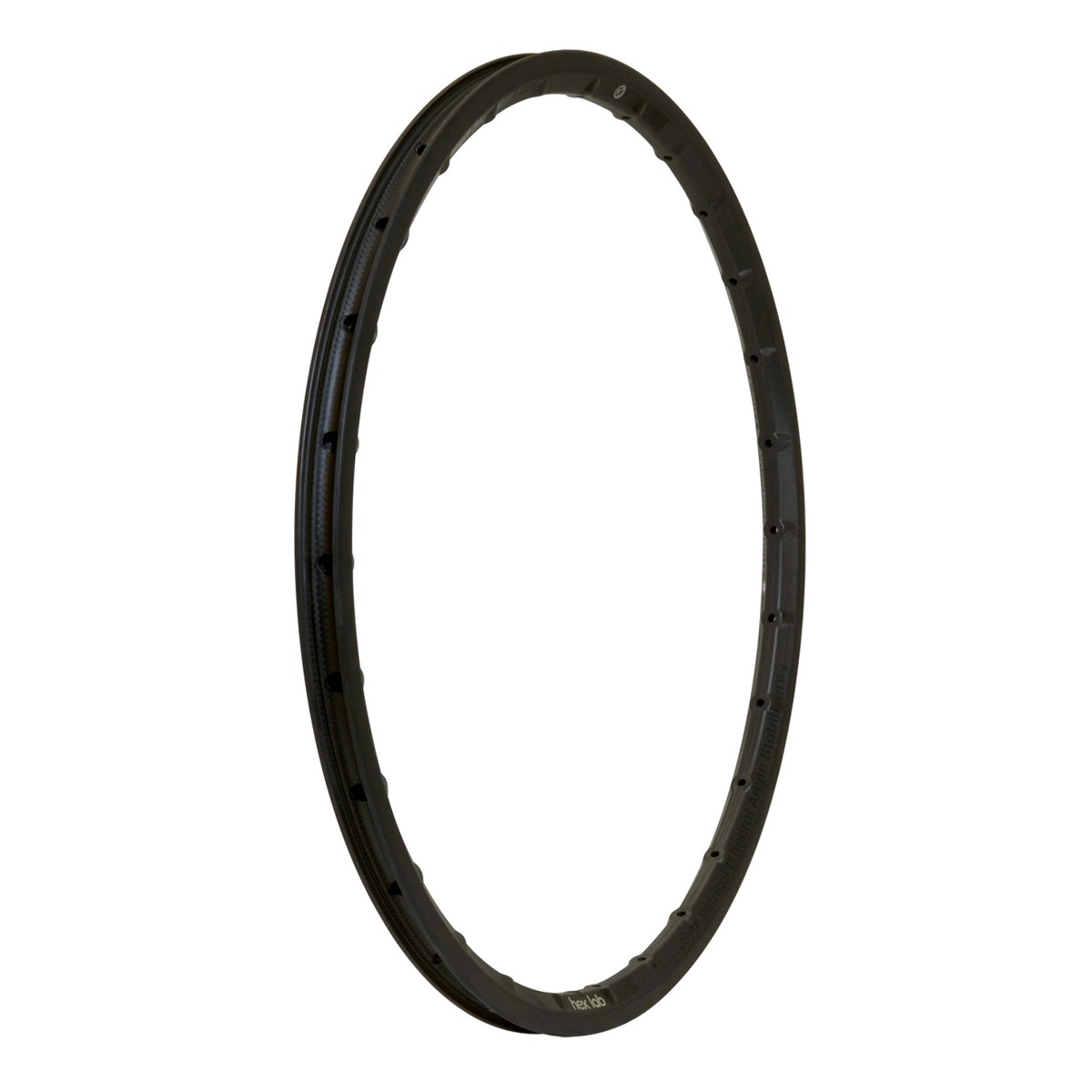

BOX Hex Lab front rim 20"x1-1/8" 28H

Specifically designed for BMX Race with Oversize technology, BOX Hex Lab carbon rims are built from ultra high modulus carbon fiber, more rigid than other carbon fibers. They feature sculpted, bullet-shaped stabilizer reinforcements for each spoke piercing designed to bridge the angle between the rim's sloping flanks and the vertical plane. With a medium height profile, they have 2 different types of rim for the front or for the rear depending on the type of braking used and with large internal dimensions for compatibility with tubeless configurations.

FEATURES :
• Ultra High Modulus Carbon Fiber rim
• Symmetrical Dihedral Angle Stabilizers
• Dimensions: 451xmm (20"x1-1/8"-1-3/8")
• Front profile without braking surface
• Tubeless Ready
• Width: NC
• Height: NC
• ERD: 427
• Drilling: 28 holes
• Valve: Presta F/V
• Weight: 299g

NOT COMPATIBLE FOR V-BRAKE
Recommended spoke tension: ≤115KGF

More details

409,99 € Tax incl.

Recommended retail price : 409,99 € TTC

BOX

Availability:

Buy in local shop

Reference Bar Code Colors Unit price Avail. Quantity
BOXRIMS071 616043834450 Black
409,99 €

Tubeless Ready System : BOX Hex Lab rims feature a Bead Lock System, needed for the rim to be Tubeless Ready. With the installation of additional items needed you can get the rim ready for tubeless set up, along with the usage of a tubeless specific tire. With a tubeless set up, you can lighten up your wheels, saveing rotational weight, as well as have a sealant inside your tubeless ready tire to help automatically repair small punctures. Additional items needed to convert to a Tubeless system include Special Valve, Sealant Rim Tape, and Liquid sealer.

YOU MIGHT ALSO LIKE

FEATURES

Materials Carbon
Sizes 20 x 1-3/8″
Wheel types Front
Spokes 28
Wheel Diameter 451
Brake surface Without
Tire Types Tubeless ready
