The POSITION ONE Race were specially created to introduce beginners to BMX Race thanks to a range of studied geometry, thus offering you the best value for money in an entry-level BMX. Equipped with a 6061 aluminum frame with integrated steering, it is equipped with a chromoly fork and handlebars, a 3-piece crankset, double-wall rims, V-Brake braking and ARISUN XLR8 tires.
FEATURES :
RECOMMENDED SIZE: 1m52 - 1m72
WEIGHT: 9.5 Kg without pedal
Atención: últimos productos disponibles!
SPECIFICATIONS :
FRAME
|
Pro 20.5" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals |
FORK
|
Full Cr-mo, 1-1/8" Steer Tube |
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
HANDLEBAR
|
Cr-mo 7.5" Rise, Diameter 22.2mm, 27" Wide, 11° Back Sweep & 3.5° Up Sweep |
GRIPS
|
Single Ply 130mm Flangeless |
STEM
|
53mm 6061 T6 Alloy Top Load |
BB
|
Euro Square 118mm Sealed Bearing |
CHAINRING
|
Steel 43 teeth 4 Bolts BCD 104mm |
CRANK
|
3 Pieces Crank 175mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts |
PEDAL
|
Platform Nylon 9/16" |
CHAIN
|
KMC Z33 1/2"x3/32" |
FREEWHEEL
|
16 Tooth 1/2"x3/32" |
FRONT HUB
|
36H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
REAR HUB
|
36H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
SPOKES
|
Front 181mm, Rear 179mm, 14 Gauge, Steel |
NIPPLES
|
16mm, 14 Gauge, Brass |
RIMS
|
Double Wall Alloy 36H 1.75" Schrader Valve |
TIRES
|
ARISUN XLR8 20"x1.95" front - 20"x1.75" rear |
TUBES
|
20"x1.50"-1.75" Schrader Valve |

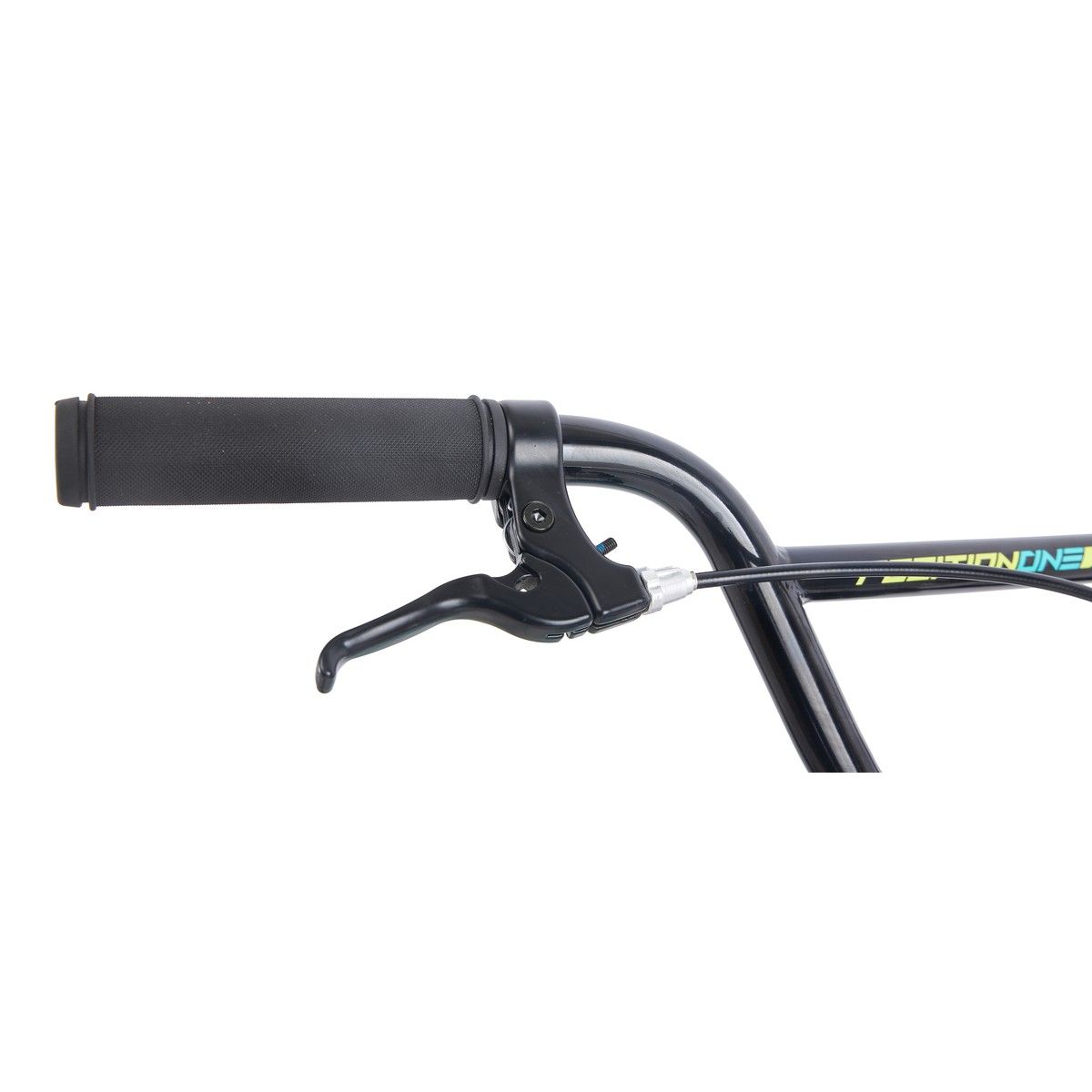

BRAKE LEVER
|
Alloy Pro |
BRAKE CALIPER
|
V-Brake 103mm |
SADDLE
|
Expert/Pro Combo Padded, 27.2mm Alloy Post |
SEAT CLAMP
|
31.8mm Alloy 1 Bolt |

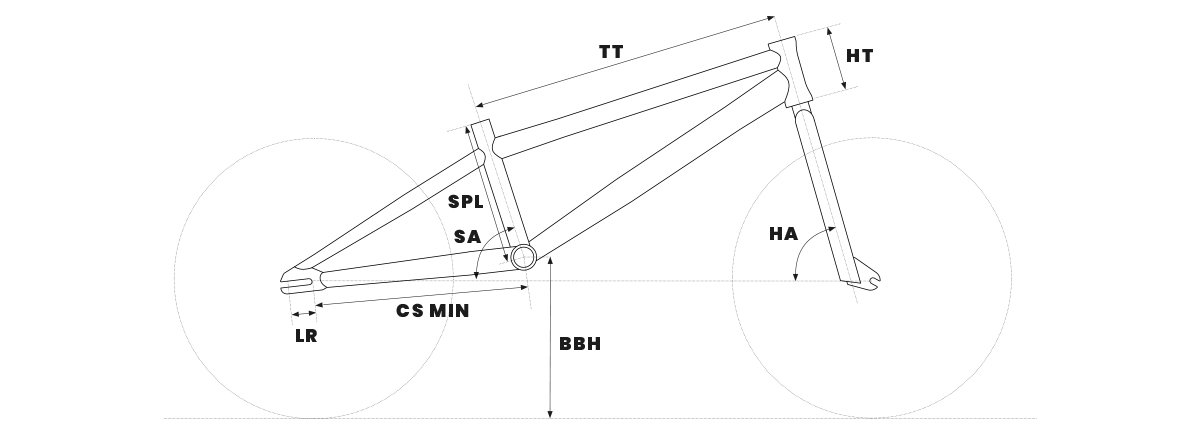

GEOMETRIES :
Sizes | TT | CS min | LR | HA | SA | HT | SPL | BBH | Wheels |
Micro | 16.15" 410.2 mm |
10.85" 275.6 mm |
1.8" 46 mm |
71° | 69° | 4" 100 mm |
8" 203.2 mm |
9.1" 231.1 mm |
18x1" |
Mini | 17.25" 438.1 mm |
12.5" 317.5 mm |
1.8" 46 mm |
72° | 70° | 4" 100 mm |
8.65" 219.7 mm |
10.6" 269.2 mm |
20x1-1/8" |
Junior | 19" 482.6 mm |
13" 330.2 mm |
1.8" 46 mm |
73° | 72° | 4" 100 mm |
8.75" 222.2 mm |
10.6" 269.2 mm |
20x1-1/8" |
Expert | 19.75" 501.6 mm |
13.25" 336.5 mm |
1.8" 46 mm |
74° | 72° | 4" 100 mm |
8.75" 222.25 mm |
11" 279.4 mm |
20x1-3/8" |
Pro | 20.5" 520.7 mm |
14.25" 361.95 mm |
1.8" 46 mm |
74° | 72° | 4.33" 110 mm |
9.25" 234.95 mm |
11" 279.4 mm |
20x1.75" |
Tamaños | Pro |
Tallas del piloto | 1m52 - 1m66 |
Tamaños | 20" |
Tipo de frenos | V-Brake |
Tipos de bici | Race |
