CHASE ELEMENT PRO CRUISER

Chase has been pushing the boundaries with their complete bikes for 11 years and the latest edition of the Element, Element 10, is the best version yet.

FRAME: Chase Element Pro Cruiser 21.5" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 50mm
HANDLEBAR: Chase Element 31.8mm 5.75"
CHAINRING: Insight 41T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 18T cog
RIMS: Sun Ringlé Envy Rims 24×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 24×1.75" Front & Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
PEDALS: Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

WEIGHT: 9.85 KG WITH PEDALS
RIDER SIZE: 1M68 – 1M85

SIZES CHART

Más detalles

1 399,00 € Impuestos incl.

Precio de venta al público recomendado: 1 399,00 € TTC

Cantidad

Colores

Referencia

Disponibilidad:

Comprar en tiendas

Referencia	Código de barras	Colores	Precio unitario	Disponible	Cantidad
CHACOBI224	764333098881		1 399,00 €
CHACOBI225	764333098898		1 399,00 €

SPECIFICATIONS :

FRAME

Chase Element Pro Cruiser 21.5" Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8", Close Drop Out

FORK

Ikon Pro 24" Carbon, Alloy 1-1/8" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap

HEADSET

Integrated IS 42/42 1-1/8", Sealed Bearing

HANDLEBAR

Chase Element Cromo 5.75", Diameter 31.8mm Rise, 28.5" Wide, 10° Back Sweep & 2° Up Sweep

GRIPS

Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug

STEM

Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo

Press Fit 68/73mm Cartridge Bearings

CHAINRING

Insight 41 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring

CRANK

Excess LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts

PEDAL

Nylon Platform 9/16" axle

CHAIN

KMC Z1 narrow 1/2"x3/32"

COG

18 Tooth

FRONT HUB

CHASE Element, 10mm Axle, 36H, Sealed Bearing

REAR HUB

CHASE Element ISO, 10mm Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets

SPOKES

Front 236mm, Rear 231mm, 14 Gauge, Steel

NIPPLES

Brass 14Gx5/8"

RIMS

Sun Rims Alloy Envy Front 36H 24"x1.75" No Brake Surface Schrader Valve

FRONT TIRE

Tioga Fastr X 24"x1.75" 60 TPI Wire Bead

REAR TIRE

Tioga Fastr X 24"x1.75" 60 TPI Wire Bead

TUBES

24''x1.5"-1.75" Schrader Valve

BRAKES

Tektro HD-M280 Hydraulic, Resin Pads, 120mm Rotor

SADDLE

ELEVN PC Pivotal

SEAT POST

CHASE Aero Pivotal 27.2x260mm Alloy

SEAT CLAMP

Chase Aero QR Alloy 31.8mm

CHAIN TENSIONNER

Integrated Built-In With New Lock Disc Adaptor

Mounting with Shimano XT pedals are for photographic purposes only. The bikes come with nylon platform pedals.

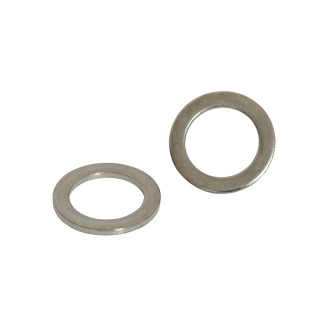

IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.

GEOMETRIES :

SIZES	TT	CS min	LR	HA	SA	HT	SPL	BBH	WB	Wheels
Expert	20" 508 mm	13.5" 342.9 mm	1.5" 38.1 mm	73°	70°	4.7" 120 mm	9.2" 236 mm	11" 279.4 mm	900.68 mm	20x1-3/8"
Pro	20.5" 520.7 mm	14.25" 362 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	940.46 mm	20x1.5"
Pro XL	21" 533.4 mm	14.3" 363.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	955.10 mm	20x1.75"
Pro XXL	21.5" 546.1 mm	14.5" 368.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	973.39 mm	20x1.75"
Pro XXXL	22" 558.8 mm	14.5" 368.3 mm	1.5" 38.1 mm	74°	72.5°	4.7" 120 mm	9.2" 236 mm	11.5" 292.1 mm	993.01 mm	20x1.75"
Pro Cruiser	21.5" 546.1 mm	15.25" 387.3 mm	1.5" 38.1 mm	73°	69.5°	4.7" 120 mm	9.8" 250 mm	12" 304.8 mm	973.65 mm	24x1.75"
Pro+ Cruiser	22" 558.8 mm	15.25" 387.3 mm	1.5" 38.1 mm	73°	69.5°	4.7" 120 mm	9.8" 250 mm	12" 304.8 mm	987.67 mm	24x1.75"

Complete Bike specs are subject to change throughout the 2023 model year due to parts upgrades or parts shortages and changes that are made out through our production cycle to improve the quality of the complete bikes. Photo & listed Specs may slightly differer due to this.
