Nuevo

CHASE EDGE EXPERT 2025

La nueva CHASE Edge es una máquina de BMX lista para competir, ideal para ciclistas que estén listos para tomarse en serio las carreras de BMX y llevarlas al siguiente nivel.
Justo cuando no creías que fuera posible, la nueva Edge ha sido mejorada, ya que ahora está equipada con frenos de disco hidráulicos Shimano (talla Junior y superior), bielas de aleación Chase de 24 mm de 2 piezas (Expert XL y superior), tamaños de bielas y engranajes actualizados, un diseño de pintura y gráficos de 2 tonos y un sistema de puntera trasera cerrada con sistema tensor de cadena integrado. El cuadro de la Edge también cuenta con tubos de aluminio 6061 hidroformados de triple conificado con un tubo de dirección integrado. Otras piezas destacadas de la Edge incluyen horquilla y manillar de cromoly 4130, llantas de doble pared con buje trasero de cassette de triple enganche y neumáticos TIOGA. La combinación de todos estos componentes posiblemente haga de la CHASE Edge una de las bicicletas de BMX de carrera más avanzadas disponibles en la actualidad.

FRAME: CHASE Edge Expert 19.75″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: CHASE Edge Expert, Full Cr-mo, 1-1/8″ Steer Tube
STEM: CHASE Edge 50mm
HANDLEBAR: CHASE Edge 5.75″
HEADSET: Integrated Sealed Bearing
CHAINRING: INSIGHT 40T 5 Bolts BCD 110mm
CRANKSET: CHASE Edge Alloy 160mm, 113mm squared axle BB
HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
RIMS: CHASE Edge 138 Double Wall 20″x1-3/8″, 28H Front and Rear
TIRES: TIOGA PowerBlock 20″x1-3/8″ Front and Rear

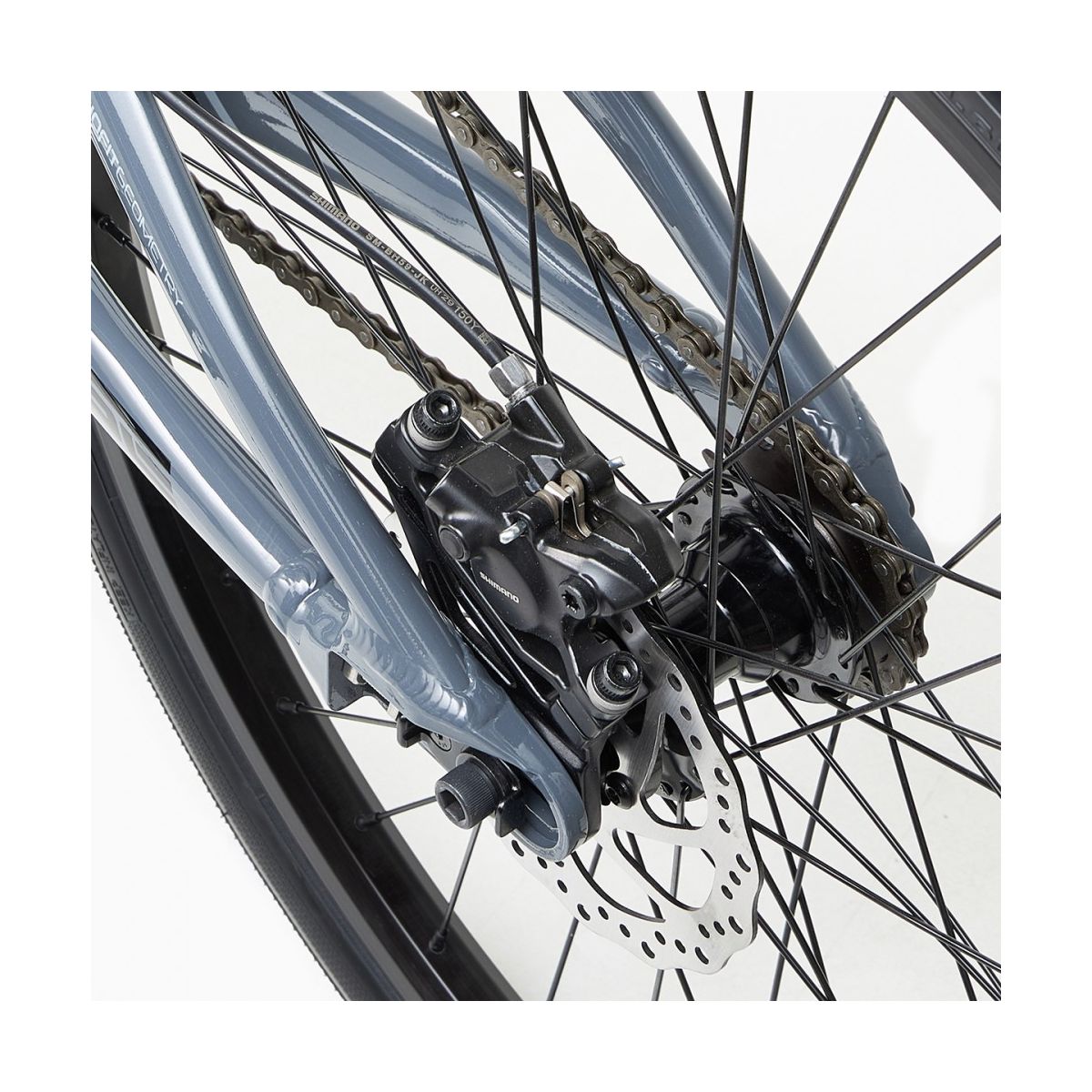

BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
SEAT: CHASE Edge Pro Pivotal

RECOMMENDED SIZE: 1m32 – 1m46
WEIGHT: 8.47Kg without pedal

SIZES CHART

Más detalles

739,99 € Impuestos incl.

Precio de venta al público recomendado: 739,99 € TTC

Cantidad

Colores

Referencia

Disponibilidad:

Comprar en tiendas

Referencia	Código de barras	Colores	Precio unitario	Disponible	Cantidad
CHACOBI235	764333099918		739,99 €
CHACOBI234	764333099901		739,99 €

SPECIFICATIONS :

FRAME	CHASE Edge Expert 19.75" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system
FORK	CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades
HEADSET	Integrated IS 42/42 1-1/8", Sealed Bearing
HANDLEBAR	Chase Edge Cr-mo 5.75" Rise, 25.5" Wide, 8° Back Sweep & 2° Up Sweep
GRIPS	INSIGHT C.O.G.S 130mm Lock-on
STEM	CHASE Edge 50mm 6061 T6 Alloy
BB	Euro Square 113mm Sealed Bearing
CHAINRING	Insight 40 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Alloy Ring
CRANK	CHASE Edge 3 Piece Crank 160mm Alloy Arm, Cr-mo Chainring Bolts
PEDAL	Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing
CHAIN	KMC Z1 narrow 1/2"x3/32"
COG	16T steel
FRONT HUB	Mini 28H, Sealed Bearing, 10mm Axle, M6 bolts
REAR HUB	Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES	Front 206mm, Rear 198/199mm, 14 Gauge, Steel
NIPPLES	16mm, 14 Gauge, Brass
FRONT RIM	Chase Edge Alloy 138 Double Wall 28H 20"x1-3/8" Schrader Valve
REAR RIM	Chase Edge Alloy 138 Double Wall 28H 20"x1-3/8" Schrader Valve
FRONT TIRE	TIOGA PowerBlock 20"x1.60" Wire Bead
REAR TIRE	TIOGA PowerBlock 24"x1.40" Wire Bead
TUBES	20''x1-3/8" Schrader Valve
BRAKE LEVER	Shimano Disc Brake BL-MT200(R) Hydraulic
BRAKE CALIPER	Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor
SADDLE	Pro Pivotal
SEAT POST	Pivotal 25.4x200mm Polished Alloy
SEAT CLAMP	Chase Edge QR Alloy 28.6mm
CHAIN TENSIONNER	Integrated Built-In With New Lock Disc Adaptor

GEOMETRIES :

Sizes	TT	CS min	LR	HA	SA	HT	SPL	BBH	WB	Wheels
Micro	16.25" 412.75 mm	10.85" 275.6 mm	1.8" 46 mm	71°	69°	4" 100 mm	8" 203.5 mm	10.25" 254 mm	732 mm	18x1"
Mini	17.25" 438.15 mm	12.25" 312 mm	1.8" 46 mm	72°	70°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	800 mm	20x1-1/8"
Junior	18.75" 476.25 mm	12.5" 317.5 mm	1.8" 46 mm	73°	72°	4.33" 110 mm	8.8" 225 mm	10.6" 269.2 mm	859.9 mm	20x1-1/8"
Expert	19.75" 501.65 mm	13" 330.2 mm	1.8" 46 mm	73°	72°	4.33" 110 mm	8.8" 225 mm	11" 279.4 mm	883.8 mm	20x1-3/8"
Expert XL	20" 508 mm	13.5" 353 mm	1.8" 46 mm	73°	72°	4.7" 120 mm	8.8" 225 mm	11.5" 292.1 mm	903 mm	20x1.50"
Pro	20.5" 520.7 mm	14" 355.6 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.4" 238 mm	11" 279.4 mm	938 mm	20x1.75"
Pro XL	21" 533.4 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	945.2 mm	20x1.75"
Pro XXL	21.5" 546.1 mm	14.15" 359.4 mm	1.8" 46 mm	74°	72°	4.7" 120 mm	9.3" 238 mm	11.5" 292.1 mm	969.5 mm	20x1.75"
Cruiser	21.5" 546.1 mm	14.5" 368.3 mm	1.8" 46 mm	74°	71°	4.7" 120 mm	10.6" 270 mm	12" 304.8 mm	964.5 mm	24x1.75"

Complete Bike specs are subject to change throughout the year due to parts upgrades or parts shortages and changes that are made out through our production cycle to improve the quality of the complete bikes. Photo & listed Specs may slightly differer due to this.
